counterclockwise will move the cursor upwards. When a value is selected by pressing the “ENTER” button, turn the
knob clockwise to increase and counterclockwise to decrease the value.
When in the HOME screen, move the cursor to the “MENU” icon on top of the main screen and press “ENTER” to
access the menu screen.
In the menu screen, moving the cursor to the icon and pressing the “ENTER” button will enter the next menu
screen. Move the cursor to the icon and press the “ENTER” button to go back to the previous menu screen.
Move the cursor to icon and press “ENTER” to go back to the HOME screen.

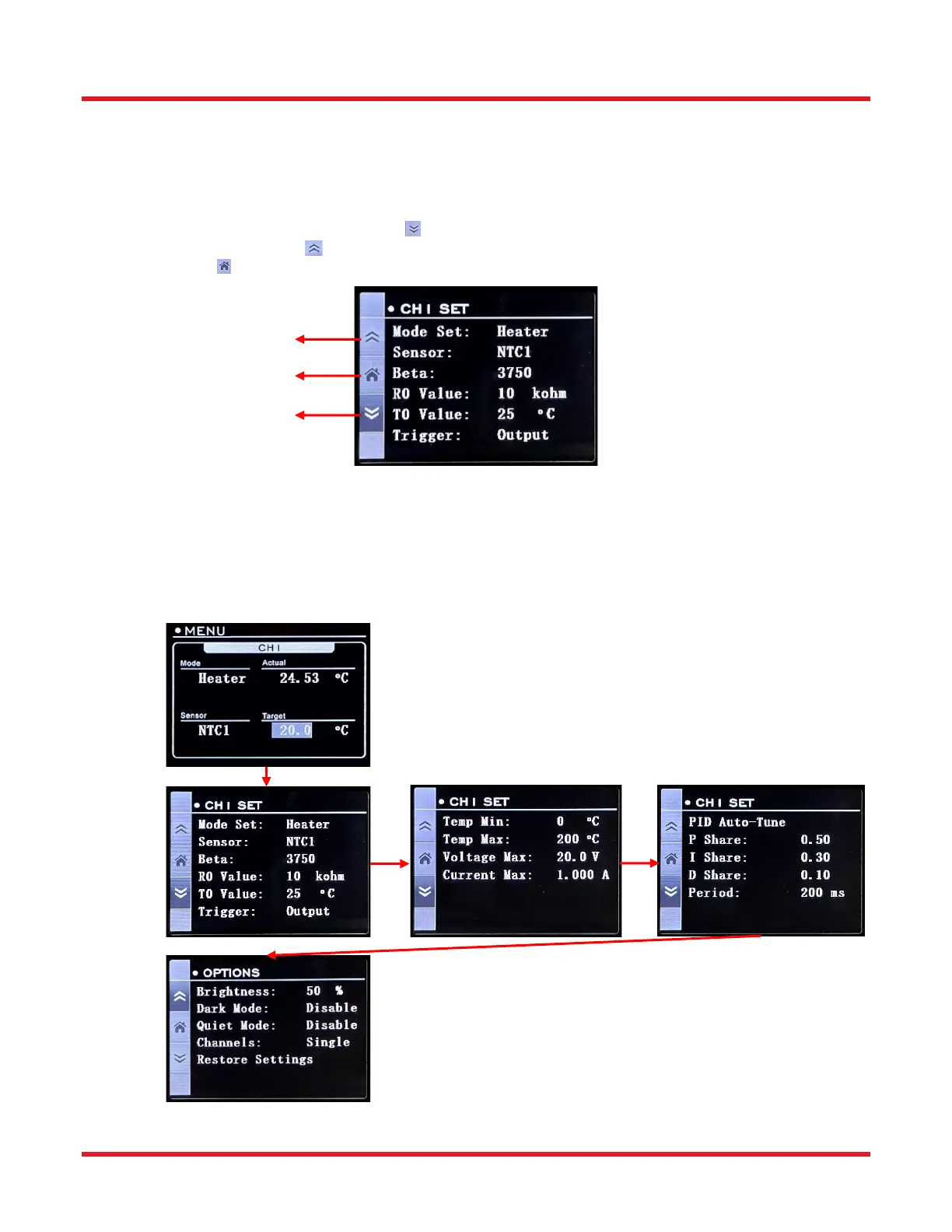

Figure 12 Menu Screen
5.6. Menu Structure
The TC300 is set to single channel operation by default. When in single channel operation, only the parameters of
Channel 1 will be displayed on the HOME screen and only the settings of Channel 1 will be visible in the menus. In
the menus, there are three screens for setting the parameters of Channel 1 and one screen for making general
optional settings of the device.
Figure 13 Menu Structure in Single Channel Operation
Go to next Screen
Back to Last Screen
Go to HOME Screen
Main Screen
Menu: Options
Menu:
CH1 Settings
To Next Page
Loading...
Need help?
General
