TC300 Heater Temperature Controller Chapter 5: Getting Started
Rev B, January 5, 2022 Page 11
When in dual channel operation, the parameters of both Channel 1 and Channel 2 will be displayed on the HOME
screen. Settings of both channels will be visible in the menus. For each channel, there are 3 screens for setting
parameters. There is one screen for making general optional settings of the device.
To enable the operation and setting of Channel 2, please see Chapter 6.7 for more details.

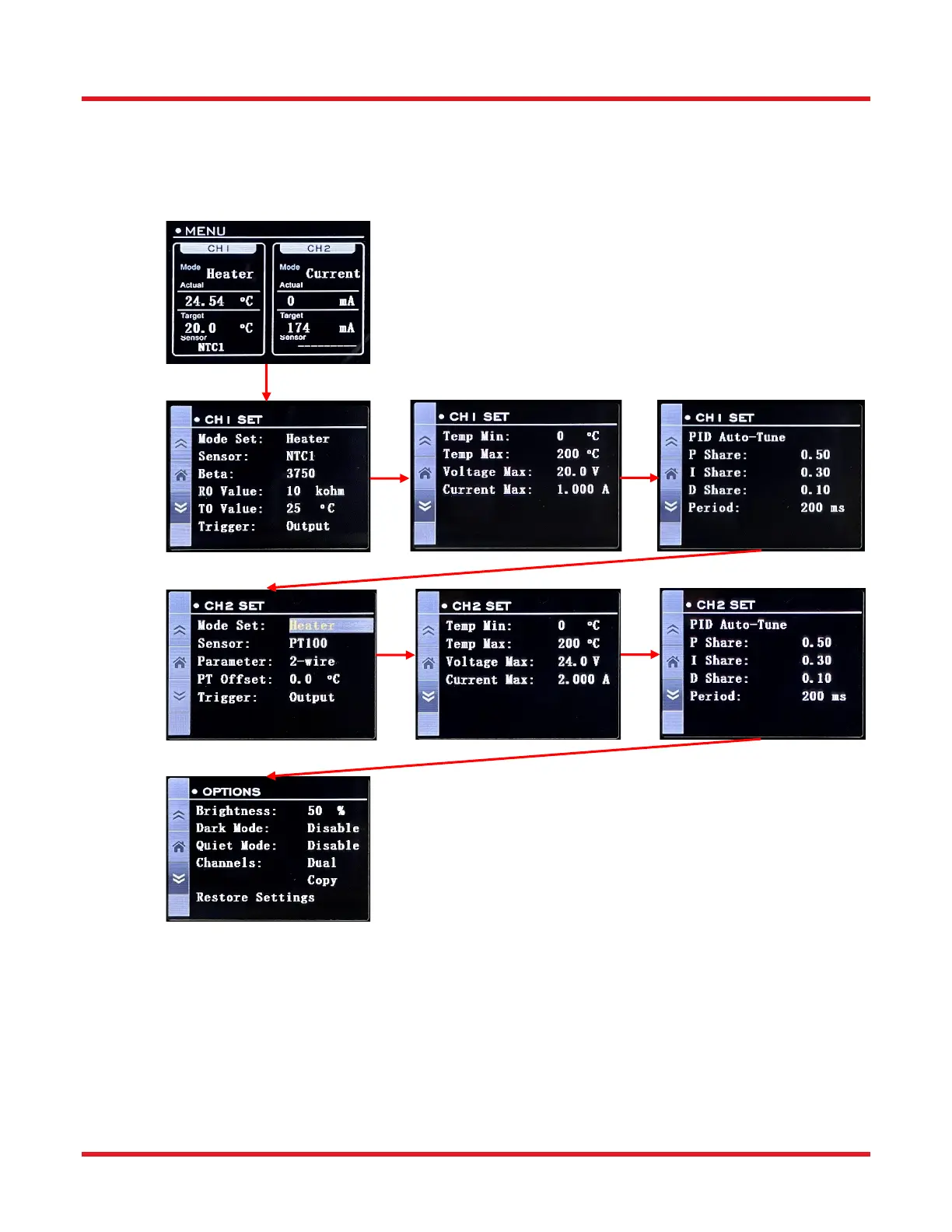

Figure 14 Menu Structure in Dual Channel Operation
5.7. Compatible Thorlabs Devices
The Thorlabs devices listed are compatible with TC300. Since they are all equipped with the corresponding 6-pin
Hirose connector, they support plug-and-play operation with the TC300, with no extra wiring required.
GCH25-75, Heater Assembly for Ø9, Ø19, or Ø25 mm x 75 mm Glass Cells
TLK-H, Flexible Polyimide Foil Heater with 10 kΩ Thermistor and 6 Pin Hirose Connector
SM1L10HR, Temperature-Controlled SM1 Lens Tube
LCC1xxxT, Temperature-Stabilized Full-Wave and Half-Wave LC Retarders
Main Screen
Menu: Options
Menu:
CH1: Settings
Menu:
CH2: Settings
To Next Page
