NV10P - Manual - 01 - 2015
INSTALLATION

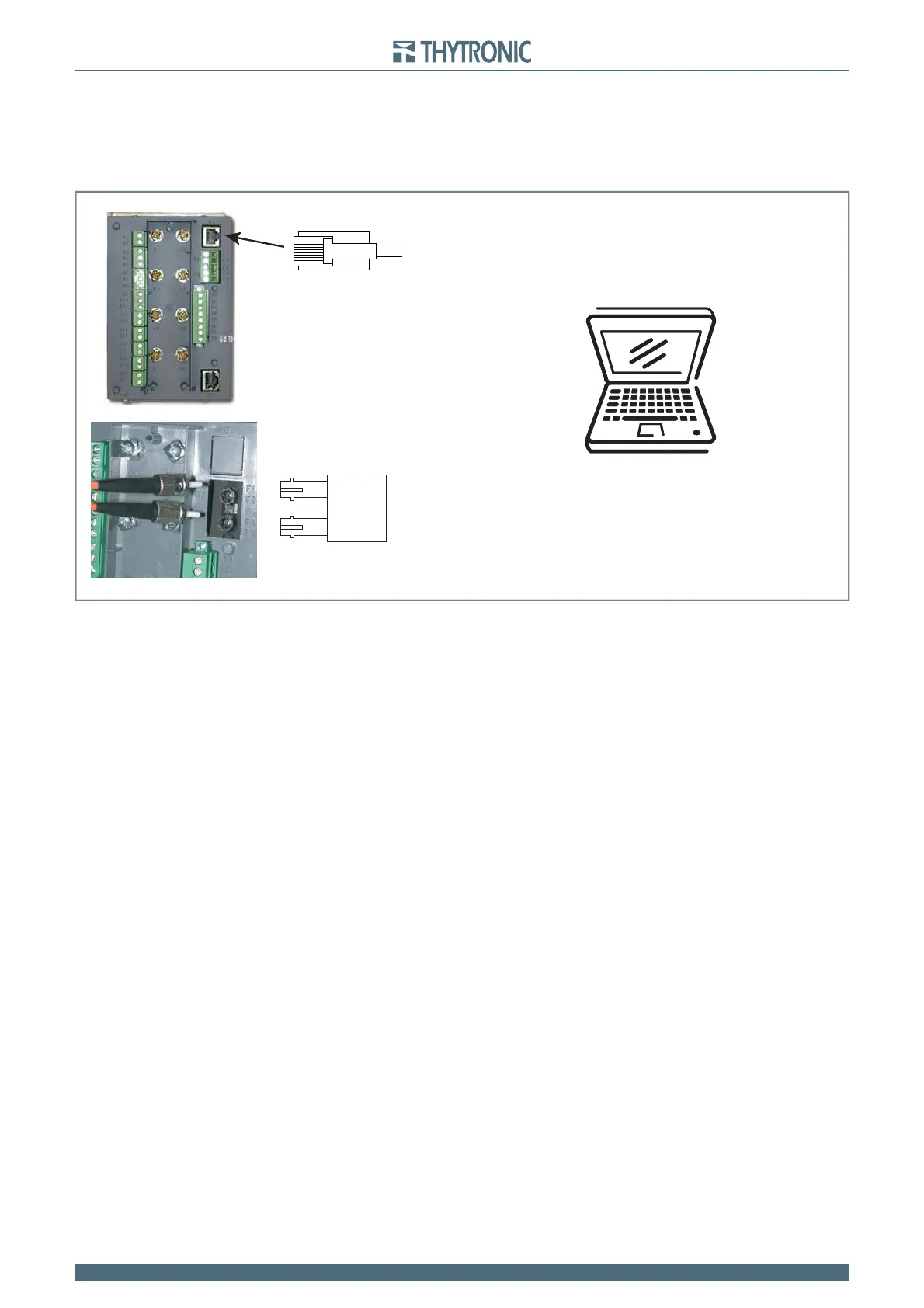

Ethernet port
One RJ45 (copper) or FX (optics fi ber) port may be provided.
Connections to the TX (RJ45) port must be made with shielded cable FTP Cat.5e category or higher.
For testing a PC may be directly connect to the Ethernet port (D1) on the rear side.
With TX interface a cross cable must be employed, while an Ethernet-optical fi ber converter, suit-
able for 100 Mb data rate must be employed if an FX port is implemented.
The link must be enabled by means ThySetter sw and RS232 connection:
Set the IP address (Host IP address e IP net mask) in order that the NA10 and PC parameters
are matched; the parameters are inside the Communication \ Ethernet submenu.
Set to OFF the Autonegotiation parameter of NA10 device (Autonegotiation parameter inside
Communication \ Ethernet submenu).
For security reasons, a change of the Ethernet communication parameters become active only after
an hw reset.
•
•
ethernet-wiring.ai
shielded cable - FTP Cat.5e
multimodal optical fiber
TX connector (RJ45 copper)
FX connector (optical fiber)
RX
TX
ethernet-wiring.ai
shielded cable - FTP Cat.5e
multimodal optical fiber
TX connector (RJ45 copper)
FX connector (optical fiber)
RX
TX
