SAWMILL ASSEMBLY
Saw Head Installation
3
3-18 15doc110819 SAWMILL ASSEMBLY

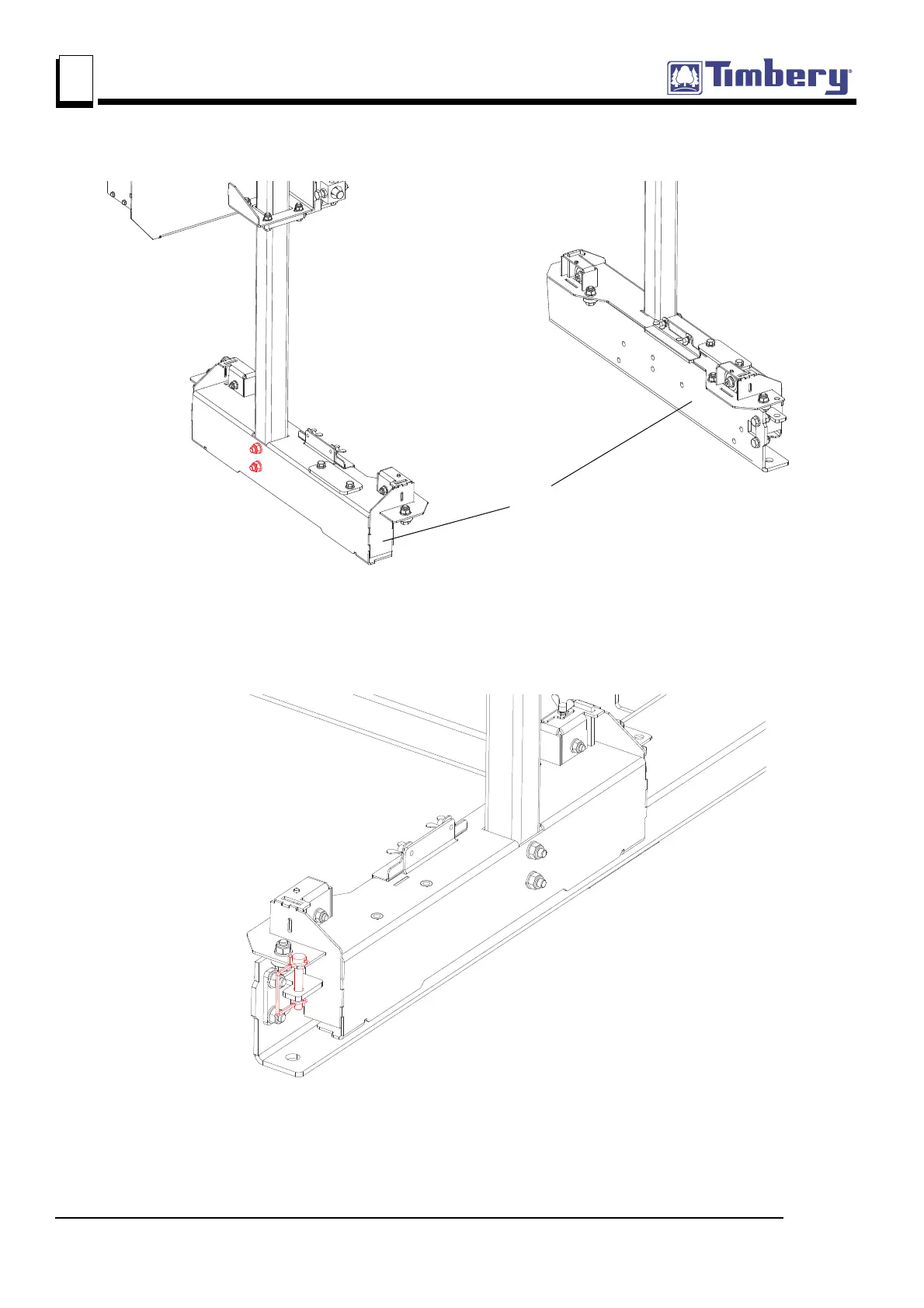

4. Slide the mast uprights into the mast carriages and secure with the fasteners as shown below.
5. Using lifting equipment, place the saw head with the mast on the sawmill bed. Make sure the track
rollers ride smoothly on the track rail. Then position the saw head at the front of the bed to secure it
with a locking pin that will prevent accidental saw head movement.
