14. USING THE SUMMING OUTPUT
It is possible to mix signals of L and R channels provided at to the STEREO INPUT 1 and STEREO INPUT 2,
and output the mixed signals to the OUTPUT 1 and OUTPUT 2.
Note: Mixing signals of the L and R channels are always output to the OUTPUT 3 and OUTPUT 4.

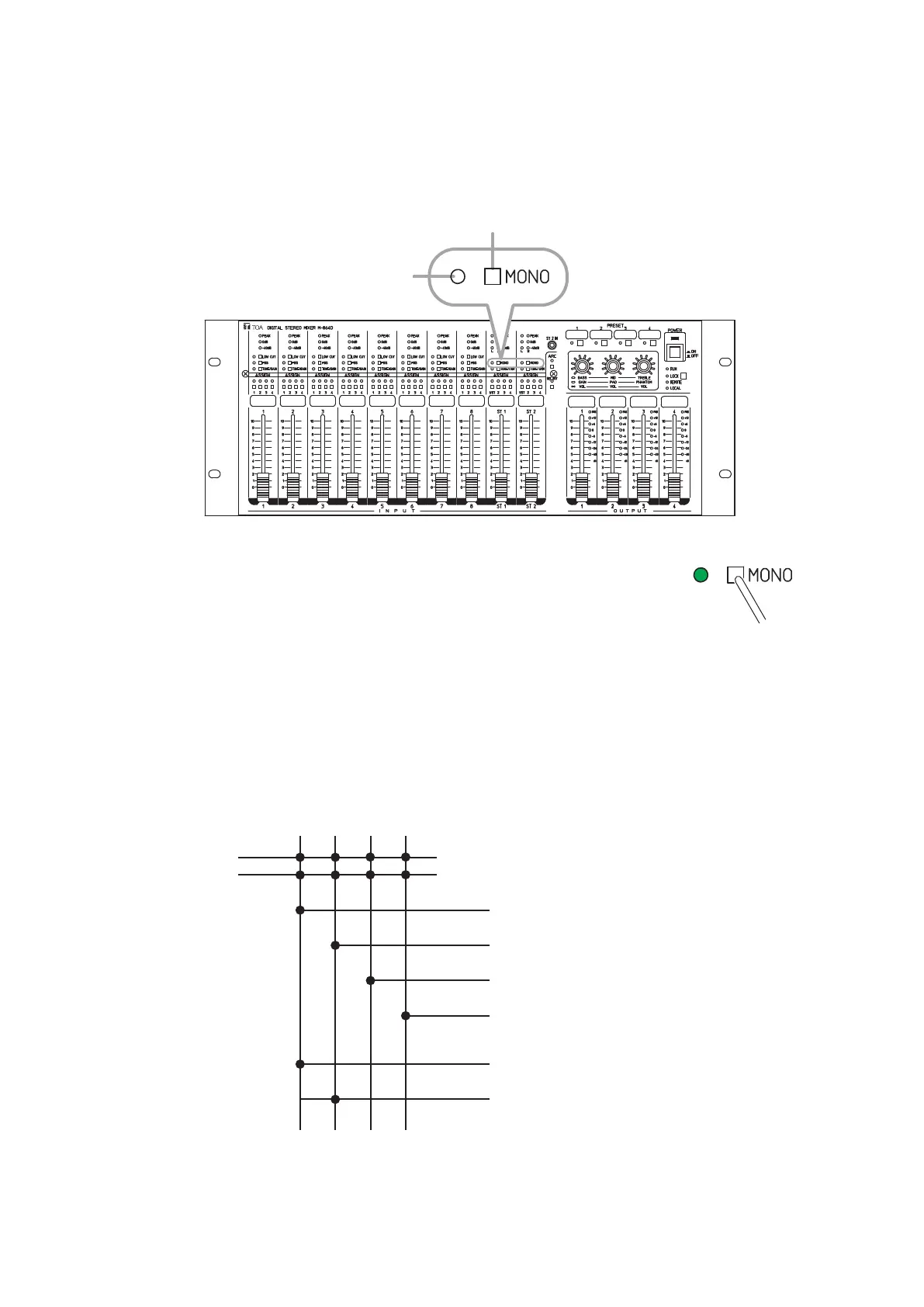

Monaural summing switch
Monaural summing indicator
M-864D
Lit
When the indicator lights by pressing the Monaural summing switch, summing
output(Mono/MIX)isprovided.
Note
Useane-tippedobjecttopress
in Monaural summing switch.
ThegurebelowshowsasignalowwhenalltheAssignmentswitches1through4oftheSTEREOINPUT1
are turned to ON.
Assignment switch
Input
STEREO INPUT 1
L
R
OUTPUT 1
(Outputs the mixed L+R signals of STEREO INPUT 1)
OUTPUT 2
(Outputs the mixed L+R signals of STEREO INPUT 1)
Set the REC OUT assignment using the supplied M-864D PC Software.
The REC OUT default assignment is as follows.
REC OUT L: Assignment switch 1
REC OUT R: Assignment switch 2
*
REC OUT R*
(Outputs the mixed L+R signals of STEREO INPUT 1)
REC OUT L*
(Outputs the mixed L+R signals of STEREO INPUT 1)
OUTPUT 3
(Outputs the mixed L+R signals of STEREO INPUT 1)
OUTPUT 4
(Outputs the mixed L+R signals of STEREO INPUT 1)
1 2 3 4
