23.2. Removable Terminal Plug Connection
Notes
• Avoidsolderingstrandedorshieldedcable,ascontactresistancemayincreasewhenthecableistightened
and the solder is crushed, possibly resulting in an excessive rise in joint temperatures.
• Whenconnecting2cablesorashieldedcabletoasingleterminal,useaferruleterminalwithaninsulation
sleeve to crimp the cables because such cable conductors could become loose.

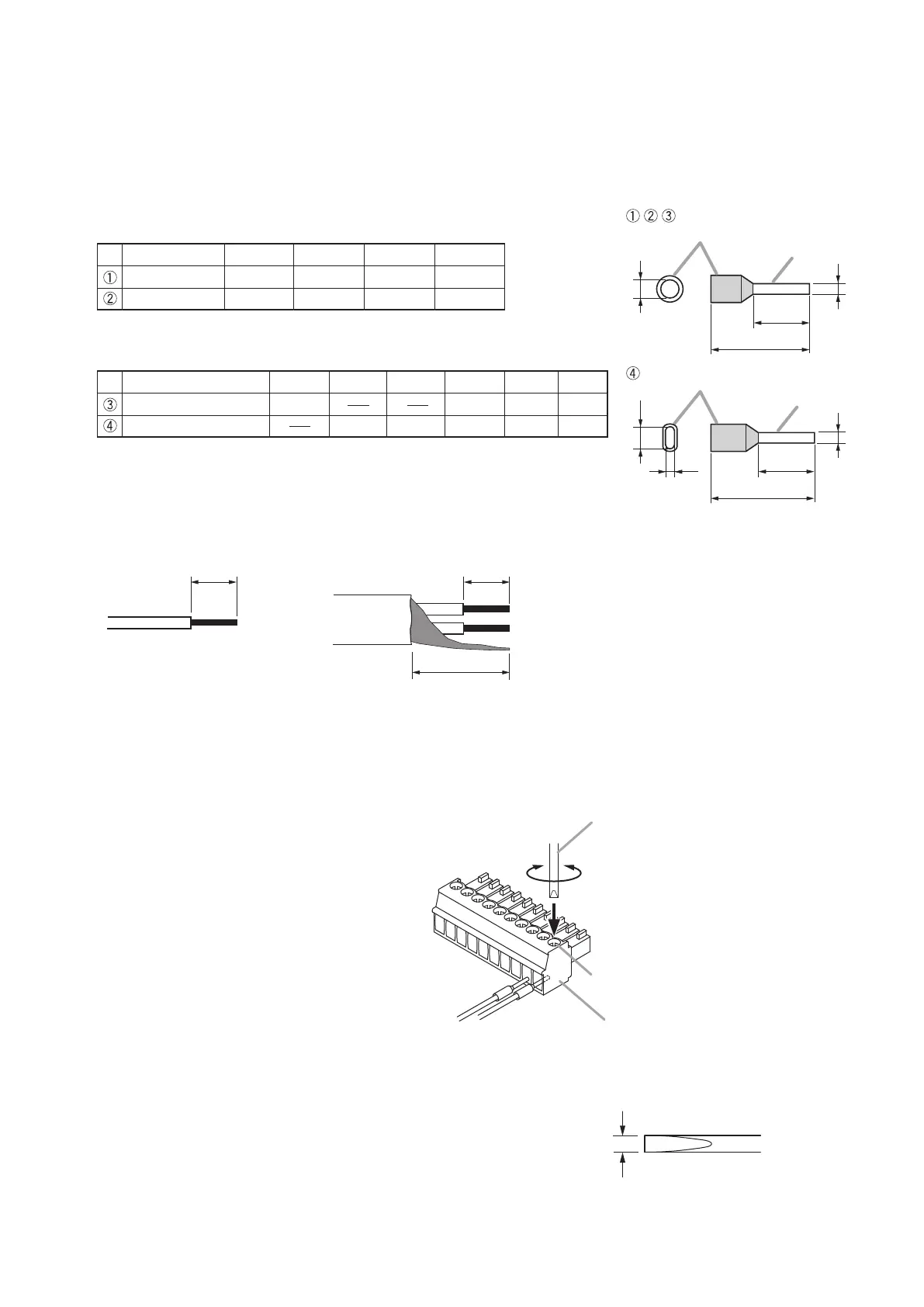

Recommended ferrule terminals for signal cables
(made by Phoenix Contact)
Recommended ferrule terminals for power supply
cables (made by Phoenix Contact)
Crimping tool: CRIMPFOX UD6-4 (made by Phoenix Contact)
Cable sheath to trim
Model Number a l
1
l
2
AI 0,34-8 TQ
AI 0,5-8 WH
2 (0.08)
Unit: mm (in)
2.5 (0.1)
12.5 (0.49)
14 (0.55)
8 (0.31)
8 (0.31)
b
0.8 (0.03)
1.1 (0.04)
Model Number a
1
l
1
l
2
AI 1,5-8 BK
AI-TWIN 2x1,5-8 BK
6.6 (0.26)
a
2
3.6 (0.14)
14 (0.55)
16 (0.63)2.3 (0.09)
8 (0.31)
8 (0.31)
a
3.4 (0.31)
Unit: mm (in)
b
1.8 (0.07)
Insulation sleeve
Contact section
Insulation sleeve
Contact section
a
l
2
a
1
a
2
l
1
l
2
l
1
bb
Solid cable and stranded cable
Shielded cable
7 mm*
(0.28'') (0.28'')
(0.79'')
7 mm*
20 mm
* Expose 8 mm (0.31’’) or more when
using the above ferrule terminal, and cut
off an extra conductor protruding from
the sleeve.
Wiring procedures
Step 1. Wiring the supplied removable terminal
plug.
1-1. Loosen the terminal screws to insert
the wire.
1-2. Tighten the terminal screws.
Ensure that the wire does not break
free when pulled. If the wire does pull
free, repeat the connection procedure
from the start.
Step 2. Insert the wired terminal plug into the
corresponding terminal block in the
unit’s rear panel.
Note
Do not reverse Steps 1 and 2 above. Force is
applied to the connected receptacle pins while
tightening the terminal screw and they may be
damaged, resulting in bad connector contact.
Terminal screw
Removable terminal plug
(accessory)
Tightens Loosens
Slotted screwdriver*
[Terminal plug without fixing screws]
Recommended type of screwdriver with the following blade width:
For terminal plug except 3P type: About 2.5mm (0.1”) wide blade
For 3P terminal plug: About 3.5mm (0.14”) wide blade
*
Bit shape 2.5 mm or 3.5 mm
(0.1”) (0.14”)
