19. AUTOMATIC MUTE SETTING
This function can only be set using the supplied M-864D PC Software.
For details, read the separate Software instructions.
19.1. What is the Automatic Mute Function?
It is a function that automatically attenuates the volume level of the signal input to the STEREO INPUTs 1 and
2 by detecting signals input from the MONO INPUTs 1 through 8.
The Automatic Mute ON or OFF can be individually set to each output 1 through 4.
19.2. Indicators Status during Automatic Mute Operation
TheAssignment indicators oftheStereoInputs1and2ofwhichvolumelevelsare attenuatedashduring
Automatic Mute operation.

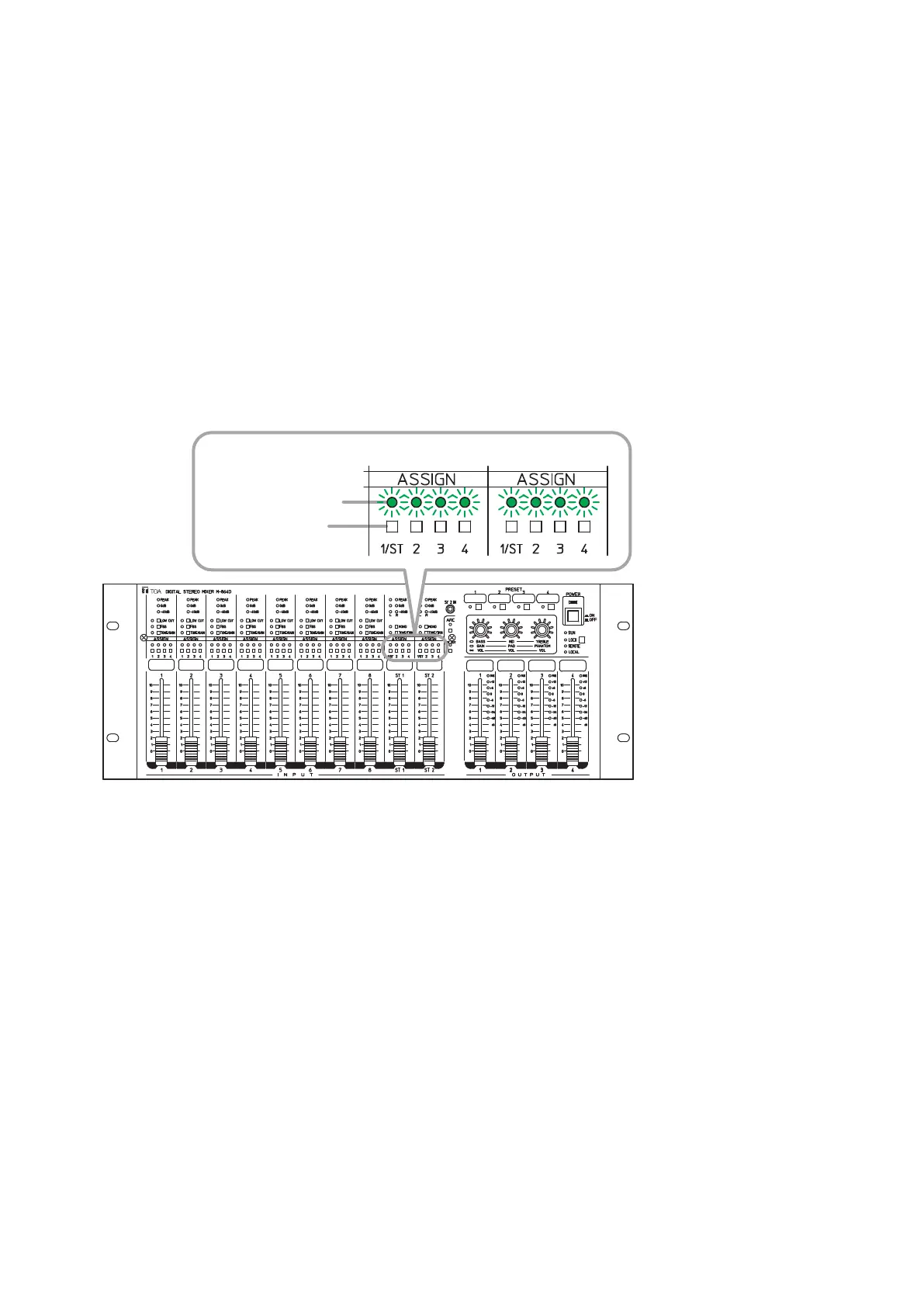

[Example when signals applied to the Stereo Inputs 1 and 2 are assigned to the outputs 1 through 4
and mixed]
M-864D
Assignment switch
Assignment indicator
STEREO INPUT 1 STEREO INPUT 2
