Toa M-864D - 8 System Configuration Example

13

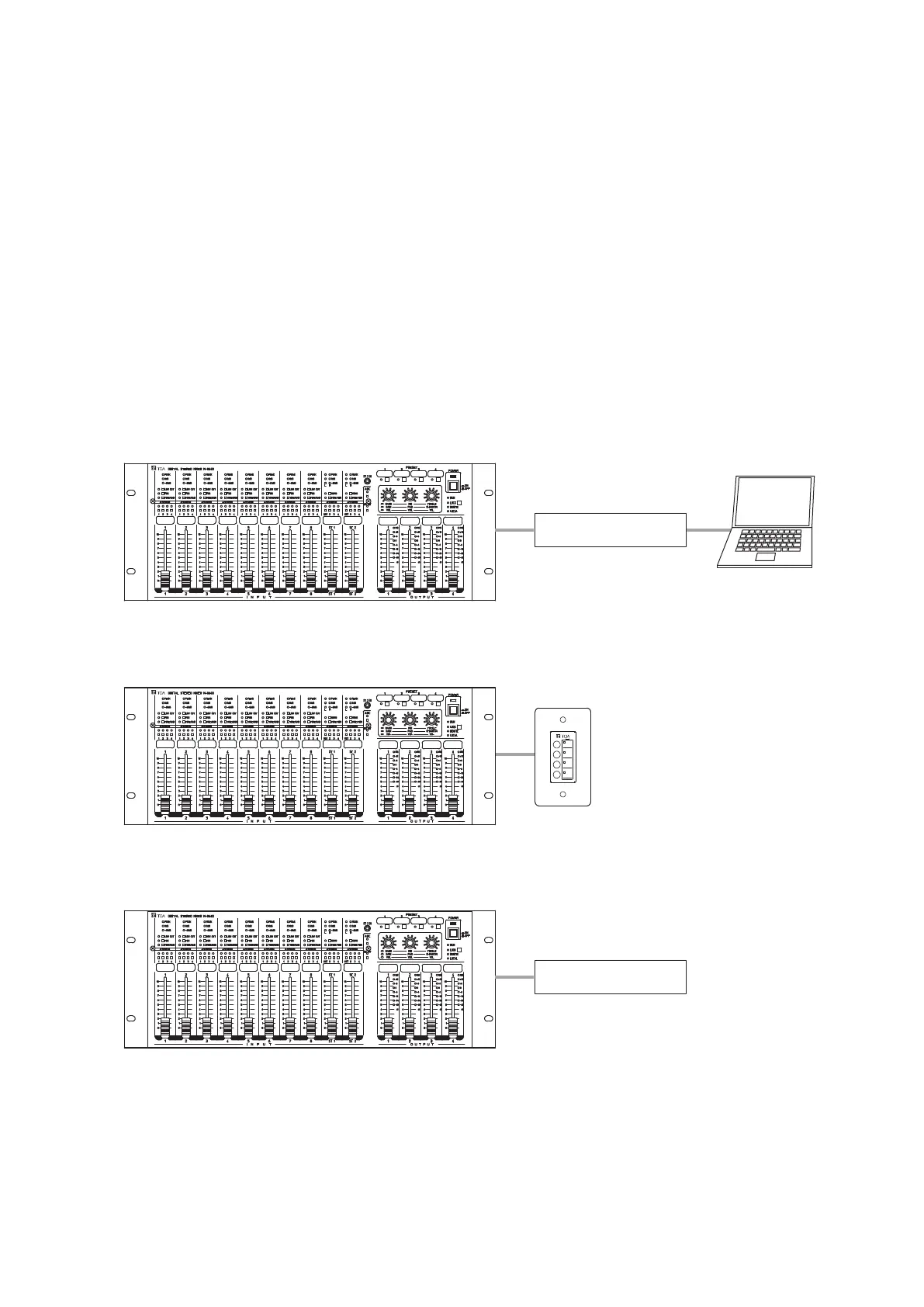

8. SYSTEM CONFIGURATION EXAMPLE
The M-864D can be used alone or in conjunction with a PC and external control device.
• UsingtheM-864DunitinconjunctionwithaPC
PC
M-864D
Switching hub
•UsingtheM-864DunitinconjunctionwiththeZMRemotecontroller
• UsingtheM-864Dunitinconjunctionwiththeexternalcontroldevice
M-864D
External control device
M-864D
ZM Remote controller
42. Recording output terminals [REC OUT L, R]
–10dB*,1kΩ,unbalancedtype,RCAjack.
Mixed signal of Buses 1 through 4 selected by the
supplied M-864D PC Software is output.
43. Stereo input terminals [STEREO INPUT 1, 2,
A, B, C]
–10dB*,10kΩ,unbalancedtype,RCAjack.(See
p.54,"BLOCKDIAGRAM.")
44. Monaural input terminals
[MONO INPUT 1 – 8, E, C, H]
–56to+4dB*,10kΩ(PADON)/7kΩ(PADOFF),
balanced type, removable terminal block.
Input sensitivity can be selected by the Control
knobs (6) when the control mode is the Gain
control mode.
*0dB=0.775V
