Toa MX-6224D - 8 Connection Example

11

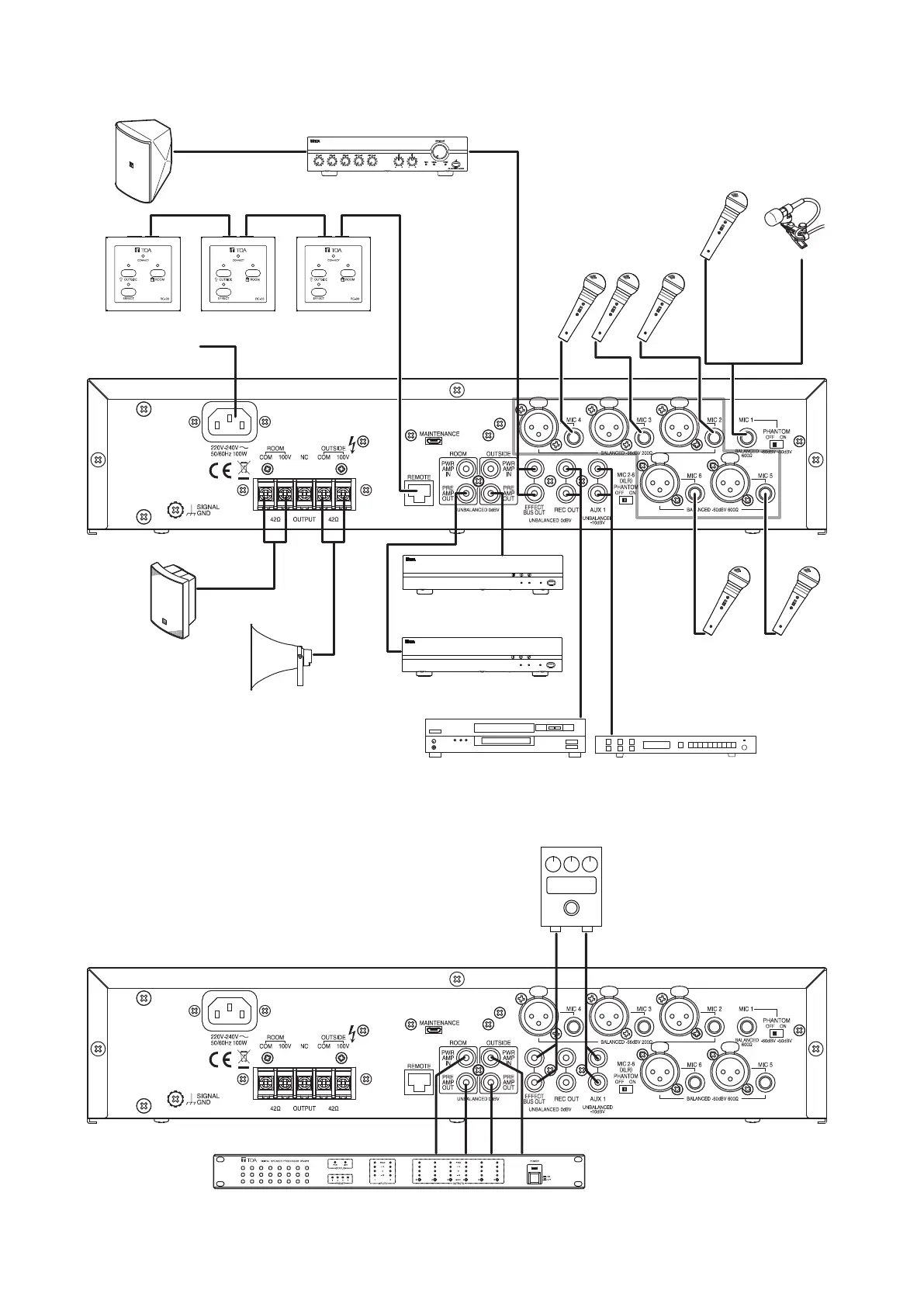

8. CONNECTION EXAMPLE
[Connection when signal processing equipment is used]
F-1300B
Monitor speaker
To AC mains
MX-6224D
MX-6224D
A-2030
Mixer amplifier
RC-03
Radio tuner or CD player
Recorder
In Out
InOut In Out
TC-631M
Horn speaker x 4
BS-1030B
Box speaker x 4
P-2240
Power amplifier
DP-SP3
Speaker processor
Effector
or
DM-1300 (phantom swictch is OFF) or
EM-410 (phantom swictch is ON)
Microphone
DM-1300
Dynamic
Microphones
RC-03
Remote controller
RC-03
P-2240
DM-1300
Dynamic
Microphones
