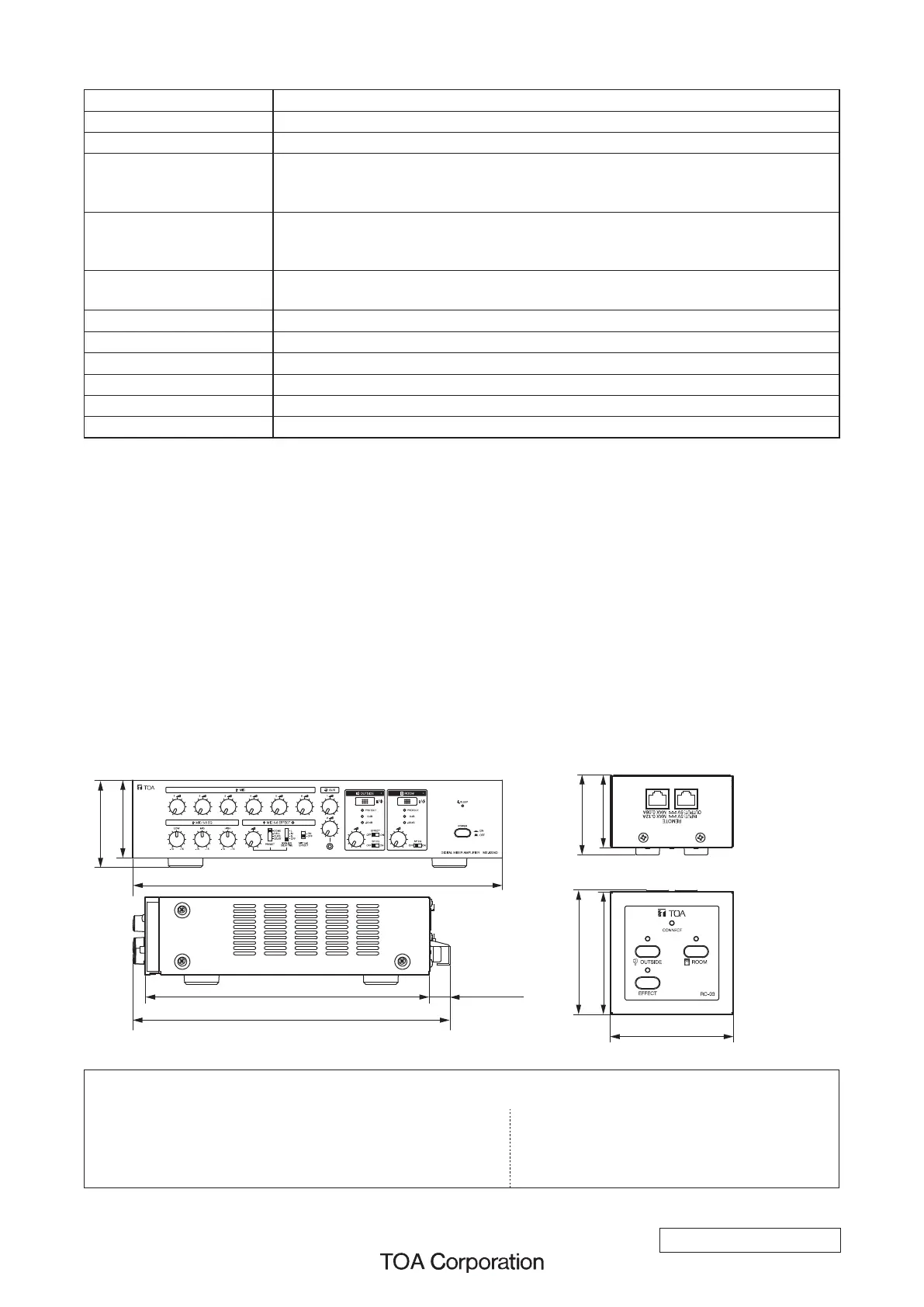

16. DIMENSIONAL DIAGRAM
99.8 (3.93")
88.4 (3.48")
420 (16.54 " )
360.6 (14.2 " )
324 (12.76 " )
22.8 (0.9 " )
55.3 (2.18")
51 (2.01")
86 (3.39")
86 (3.39")
87.2 (3.43")
[RC-03]
Power Source 5 V DC (supplied from MX-6224D)
Consumption current 120 mA Maximum
Terminal RJ-45 connector
Controls 1 ROOM ON/OFF control switch
1 OUTSIDE ON/OFF control switch
1 Effect ON/OFF control switch
Indicators CONNECTION indicator
Output ON/OFF for ROOM and OUTSIDE
EFFECT ON/OFF
Connection Cable Shielded Category 5 twisted pair Straight cable for LAN (CAT5-STP)
Unshielded Category 5 twisted pair Straight cable for LAN (CAT5-UTP)
Maximum cable length 200 m
Operating Temperature 0 to 40 ºC (32 to 104 ºF)
Operating Humidity 35 to 80% RH (no condensation)
Dimensions 86 (w) x 55.3 (h) x 87.2 (d) mm (3.39" x 2.18" x 3.43")
Weight 380 g (0.84 lb)
Finish Plated steel sheet, white (RAL 9016 equivalent), paint
•Accessory
Sticker for Arabic Indication ...................... 1
•Optionalproducts
Power amplier: P-2240
Multichannel power amplier: DA-250FH
Dynamic microphone: DM-1300
Lavalier microphone: EM-410
Horn speaker: TC-631M, TC-651M
Universal speaker: BS-1030B, BS-1030W
Rack mounting bracket: MB-25B
Perforated panel: PF-013B
16.1. MX-6224D 16.2. RC-03
Unit : mm
