٨
˻˿ ˻
˻
˻ ˼˹ ˼˺
˽˺˽˹˼˼
˼˿˼˾˼˽
˼˼
˼˻
˼
ﺏﺭﺎﻘﻋ ﺔﻛﺮﺣ ﻩﺎﺠﺗﺍ ﺲﻜﻌﺑﻭ ،(١٦) ﺎ
ً
ﻘﺒﺴﻣ ﺔﻃﻮﺒﻀﻤﻟﺍ ﺕﺍﺮﺛﺆﻤﻟﺍ
.ﺎﻬﻓﺎﻌﺿﻹ ﺔﻋﺎﺴﻟﺍ
ﺔﻋﺎﺴﻟﺍ ﺏﺭﺎﻘﻋ ﺔﻛﺮﺣ ﻩﺎﺠﺗﺍ ﺲﻜﻌﺑ ﻞﻣﺎﻜﻟﺎﺑ ﻢﻜﺤﺘﻟﺍ ﺡﺎﺘﻔﻣ ﺓﺭﺍﺩﺇ
.ﺕﺍﺮﺛﺆﻤﻠﻟ ﺔﺑﺎﺠﺘﺳﺍ ﻪﻴﻓ ﻁﺮﺘﺸﻳﻻ
ﺎ
ً
ﻘﺒﺴﻣ ﺔﻃﻮﺒﻀﻤﻟﺍ ﺕﺍﺮﺛﺆﻤﻟﺍ ﻉﻮﻧ ﺭﺎﻴﺘﺧﺍ ﺡﺎﺘﻔﻣ .١٦
“ﺔﺣﻮﻟ”ﻭ “ﺔﻋﺎﻗ”ﻭ “ﺔﺒﻗ” ﻦﻴﺑ ﻦﻣ ﺕﻮﺼﻟﺍ ﺕﺍﺮﺛﺆﻣ ﻉﻮﻧ ﺭﺎﻴﺘﺧﺎﺑ ﻢﻗ
.“ﺮﻴﺧﺄﺗ”ﻭ
ﻲﻨﻣﺯ ﺮﻴﺧﺄﺗ/ﻲﻠﺧﺍﺪﻟﺍ ﻢﺠﺤﻟﺍ
ﺕﺍﺮﺛﺆﻣ ﺭﺎﻴﺘﺧﺍ ﺡﺎﺘﻔﻣ .١٧
(ﺮﻴﺼﻗ ﺖﻗﻭ) “S” ﻦﻣ ﺕﺍﺮﺛﺆﻤﻠﻟ ﻲﻨﻣﺯ ﺮﻴﺧﺄﺗ/ﺩﺍﺪﺗﺭﻻﺍ ﺭﺎﻴﺘﺧﺎﺑ ﻢﻗ
.(ﻞﻳﻮﻃ ﺖﻗﻭ) “L” ﻭ (ﻂﺳﻮﺘﻣ ﺖﻗﻭ) “M” ﻭ
.ﺕﺍﺮﺛﺆﻤﻟﺍ ﺔﻔﻴﻇﻭ ﻞﻴﻄﻌﺗ ﻢﺘﻳ ،OFF ﻕﻼﻏﻹﺍ ﻊﺿﻭ ﻰﻠﻋ ﺎﻬﻄﺒﺿ ﺪﻨﻋ
ﺕﺍﺮﺛﺆﻤﻟﺍ ﺮﺷﺆﻣ .١٨
.ﺞﻣﺪﻤﻟﺍ ﺮﺛﺆﻤﻟﺍ ﻞﻴﻌﻔﺗ ﺪﻨﻋ ﺮﻀﺧﻷﺍ ﻥﻮﻠﻟﺎﺑ ءﻲﻀﻳ
٦ - ٥ ﻥﻮﻓﻭﺮﻜﻴﻤﻟﺍ ﺕﺍﺮﺛﺆﻣ ﺡﺎﺘﻔﻣ .١٩
.٦ ﻭ ٥ ﻥﻮﻓﻭﺮﻜﺒﻤﻟﺍ ﻞﺧﺍﺪﻤﻟ ﺕﺍﺮﺛﺆﻤﻟﺍ ﻑﺎﻘﻳﺇﻭ ﻞﻴﻐﺸﺘﺑ ﻡﻮﻘﻳ
ﺔﻈﺣﻼﻣ
ﻞﻴﻐﺸﺘﻟﺍ ﻊﺿﻭ ﻰﻠﻋ ٤ ﻰﻟﺇ ١ ﻥﻮﻓﻭﺮﻜﻴﻤﻟﺍ ﻞﺧﺍﺪﻤﻟ ﺕﺍﺮﺛﺆﻤﻟﺍ ﻥﻮﻜﺗ
.ﺭﺍﺮﻤﺘﺳﺎﺑ ON
٢ ﻲﻓﺎﺿﺇ ﻞﺧﺩ ﺲﺒﻘﻣ .٢٠
ﺲﺑﺎﻗ ،ﻥﺯﺍﻮﺘﻣ ﺮﻴﻏ ،ﻂﻠﺘﺨﻣ ﻱﺩﺎﺣﺃ ﻡﻭﺃ ﻮﻠﻴﻛ ١٠
،*ﻞﺒﻴﺴﻳﺩ ٢٠-
(ﻮﻳﺮﻴﺘﺳ :3P) ﻢﻣ ٣,٥ ﺮﻄﻘﺑ ﺮﻴﻐﺻ
.ﻲﺟﺭﺎﺧ ﻰﻘﻴﺳﻮﻣ ﻞﻐﺸﻣ ﻊﻣ ﻞﻴﺻﻮﺘﻟﺎﺑ ﻡﻮﻘﻳ
ﻲﺟﺭﺎﺨﻟﺍ ﻕﺎﻄﻨﻟﺍ ﺕﻮﺻ ﻯﻮﺘﺴﻤﺑ ﻢﻜﺤﺘﻟﺍ ﺡﺎﺘﻔﻣ .٢١
.ﻲﺟﺭﺎﺨﻟﺍ ﻕﺎﻄﻨﻟﺍ ﺝﺮﺧ ﻯﻮﺘﺴﻣ ﻂﺒﻀﺑ ﻡﻮﻘﻳ
(ﻕﻮﺑ ﻞﻜﺸﺑ ﺔﻋﺎﻤﺳ) ﻝﺩﺎﻌﻤﻟﺍ ﺡﺎﺘﻔﻣ .٢٢
ﺕﻮﺼﻟﺍ ﺝﺮﺧ ﻦﻴﺴﺤﺘﻟ ON ﻞﻴﻐﺸﺘﻟﺍ ﻊﺿﻭ ﻰﻠﻋ ﺡﺎﺘﻔﻤﻟﺍ ﺔﺌﻴﻬﺘﺑ ﻢﻗ
.TOA TC-631M/651M ﺔﻋﺎﻤﺴﻟ
ﻲﺟﺭﺎﺨﻟﺍ ﻕﺎﻄﻨﻟﺍ ﺝﺮﺧ ﺕﺍﺮﺛﺆﻣ ﺡﺎﺘﻔﻣ .٢٣
.ﻲﺟﺭﺎﺨﻟﺍ ﻕﺎﻄﻨﻟﺍ ﺝﺮﺨﻟ ﺕﺍﺮﺛﺆﻤﻟﺍ ﻑﺎﻘﻳﺇﻭ ﻞﻴﻐﺸﺘﺑ ﻡﻮﻘﻳ
ﺔﻈﺣﻼﻣ
.ﺭﺍﺮﻤﺘﺳﺎﺑ ON ﻞﻴﻐﺸﺘﻟﺍ ﻊﺿﻭ ﻰﻠﻋ ﻲﻠﺧﺍﺪﻟﺍ ﻕﺎﻄﻨﻟﺍ ﺕﺍﺮﺛﺆﻣ ﻥﻮﻜﺗ
ﻲﻠﺧﺍﺪﻟﺍ ﻕﺎﻄﻨﻟﺍ ﺕﻮﺻ ﻯﻮﺘﺴﻤﺑ ﻢﻜﺤﺘﻟﺍ ﺡﺎﺘﻔﻣ .٢٤
.ﻲﻠﺧﺍﺪﻟﺍ ﻕﺎﻄﻨﻟﺍ ﺝﺮﺧ ﻯﻮﺘﺴﻣ ﻂﺒﻀﺑ ﻡﻮﻘﻳ
(ﺔﻴﻠﺧﺍﺩ ﺔﻋﺎﻤﺳ) ﻝﺩﺎﻌﻤﻟﺍ ﺡﺎﺘﻔﻣ .٢٥
ﺕﻮﺼﻟﺍ ﺝﺮﺧ ﻦﻴﺴﺤﺘﻟ ON ﻞﻴﻐﺸﺘﻟﺍ ﻊﺿﻭ ﻰﻠﻋ ﺡﺎﺘﻔﻤﻟﺍ ﺔﺌﻴﻬﺘﺑ ﻢﻗ
.TOA BS-1030B/1030W ﺔﻋﺎﻤﺴﻟ
[ﻒﻠﺨﻟﺍ]
ﺩﺩﺮﺘﻤﻟﺍ ﺭﺎﻴﺘﻟﺍ ﺬﻔﻨﻣ .٢٦
ﺭﺎﻴﺘﻟﺍ ﺩﺍﺪﻣﺇ ﻚﻠﺳ ﻡﺍﺪﺨﺘﺳﺎﺑ ﺩﺩﺮﺘﻤﻟﺍ ﺭﺎﻴﺘﻟﺍ ﺭﺪﺼﻣ ﻞﻴﺻﻮﺘﺑ ﻡﻮﻘﻳ
.ﺩﻭﺰﻤﻟﺍ ﺩﺩﺮﺘﻤﻟﺍ
ﺔﻈﺣﻼﻣ
.ﻲﺿﺭﻷﺍ ﺩﺩﺮﺘﻤﻟﺍ ﺭﺎﻴﺘﻟﺍ ﺬﺧﺄﻣ ﻰﻟﺇ ﺩﺩﺮﺘﻤﻟﺍ ﺭﺎﻴﺘﻟﺍ ﺩﺍﺪﻣﺇ ﻚﻠﺳ ﻞﻴﺻﻮﺘﺑ ﻢﻗ

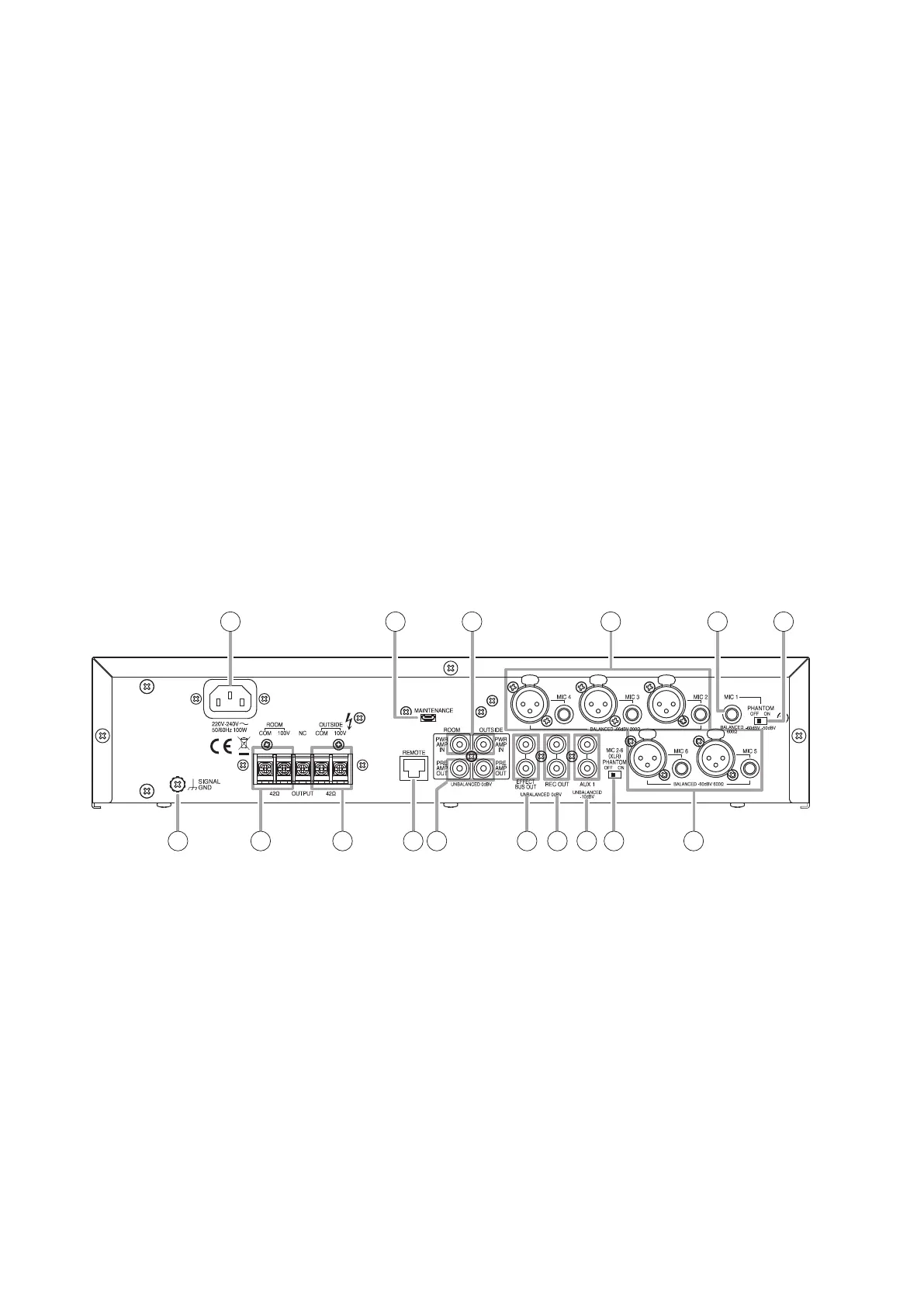

ﺔﻧﺎﻴﺼﻟﺍ ﺔﺤﺘﻓ .٢٧
.ﻂﻘﻓ ﺔﻣﺪﺨﻟﺍ ﻲﻔﻇﻮﻣ ﻡﺍﺪﺨﺘﺳﻻ
ﺕﻮﺼﻟﺍ ﻢﺨﻀﻣ ﺔﻗﺎﻃ ﻞﺧﺩ ﺕﺎﺴﺑﺎﻗ .٢٨
RCA ﺔﻳﺭﻮﺤﻣ ﺕﺎﺴﺑﺎﻗ ،ﻥﺯﺍﻮﺘﻣ ﺮﻴﻏ ،ﻡﻭﺃ ﻮﻠﻴﻛ ١٠ ،*ﻞﺒﻴﺴﻳﺩ ٠
.ﻲﺟﺭﺎﺨﻟﺍ ﺔﻋﺎﻤﺴﻟﺍ ﺞﻟﺎﻌﻤﺑ ﻪﻠﻴﺻﻮﺘﺑ ﻢﻗ
XLR ﻉﻮﻨﻟﺍ ﻦﻣ ﺕﻼﺻﻮﻤﻟﺍ/٤ - ٢ ﻥﻮﻓﻭﺮﻜﻴﻤﻟﺍ ﻞﺧﺩ ﺕﺎﺴﺑﺎﻗ .٢٩
ﺎ
ً
ﻴﻧﻭﺮﺘﻜﻟﺇ ﻥﺯﺍﻮﺘﻣ ،ﻡﻭﺃ ٢٠٠ ،*ﻞﺒﻴﺴﻳﺩ ٦٦-
ﻞﻜﻟ XLR ﻉﻮﻨﻟﺍ ﻦﻣ ﻞﺻﻮﻤﻟﺍ ﻭﺃ
ﻒﺗﺎﻬﻟﺍ ﺲﺑﺎﻗ ﺎﻣﺇ ﻡﺍﺪﺨﺘﺳﺎﺑ ﻢﻗ
.ﻥﻮﻓﻭﺮﻜﻴﻣ ﻞﺧﺪﻣ
ﻖﻴﺒﻄﺘﻠﻟ ﻢﺋﻼﻣ ،ﻥﺯﺍﻮﺘﻤﻟﺍ ﺯﺍﺮﻄﻟﺍ ﻱﺫ ﻥﻮﻓﻭﺮﻜﻴﻤﻟﺍ ﻞﻴﺻﻮﺘﺑ ﻡﻮﻘﻳ
ﻉﻮﻨﻟﺍ ﻦﻣ ﻲﻜﻴﻣﺎﻨﻳﺩ ﻥﻮﻓﻭﺮﻜﻴﻣ ﻞﻴﺻﻮﺗ ﻦﻜﻤﻳ .ﻥﻮﻓﻭﺮﻜﻴﻤﻟﺍ ﻰﻠﻋ
ﻲﻓ ﺔﻟﻮﺻﻮﻤﻟﺍ ﺕﺎﻧﻮﻓﻭﺮﻜﻴﻤﻠﻟ .ﻒﺗﺎﻬﻟﺍ ﻞﺧﺩ ﺲﺑﺎﻗ ﻞﻛ ﻲﻓ ﻥﺯﺍﻮﺘﻤﻟﺍ
ﻥﻮﻓﻭﺮﻜﻴﻤﻠﻟ ﻡﻮﺘﻧﺎﻓ ﺡﺎﺘﻔﻤﻟﺍ .٤٠” ﺮﻈﻧﺍ ،XLR ﻉﻮﻨﻟﺍ ﻦﻣ ﻞﺧﺩ ﻞﻛ
“.(XLR) ٦ - ٢
١ ﻥﻮﻓﻭﺮﻜﻴﻤﻟﺍ ﻞﺧﺩ ﺲﺑﺎﻗ .٣٠
ﺭﺎﻴﺘﻟﺍ
*ﻞﺒﻴﺴﻳﺩ ٦٠-
/(ﻡﻮﺘﻧﺎﻓ ﺭﺎﻴﺘﻟﺎﺑ ﻞﻐﺸﻣ
ﻂﻟﻮﻓ ٢٤
)
*ﻞﺒﻴﺴﻳﺩ ٥٠-
،ﺎ
ً
ﻴﻧﻭﺮﺘﻜﻟﺇ ﻥﺯﺍﻮﺘﻣ ،
ﻡﻭﺃ ٦٠٠
،(OFF ﻕﻼﻏﻹﺍ ﻊﺿﻭ ﻰﻠﻋ ﻡﻮﺘﻧﺎﻓ
ﻢﻣ ٦,٣ ﺮﻄﻘﺑ ﻒﺗﺎﻫ ﺲﺑﺎﻗ
ﻦﻋ ﺍ
ً
ﺪﻴﻌﺑ ﻖﻴﺒﻄﺘﻠﻟ ﻢﺋﻼﻣ ،ﻥﺯﺍﻮﺘﻤﻟﺍ ﺯﺍﺮﻄﻟﺍ ﻱﺫ ﻥﻮﻓﻭﺮﻜﻴﻤﻟﺍ ﻞﻴﺻﻮﺘﺑ ﻡﻮﻘﺗ
.(ﺭﺪﺼﻟﺍ ﻰﻠﻋ ﺖﺒﺜﻳ ﻱﺬﻟﺍ ﻥﻮﻓﻭﺮﻜﻴﻤﻟﺍ ﻡﺍﺪﺨﺘﺳﺎﺑ ﻰﺻﻮﻳ) ﻥﻮﻓﻭﺮﻜﻴﻤﻟﺍ
ﻡﻮﺘﻧﺎﻓ ﺡﺎﺘﻔﻤﻟﺍ .٣١” ﺮﻈﻧﺍ ،ﻞﻴﺻﻮﺘﻠﻟ ﺔﻠﺑﺎﻘﻟﺍ ﺕﺎﻧﻮﻓﻭﺮﻜﻴﻤﻠﻟ
.“١ ﻥﻮﻓﻭﺮﻜﻴﻤﻠﻟ
ﻂﻟﻮﻓ ١ = ﻞﺒﻴﺴﻳﺩ ٠ *
