16. Effect preset type selection switch
Select the type of the sound effect from "DOME,"
"HALL," "PLATE," and "DELAY."
17. Effect Room size/Delay time selection switch
Select the reverberation/delay time of effect from
"S" (Short time), "M" (Medium time), and "L" (Long
time).
When set to OFF, the effect function is disabled.
18 . Ef fec t indi cator
Lights green when the built-in effector is activated.
19. MIC 5 – 6 effect switch
Turns on and off the effect for the MIC 5 and 6
inputs.
Note
Effect for the MIC 1 to 4 inputs is constantly ON.
20. AUX 2 input jack
–20 dB*, 10 kΩ mixed monaural, unbalanced,
ø3.5 mm mini jack (3P: stereo)
Connects to an external music player.
21. Volume control for the outside zone
Adjusts the outside zone output level.
22. Equalizer switch (Horn speaker)
Set this switch to the ON position to optimize
the output sound for the TOA TC-631M/651M
speaker.
23. Outside zone output effect switch
Turns on and off the effect for the Outside zone
output.
Note
Effect for the Room zone output is constantly ON.
24. Volume control for the room zone
Adjusts the room zone output level.
25. Equalizer switch (Box speaker)
Set this switch to the ON position to optimize
the output sound for the TOA BS-1030B/1030W
speaker.

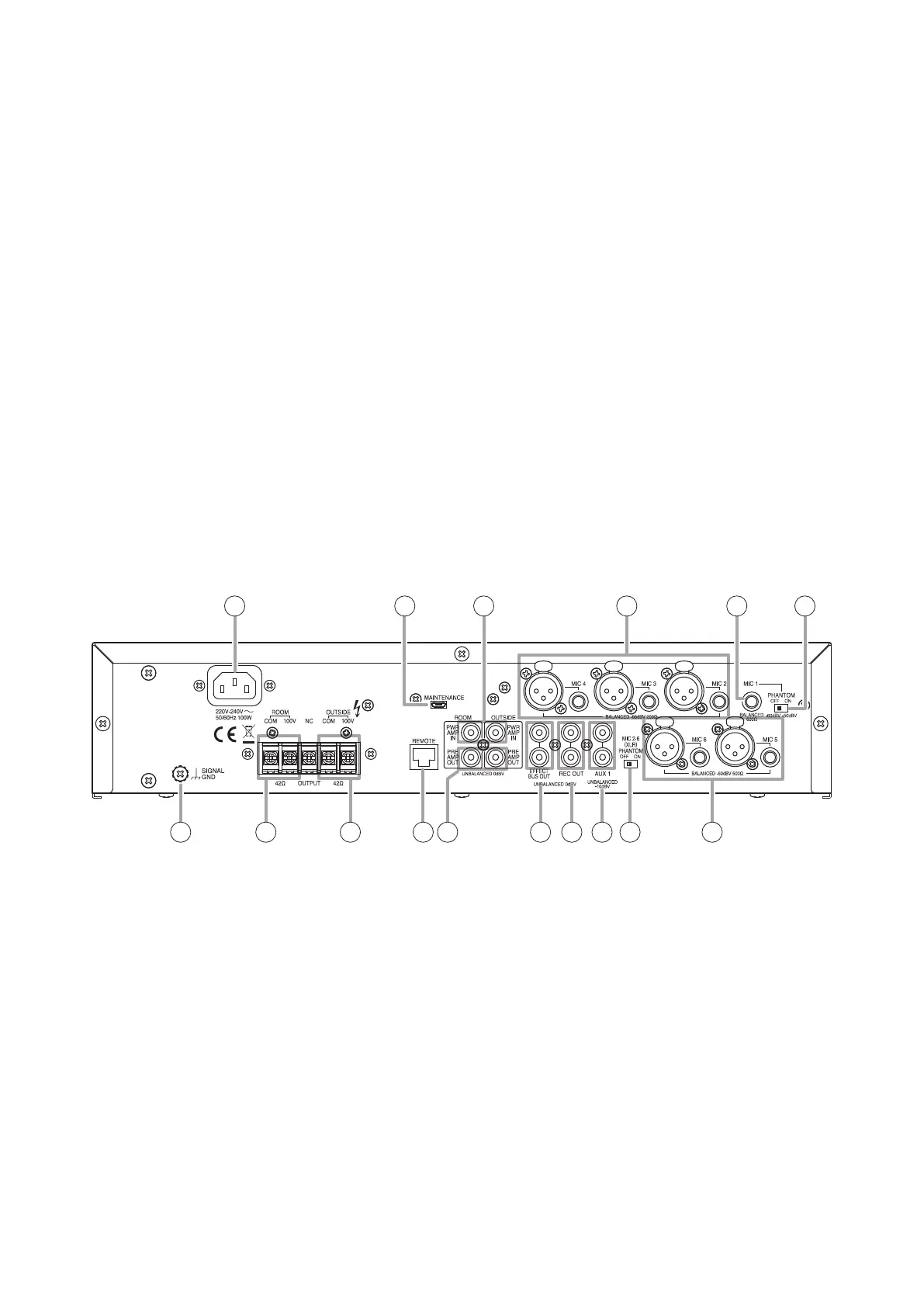

[Rear]
26. AC inlet
Connects to the AC power source using the
supplied AC power supply cord.
Note
Connect the AC power supply cord to a grounded
AC outlet.
27. Maintenance port
For service personnel use only.
28.Poweramplierinputjacks
0 dB*, 10 kΩ, unbalanced, RCA pin jacks
Connect to an external speaker processor.
29. MIC 2 – 4 input jacks/XLR type connectors
–66 dB*, 200 Ω, electronically-balanced
Use either the phone jack or XLR type connector
for each MIC input.
Connect to the balanced type microphone, suitable
for on microphone application. A balanced type
dynamic microphone can be connected to each
phone jack input. For the microphones connected
to each XLR type input, see "40. MIC 2 – 6 (XLR)
phantom switch."
30. MIC 1 input jack
–50 dB*
( 24 V ph a ntom p owere d)/ –60 dB* phantom
power OFF), 600 Ω , electronically-balanced, ø6.3
mm phone jack
Connects to the balanced type microphone,
suitable for off microphone application (a lavaliere
microphone is recommended).
For the connectable microphones, see "31. MIC 1
phantom switch."
* 0 dB = 1 V
