Tomey ViewLight EM-4000 User Manual

2-5䢢 䕔 

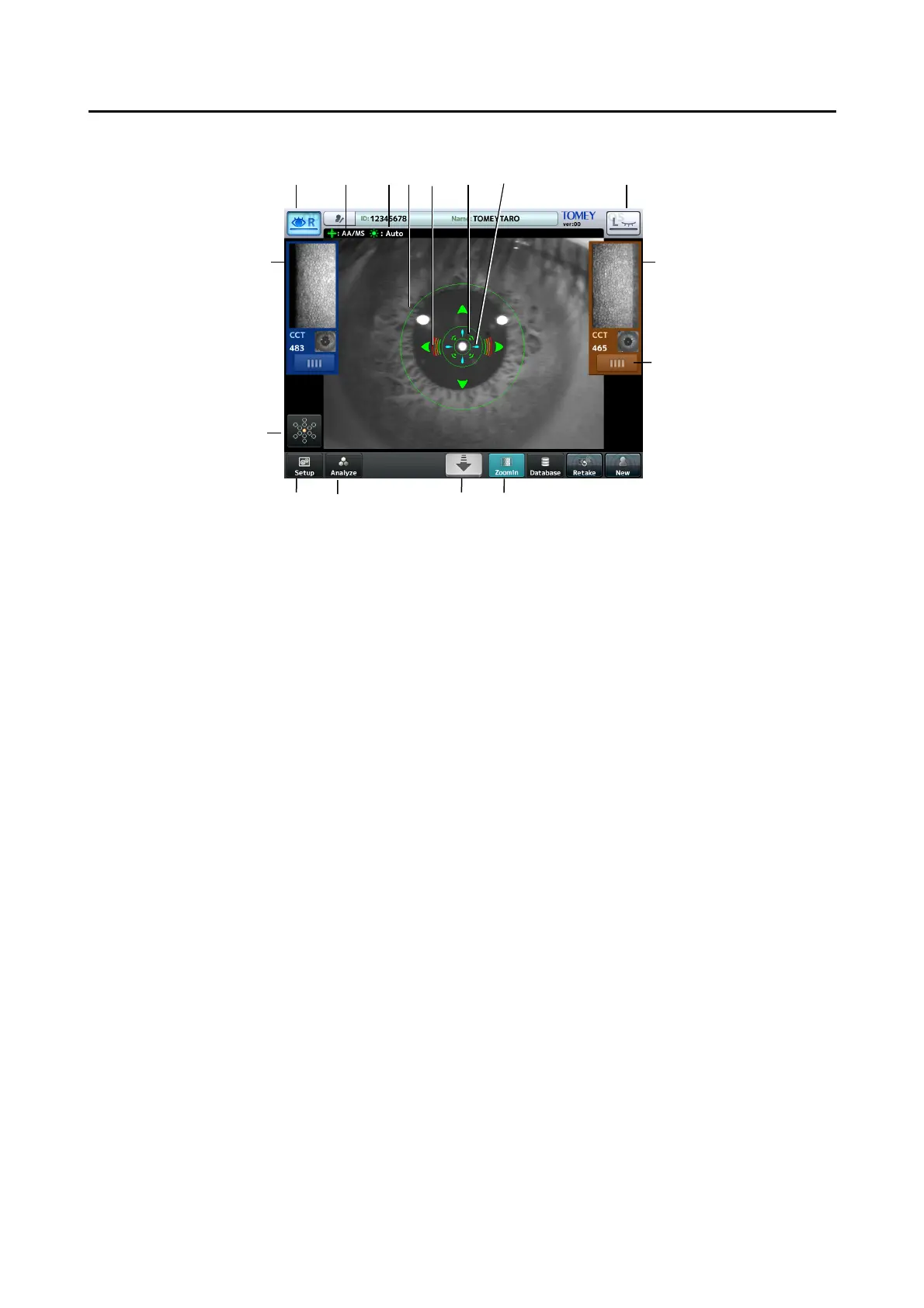

2.4.2 Capture screen
(1) Eye selection button
Displays which side (left or right eye) the head is placed. Touch this button to move the head right and left.
(2) Thumbnails
Displays the captured image of the endothelium and anterior chamber, and central corneal thickness.
(3) Alignment/capture setting
Displays the setting for alignment and capture.
- AA/AS: Auto Alignment / Auto Shot
- AA/MS: Auto Alignment / Manual Shot
- MA/MS: Manual Alignment / Manual Shot
(4) Capture light setting
Displays the setting for the strength of light for capturing an image of the endothelium.
- Auto: Brightness is automatically adjusted.
- High: Maximum brightness
- Low: Minimum brightness
(5) Auto Alignment ring
Displayed when Auto Alignment is ON.
(6) Focus indicator
Displays the distance between the head and the patient's eye.
- Horizontal bars mean that the head is too far from the eye.
- Vertical bars mean that the head is too close to the eye.
(7) Auto shot mark
Shown in auto shot mode.
(1)
(11)
(4)
(5)
(6)
(
7
)
(2)
(8)
(3)
(9)
(12)
(13)
(10)
(14)
(1)
(2)
