3.3.4 Selecting image
Select an image to be analyzed from the 16 captured images of the
endothelium.
Touch the image selection button (1) on the capture screen (Fig. 1). The
image selection screen (Fig. 2) appears. In Basic mode, the image selection
screen (Fig. 2) appears every time an image of an eye is captured.

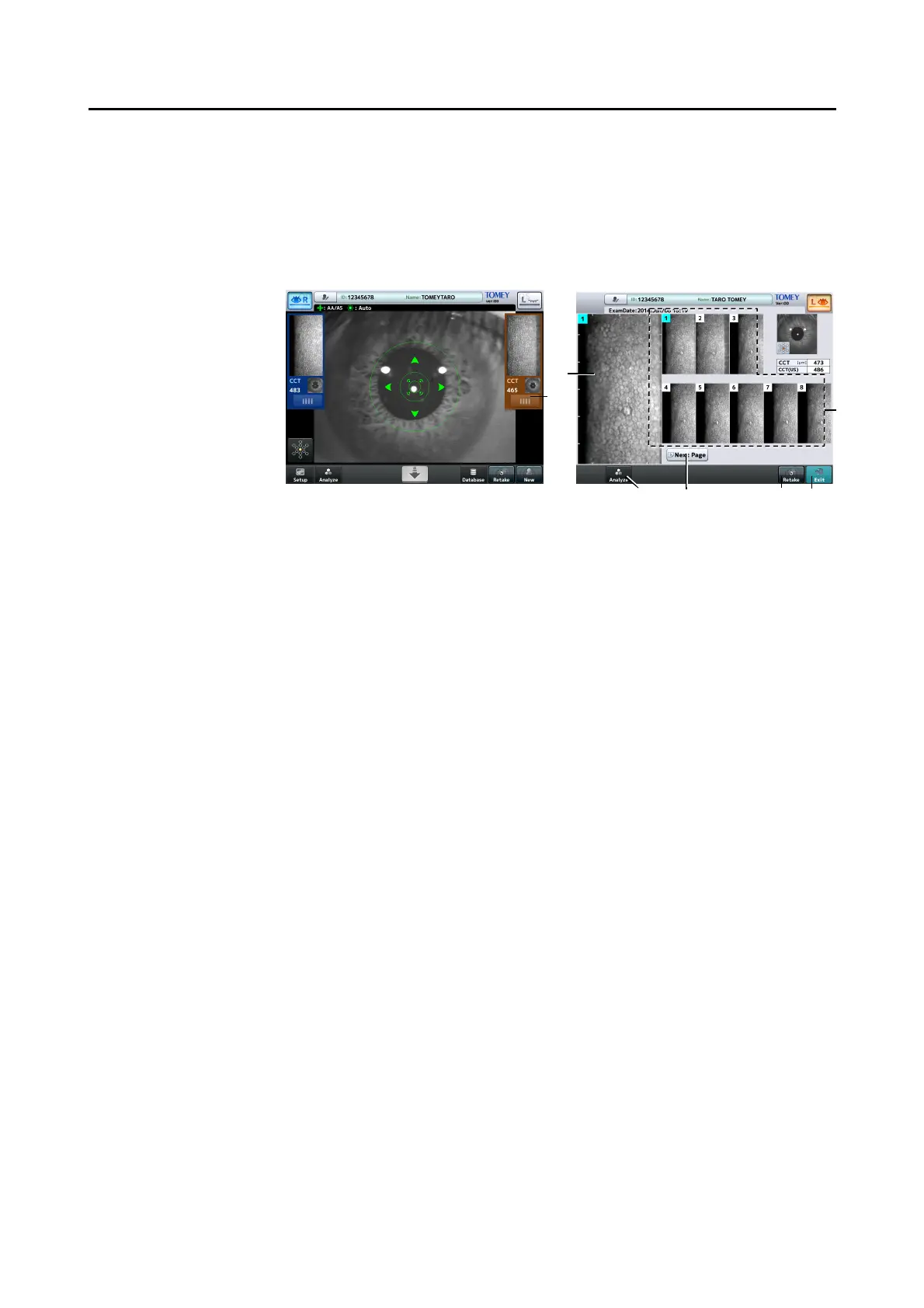

(Fig. 1) (Fig. 2)
1) Touch the thumbnail (2) of captured images to select the image to be
used for analysis.
- The selected image is displayed in the image display field (3) on the
left of the screen.
- If there is no appropriate image among the 8 images on the first page,
touch the “Next Page” button (3) to select the optimum image from the
8 images on the next page.
- If there is no appropriate image in the 16 images, touch and hold the
“Retake” button (4) to capture images again.
2) When the endothelium image to be used for analysis is selected, touch
the “Exit” button (5) and return to the capture screen.
- The image selected at this time is designated for analysis.
- Touch the “Analysis” button (6) to open the R/L eye analysis
screen without returning to the capture screen.
(3)
(2)
(1)
(6)
(3)
(4)
(5)
To Next Page
