7. USEOFEACHCOMPONENT
The following is TOMOS 4 stroke air-cooled 50 c.c. and 125 c.c. scooter’s basic operation, and they could vary
from different individual models. Pleaseconsulttheendofthismanual.

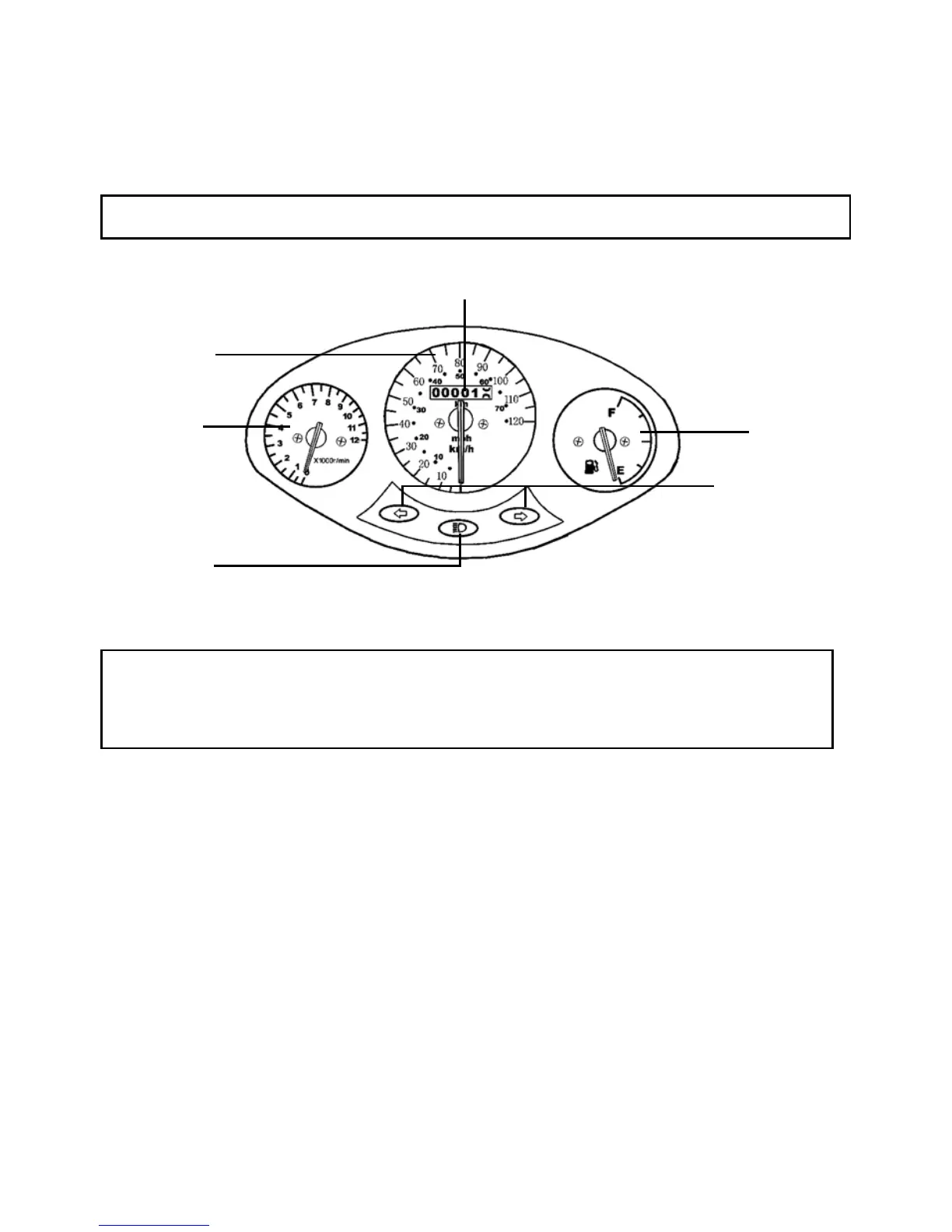

GAUGES
Thepanelfigureforspeedometermayvaryfrommodeltomodel,
butthelocationusuallyarethesame.
• CAUTION:
Do not wipe plastic components, e.g. instrument panel, headlight, with organic solvents such as gasoline…
etc to avoid damaging these components.
•Speedometer: •FuelMeter:
Indicates driving speed. The pointer in this meter shows how much
fuel remains in the tank.
•Tachometer The pointer stays in “E” position when key
Indicates engine rpm. switch is turned to “OFF”.
•HighBeamIndicator: •Turn(left/right)SignalIndicator:
This indicator comes on with high beam The left or right Indicator will be flashing
headlight is turned on. according to the operated directions of turn
 signal light switch when it is turned on.
•Odometer:
Indicates total accumulated distance traveled.
Speedometer
Tachometer
High Beam
Indicator
Fuel meter
Turn Left/Right
Signal Indicator
Odometer
