11. WHENTHEREISANABNORMALCONDITIONORATROUBLE
DIAGNOSISWHENENGINEDOESNOTSTART

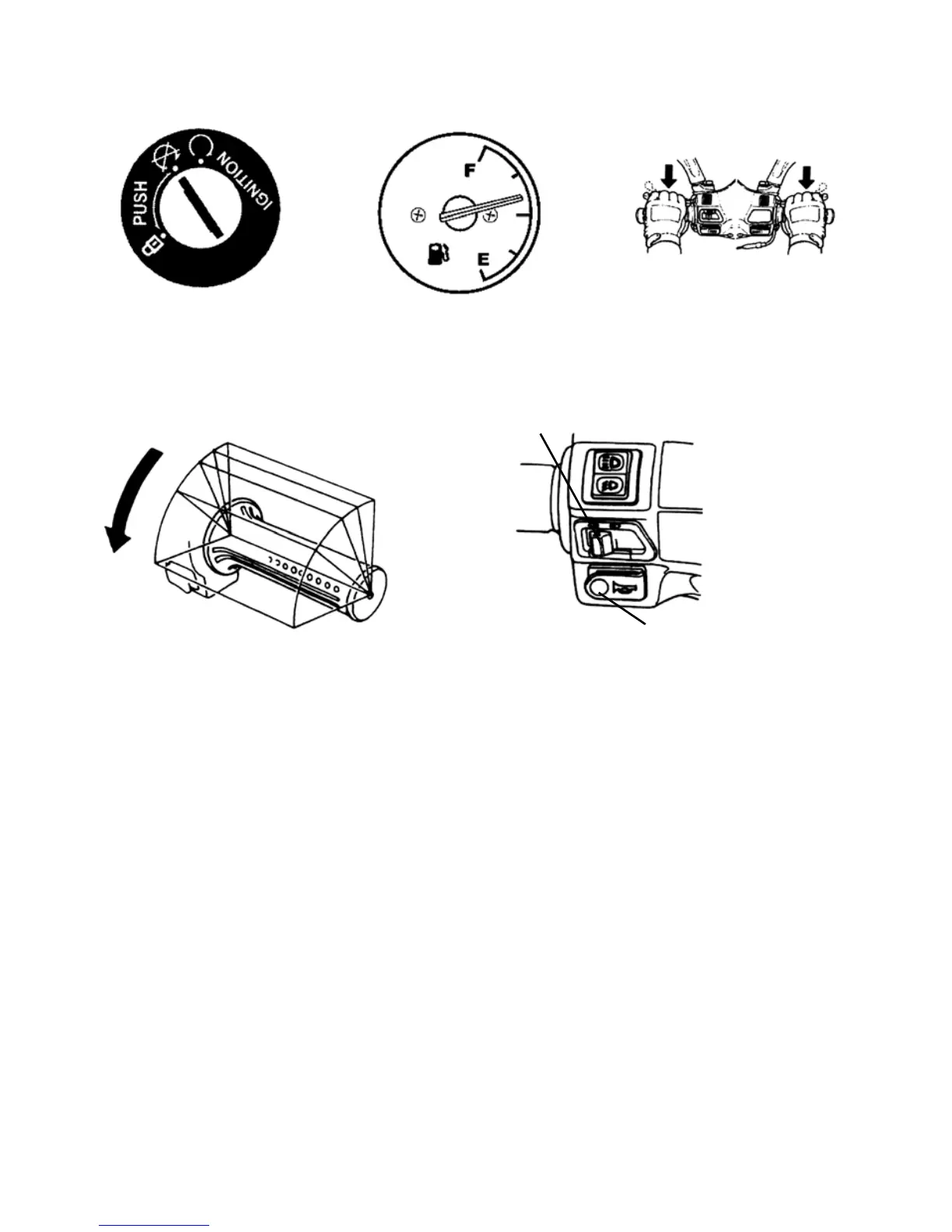

(1). Has the ignition switch key been (2). Is there enough fuel (3). Is the rear or front
turned to the “ON” position? in the fuel tank? wheel brakes applied
when pressing
starting button?
(4). Do you rotate the throttle valve (5). Turn the ignition switch key to the
handle while pressing “ON” position, and press horn button down,
starting the button? if the horn does not sound,
the fuse may have been blown.
• Have your twowheeler checked by a TOMOS authorized dealer immediately if there are no problems with the
above items and engine still can not be started.
12. C.D.I.ELECTRICLIGNITIONSYSTEM
The charge and discharge principle of a condenser is adopted for the C.D.I system to supply electrical energy
created by generator’s coil, to the ignition coil in accordance with specified ignition timing so that the spark plug
may generate sparks as required.
13. SUGGESTIONSONENGINEFUEL
This twowheeler is designed to use unleaded gasoline of Octane No. 95 or higher.
If the twowheeler is operated in high attitude (where the atmosphere pressure is lower), it is suggested that the
air/fuel ratio should be readjusted to maximize the engine performance.
14. TRANSMISSIONOIL
• Recommended OIL: Genuine GEAR OIL (SAE 85W-140)
1/4
1/8
For rear wheel For front wheel
Turn Signal Switch
Horn Switch
