Tomos NITRO 50 - Checking and Changing Fuses

49
CHECKINGANDCHANGINGFUSES
Turn off ignition switch, and check fuses if they are intact. Replace the blown fuse with a new one having the
same specified amperage rating (10A×2/15A×2). Using a fuse of more than 10 or 15 amperes, a brass or iron
wire to replace a blown fuse is strictly prohibited to avoid damaging the electrical system and the circuit.
• Remove the storage box, and you’ll find the fuse holder near battery.
• Open the fuse box cover, and pull out the fuse. Check it for damage or broken.
• Fuses must be firmly secured with wire connectors when replacing. Loose connections will result in overhead
and damage.
• Use only parts having the specified specification to replace electrical components such as light bulbs. Using
parts not having the specified specifications for replacement may cause the fuse to blow and over-discharge
the battery.
• Avoid spraying water directly on or around fuse box when washing the twowheeler.
• If the new fuse burn out quickly again, please check the faulty reason before replace it again. Take your
twowheeler to your dealer for an inspection if a fuse is blown by unknown causes.
CHECKINGTHETURNSIGNALLIGHTSANDHORN
• Turn the ignition switch key to the “ON” position.
• Turn on the turn signal light switch, and make sure that the front & rear and left & right signal lights flashes and
also check if the warning buzzer sounds.
• Check turn signal light covers if they are dirty, crack, or loosen.
• Press horn button to check if it works.
•CAUTION:
•Specified specification bulbs should be used for turn signal lights. Otherwise, the normal operation of turn
signal lights will be affected.
•Turn on the turn signal light before turning or switching lane to warn driver of vehicles behind.
•Turn off the turn signal light immediately by pressing its button down after using. Otherwise, the flashing of
twin signal lights may confuse the drivers of vehicles behind.
CHECKINGTHEFRONTANDREARLIGHTS
• Start engine and turn on the head lamp switch. Check if head lamp and rear lamp come on.
• Check the brightness and direction of front light by wall to see if it is correct.
• Check the head lamp cover if it is dirty, crack, or loosen.
CHECKINGTHEBRAKELIGHT
• Turn the ignition switch key to the “ON” position, hold the hand-braking levers for front and rear wheels. Check
if the brake lights come on.
• Check the brake light cover if it is dirty, crack, or loosen.
•CAUTION:
•Use only specified specification bulbs, do not use bulbs with different specifications to avoid damaging
electrical system, burning out bulbs, and discharging the battery.
•Do not modify or add other electrical components to prevent over load or short circuit which may result in
a fire.

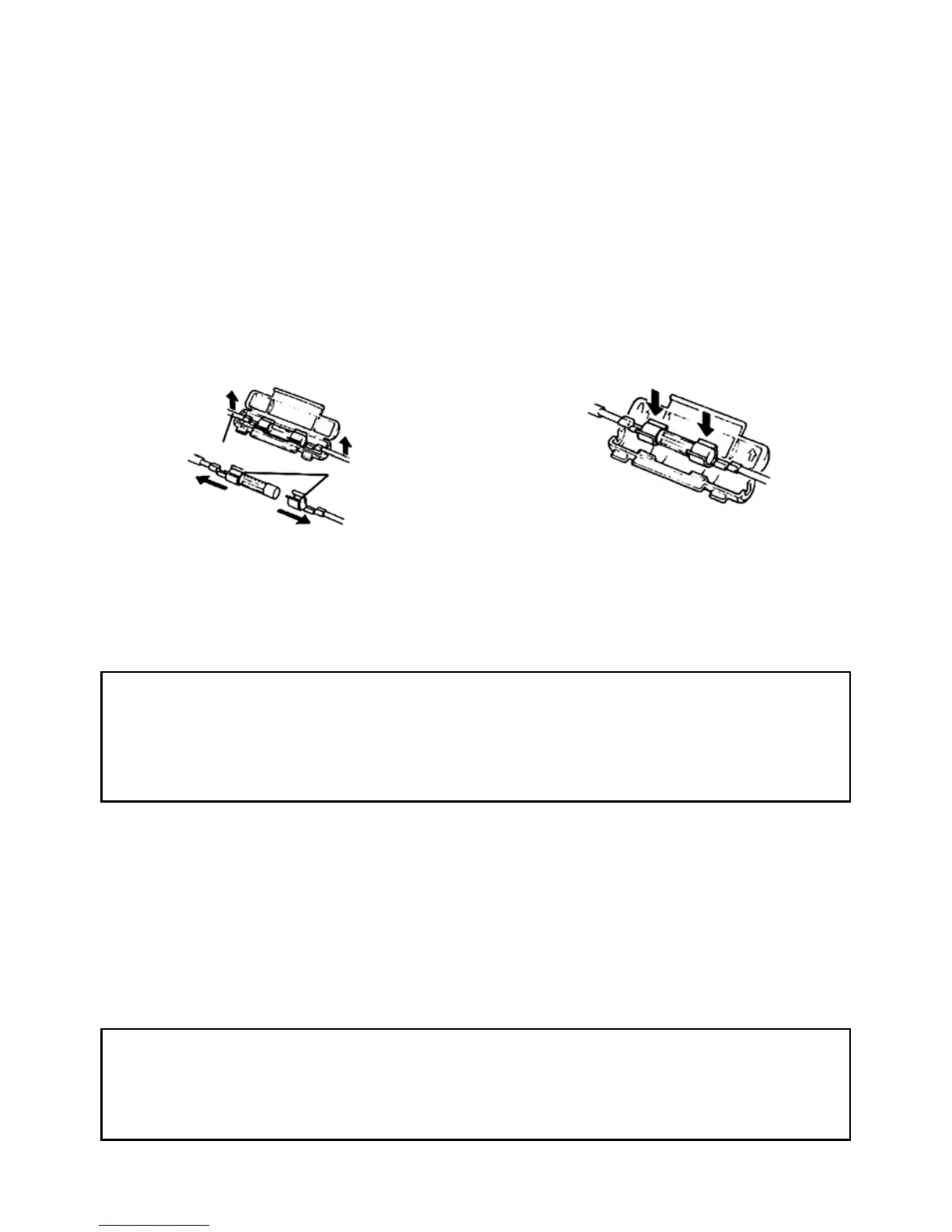

REMOVE INSTALLATION
Press in from above
Wire
Press in from
above
