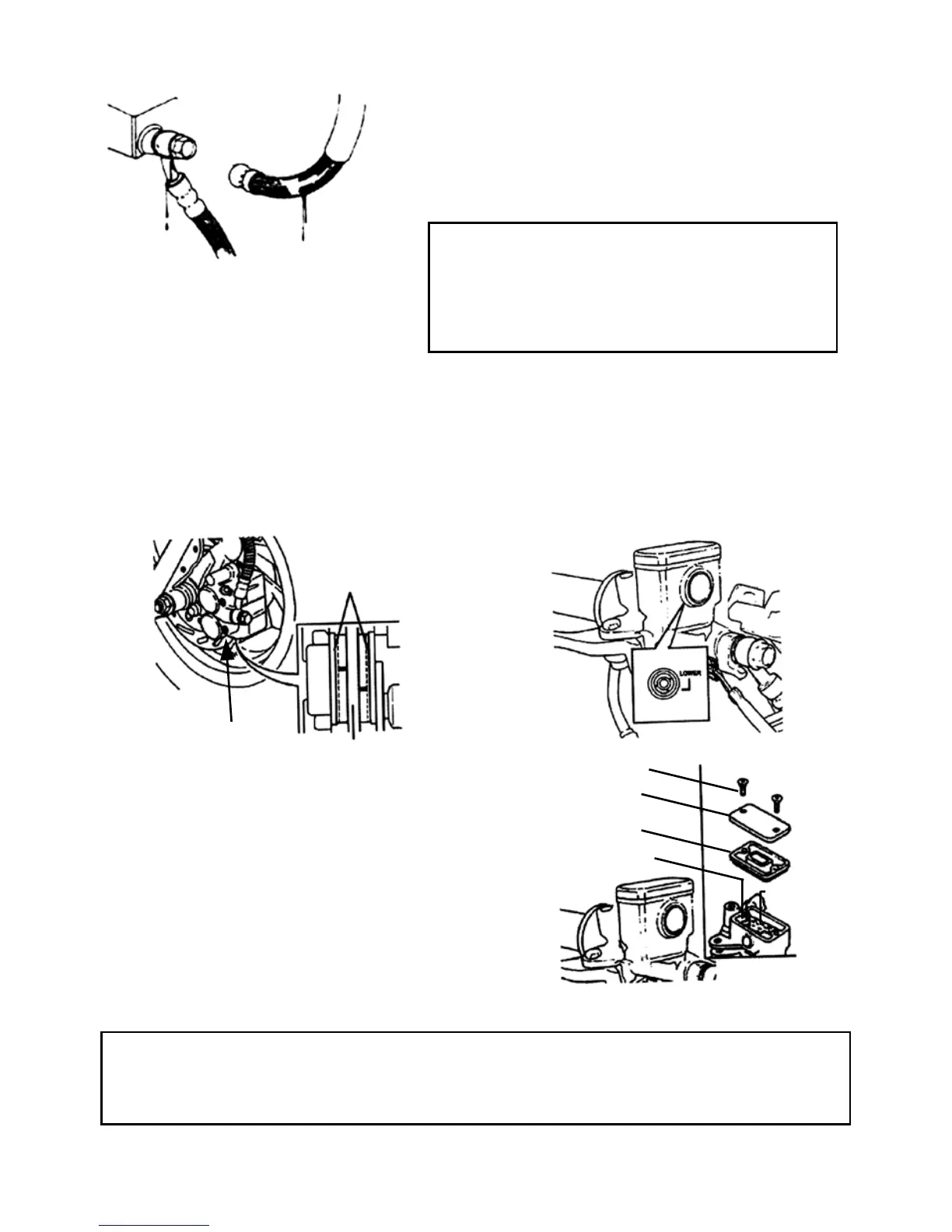

DISCBRAKESINSPECTION(applicableformodelequippedwithdiscbrakes.)
• Visual check brake lines for leakage, or damage, check
brake lines connections for looseness using a wrench or
similar tool, and check whether steering handle vibration
in driving, or any parts’ interference may have damage the
brake lines. If so, bring your twowheeler to your authorized
TOMOS dealer for repairing or service.
Checking front brake lining Checking oil quantity in brake oil tank
• Check the brake from behind the brake caliper. • Park the twowheeler on a lever ground,
The brake pad must be replaced with new and check if fluid lever is under the “LOWER” mark.
lining when the brake pad wear limit reaches Recommended Brake Fluid: BRAKE OIL (DOT 3).
the brake disc
Replenishmentoffrontwheelbrakefluid
1. Loosen the screws and remove the master cylinder cover.
2. Wipe clean foreign materials, dirt around the reservoir, being
careful not to let foreign materials fall into the reservoir.
3. Remove the diaphragm plate and the diaphragm.
4. Add brake fluid to upper lever.
5. Install the diaphragm plate and the diaphragm, and install the
master cylinder cover.
6. Please note the diaphragm direction, and do not let foreign
materials fall into the reservoir. And tighten the master cylinder
cover securely.
•CAUTION:
•To prevent chemical reaction, please do not use brake fluids other than those recommended.
•Do not fill above the upper limit when adding brake fluid and avoid dropping on painting or plastic components
to prevent damage.
(leak, damaged, looseness of brake line)
•WARNING:
When free play is between 10~20 mm, check brake
indicators of front and rear wheels. If the arrow on
the brake arm aligned with the “△” marked on the
brake disk, that means the brake lining has been
excessively worn, and must be replaced immediately.
, da
