INSPECTIONANDADJUSTMENTOFBRAKEFREEPLAY
INSPECTION: (Brake lever free play must be checked with the engine shut off.)
Brake lever and pedal free play for front and rear wheels.
• If checking the hand-braking lever for front wheels, its free play (the stroke of hand-braking lever from no
braking to initial braking) should be 10~20mm. It is abnormal if the feel is spongy when holding the hand-
braking lever forcefully.
• If checking the foot-braking pedal for rear wheels, its free play (the stroke of foot-braking pedal from no braking
to initial braking) should be 20~30mm. It is abnormal if the feel is spongy when press the foot-braking pedal
forcefully
Adjustment:(Drumtype)

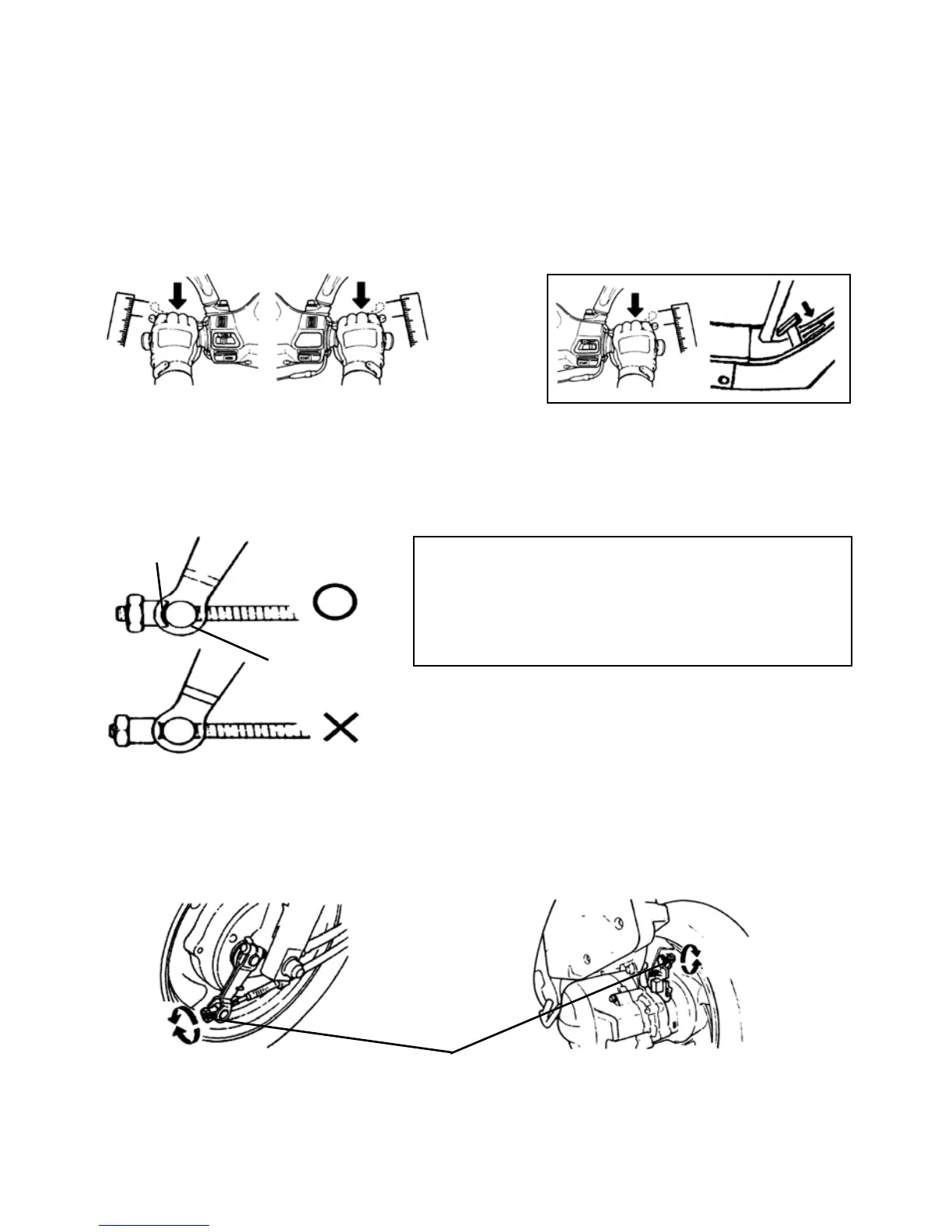

• The indentation of brake adjustment nut must be aligned with the pin. (see below figure)
• Turn the adjustment nut on brake arm of front and rear wheels to adjust the free play of hand-brake lever.
• Hold the hand-brake levers after adjusting with both hands until there is effective brake feeling.
• Measure the free play with a ruler.
10~20mm
Rear Wheel hand-brake type
10~20mm20~30mm
Rear Wheel foot-brake type
•CAUTION:
When free play is between 10~20 mm, check brake
indicators of front and rear wheels. If the arrow on the brake
arm aligned with the “△” marked on the brake disc, that
means the brake lining has been excessively worn, and must
be replaced immediately.
Moznik
Adjustment nut
Front wheel drum type
To decrease
free play
To increase
free play
Rear Wheel drum type
Adjustment nut
Pin
