Tomos NITRO 50 - Fuel Inspection; Transmission Oil Inspection and Change

44
OILCHANGE:
• Change engine oil after the first 300 km, and change the
engine oil every 3000 km thereafter.
• In order to maintain the engine’s maximum performance,
heck whether the engine oil is enough every 400 km.
Add oil to upper limit if the engine oil has been found to be low.
• Engine oil: Use 4X (API) SH /CD SAE 10w-30 grade or
greater engine oil. Otherwise, damage will not be covered
by warranty.
• Oil capacity: 29 oz. (25 oz. for routine change), oil filter change: 25 oz..
(Oil Filter Cleaning)
• The oil filter nut assembly of the element, and remove
the element. Remove the foreign materials from the element
by using a gasoline or air spraying gun.
OilFilterCleaning
The oil filter nut assembly of the element, and remove the
element. Remove the foreign materials from the element by
using a gasoline or air spraying gun.
•WARNING:
•Oil level will not be correct when checking the oil level with the
twowheeler parked on an unleveled ground or immediately
after the engine stopped.
•Engine and exhaust pipe are hot right after engine stopped.
Pay special attention not to get burned when checking or
replacing engine oil.
•If the oil lever approaches lower limit again after refilled,
check the engine for leaks and refill it again.
•Keep away from spark and flames when refilling.
FUELINSPECTION
• Turn main switch key to “ON” position, and check fuel gauge’s needle range to make sure there is enough
amount of fuel in the fuel tank.
• This twowheeler’s engine is designed for using the unleaded fuel of Octane 95 or above.
• Firmly secure the main stand on the ground, shut off the engine and keep flames away from the twowheeler
when refueling.
• Do not fill above fuel upper limit lever when refueling.
• Make sure the fuel tank cap had been tighten properly.
TRANSMISSIONOILINSPECTIONANDCHANGE
INSPECTION:
• Use the main stand to support the twowheeler on a level ground, after the engine stops, wait for 3~5 minutes.
Remove the transmission oil infusion bolt, put a measuring glass under the drain bolt, and remove the drain
bolt. Let the oil flow into measuring glass and check for decrease. (at disassembly: 25 oz./at change: 25
oz.).
OILREPLACEMENT:
• Stop the engine and use the main stand to support your twowheeler on a lever ground. Remove the infusion
bolt and drain bolt, drain out the oil.
• Install the drain bolt and tighten it. Fill new transmission oil (0,74 l), and install the infusion bolt and tighten it.
(make sure that bolts are tightened and check that there’s no leakage.)
• Recommended Oil: Genuine GEAR OIL (SAE 85W-140).

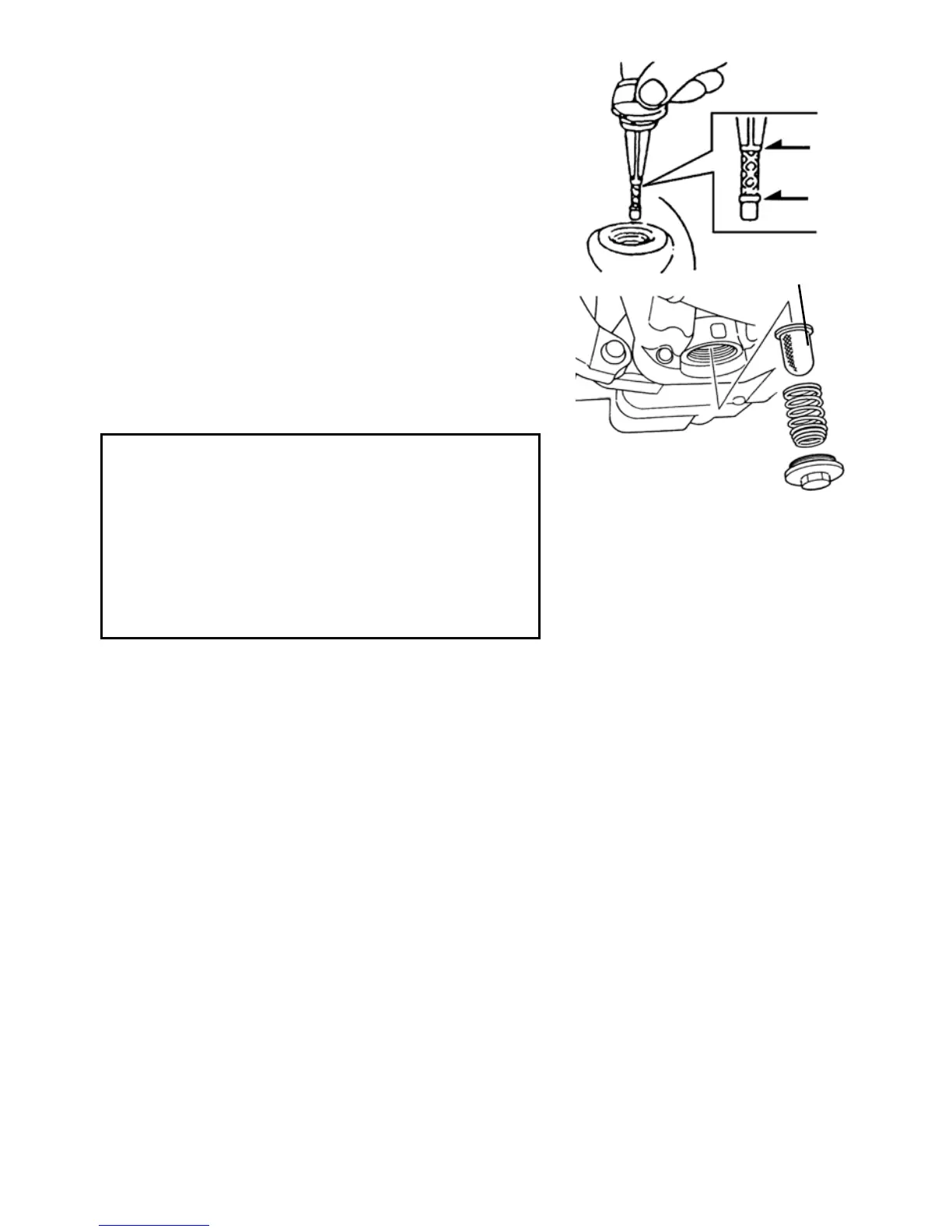

Filter nut
Upper limit
Lower limit
Oil filter
