14 DETACH/ATTACH OF TRIBRACH

14-1

14 DETACH/ATTACH OF TRIBRACH

The instrument is easily detached or attached to the tribrach.

• Detachment

1) Loosen the tribrach fixing screw.

2) Loosen the tribrach fixing lever by turning counterclockwise.

3) Lift the instrument straight upwards and off.

• Attachment

1) Coincide the white alignment piece on the lower part of the instrument with the tribrach

alignment groove.

2) Tighten the tribrach fixing lever firmly by turning clockwise.

3) Tighten the tribrach fixing screw.

• Locking the Tribrach Fixing lever

The tribrach fixing lever can be locked from being moved accidentally. This is useful if the upper

instrument section is not being detached very often. Simply tighten the securing screw on the fixing

lever with the accessory screw driver.

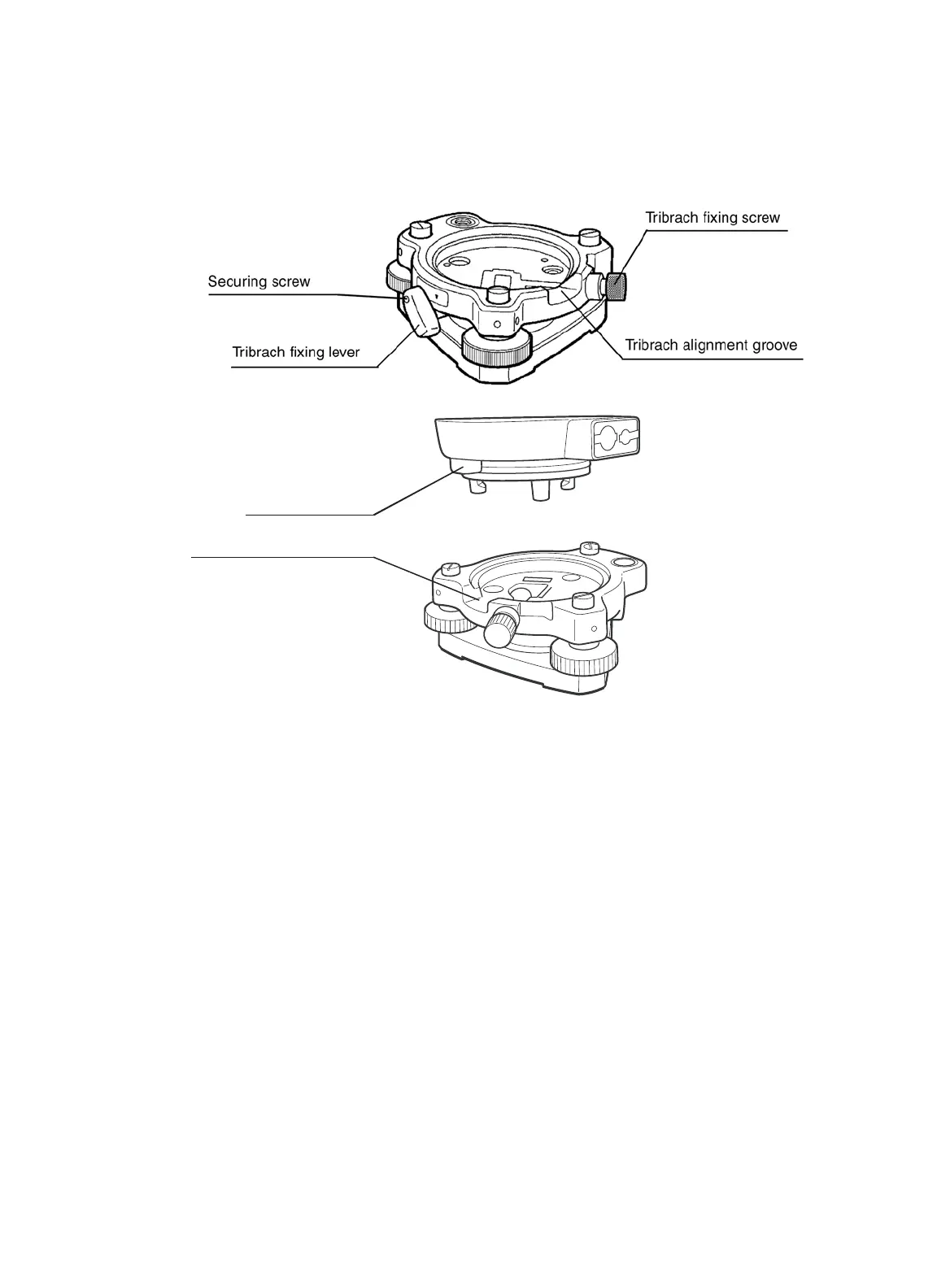

Alignment piece

Tr ib ra ch a lignment groove
