5 PROGRAM MODES
5-3

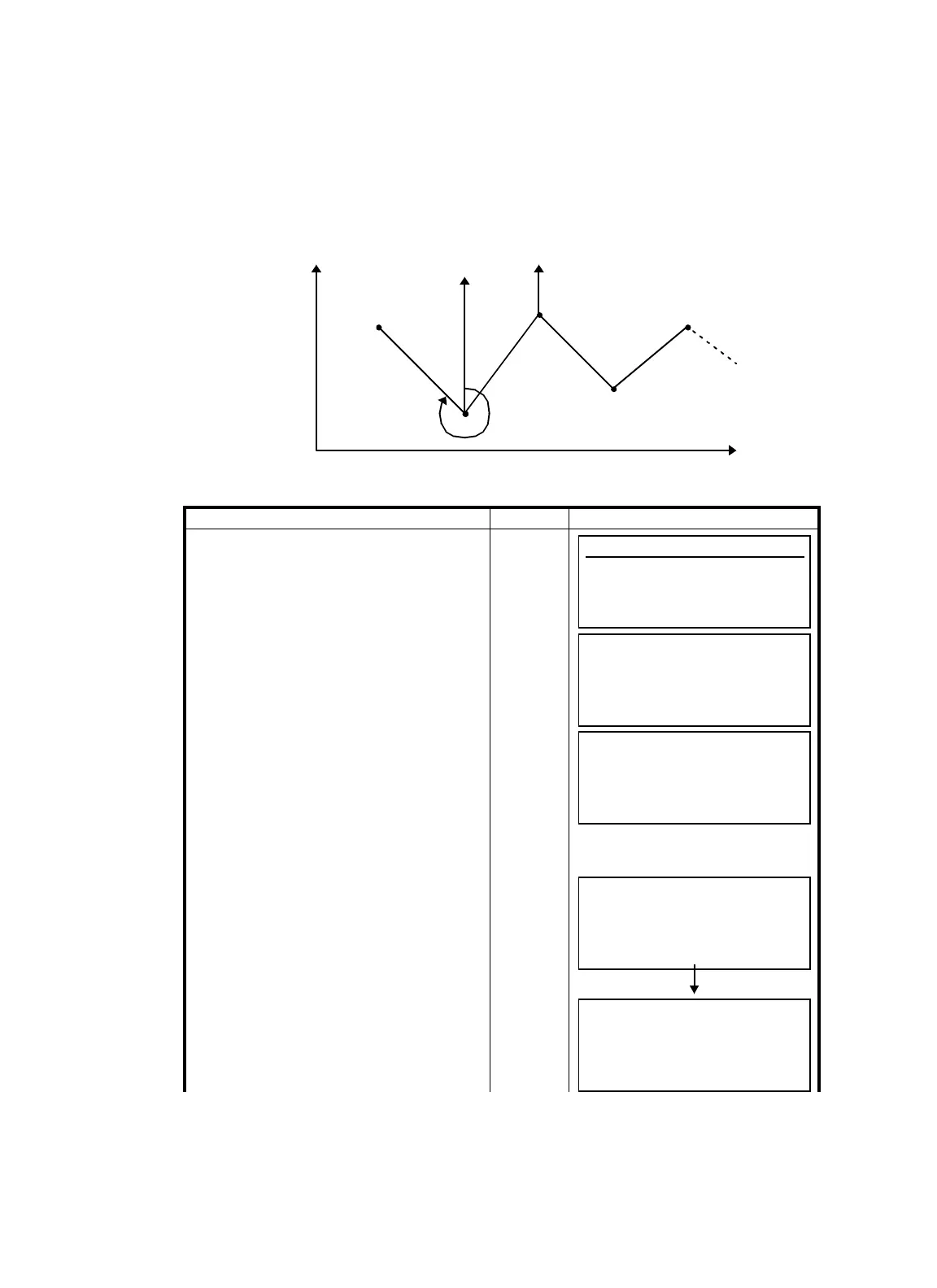

5.2 Retaining a Coordinate (STORE- NEZ)
Suppose the instrument P0 moves to P1, P2, P3, etc. and the coordinate at P1, P2, P3 etc., last point
will be retained in the memory, after moving, as from the origin point.
●
Set the coordinate value of instrument point P
0
and set the direction angle from instrument point P0
toward known point A
.
Operating procedure Operation Display
1 Press [F2](STORE) key.
[F2]
2 Press [F1](Store NEZ) key. *1)
[F1]
3
Collimate target P1 prism which the
instrument moves.
Collimate
P1
4 Press [F1](MEAS) key.
Measuring will start.
[F1]
Horizontal distance and horizontal angle are
shown.
Origin (0,0,0)
P
3
P
2
P
1
N
Direction angle
Known point A
E
Inst. point P
0
Programs
F1 BS p 4/7
F2 STORE p
F3 REM p
F4 MLM p MORE
Retaining Coordinate
1.St
ore NEZ
2.Recall NEZ
Store NEZ
HR : 120°30'40"
HD : m
MEAS HT SET
Store NEZ
HR : 100°10'20"
HD * < m
MEAS SET
Store NEZ
HR : 100°10'20"
HD * 123.456 m
MEAS
SET
