4 STANDARD MEASUREMENT MODE
4-11

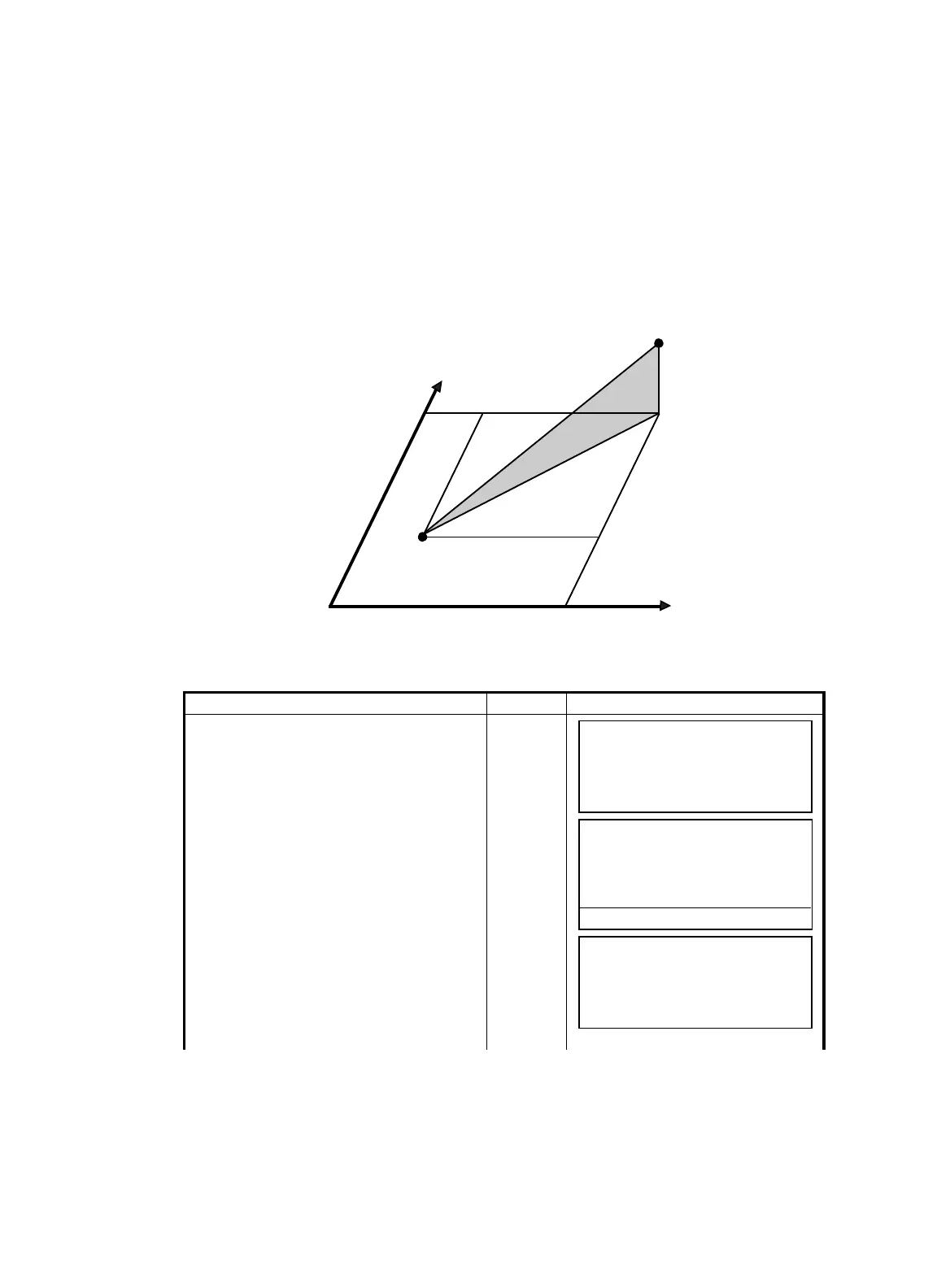

4.3.1 Setting Coordinate Values of Occupied Point
The occupied point coordinates (NEZ) can be preset in the GPT-8000A/8000 Series to calculate the
unknown point coordinates. It is possible to retain the occupied coordinates in memory once the
power is turned OFF if the (NEZ mem) is ON in the Parameter Setting Modes. IF (NEZ mem) is OFF
in the Parameter Setting Modes, the occupied coordinates will be retained only if you choose
(Resume ON) when shutting the power OFF.
For instructions on how to select NEZ memory ON/OFF, refer to Chapter 8 “PARAMETERS
SETTING MODE”.
N
E
z
n
e
Prism (n,e,z)
Inst.PointC
Origin(0,0,0)
Confirm the angle measurement mode.
Operating procedure Operation Display
1 Press [F3](NEZ) key.
2
press [F6](
↓
) key to get the function as on
page 2.
[F3]
[F6]
3 Press [F5](SET) key.
The previous data will be shown.
[F5]
V : 90°10'20"
HR: 120°30'40"
SD HD NEZ 0SET HOLD P1
↓
N : <
E : PSM 0.0
Z : PPM 0.0
(m) *F.R
MEAS MODE VH SD HD P1
↓
TURN HT MEAN m/ft SET P2
↓
Setting occ. point
N : 12345.6700
E : 12.3400
Z : 10.2300
EXIT BS
