16 PRISM SYSTEM

16-1

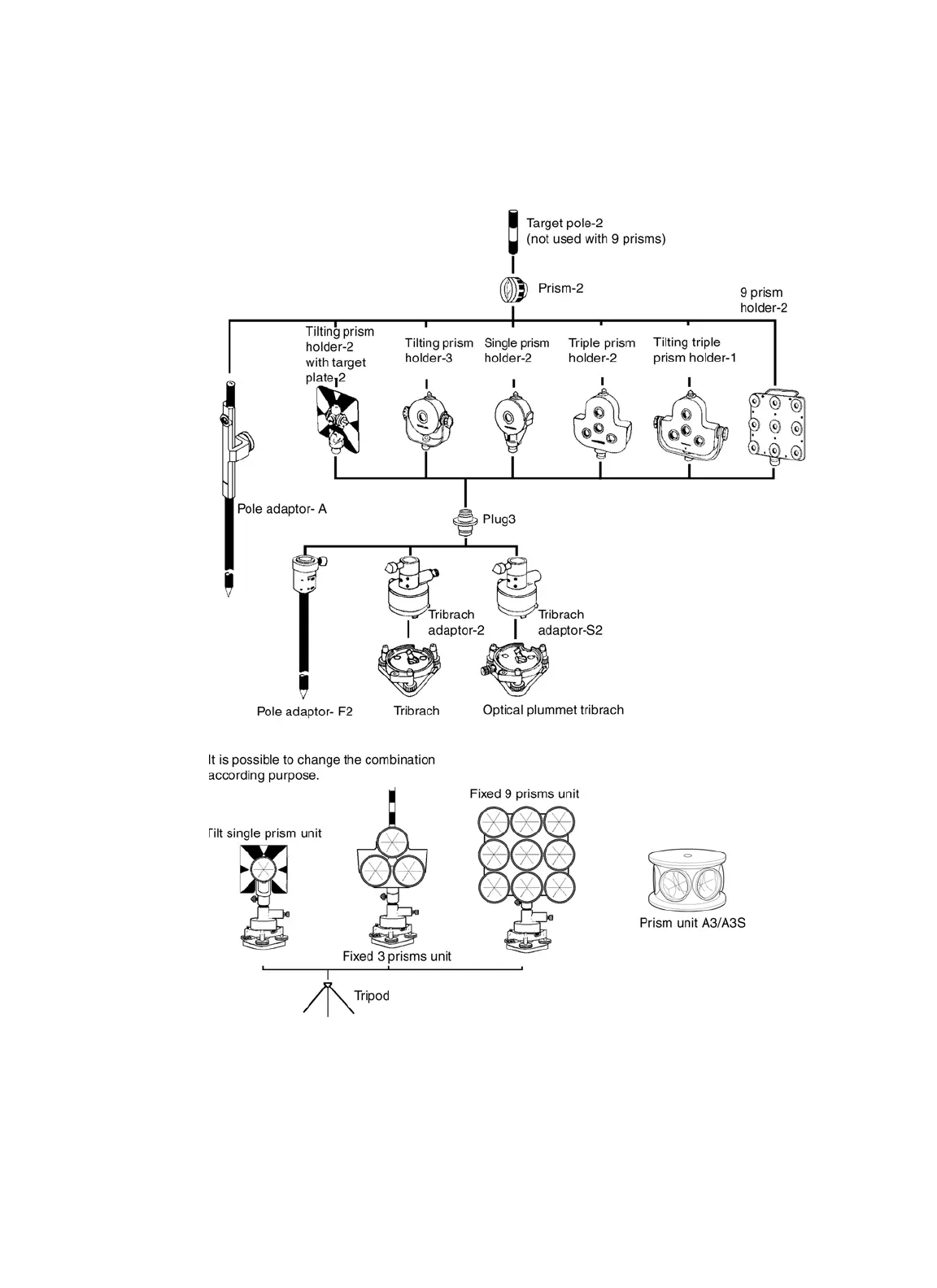

16 PRISM SYSTEMS

Arrangement according to your needs is possible.

Use the above prisms after setting them at the same height as the instruments. To adjust the height

of prism set, change the position of fixing screws.

Plug 3 is necessary for the tribrach adaptor-2, tribrach adaptor-S2 and pole adaptor-F2 to coincide

with the height of GPT-8000A/GPT-8000 series.
