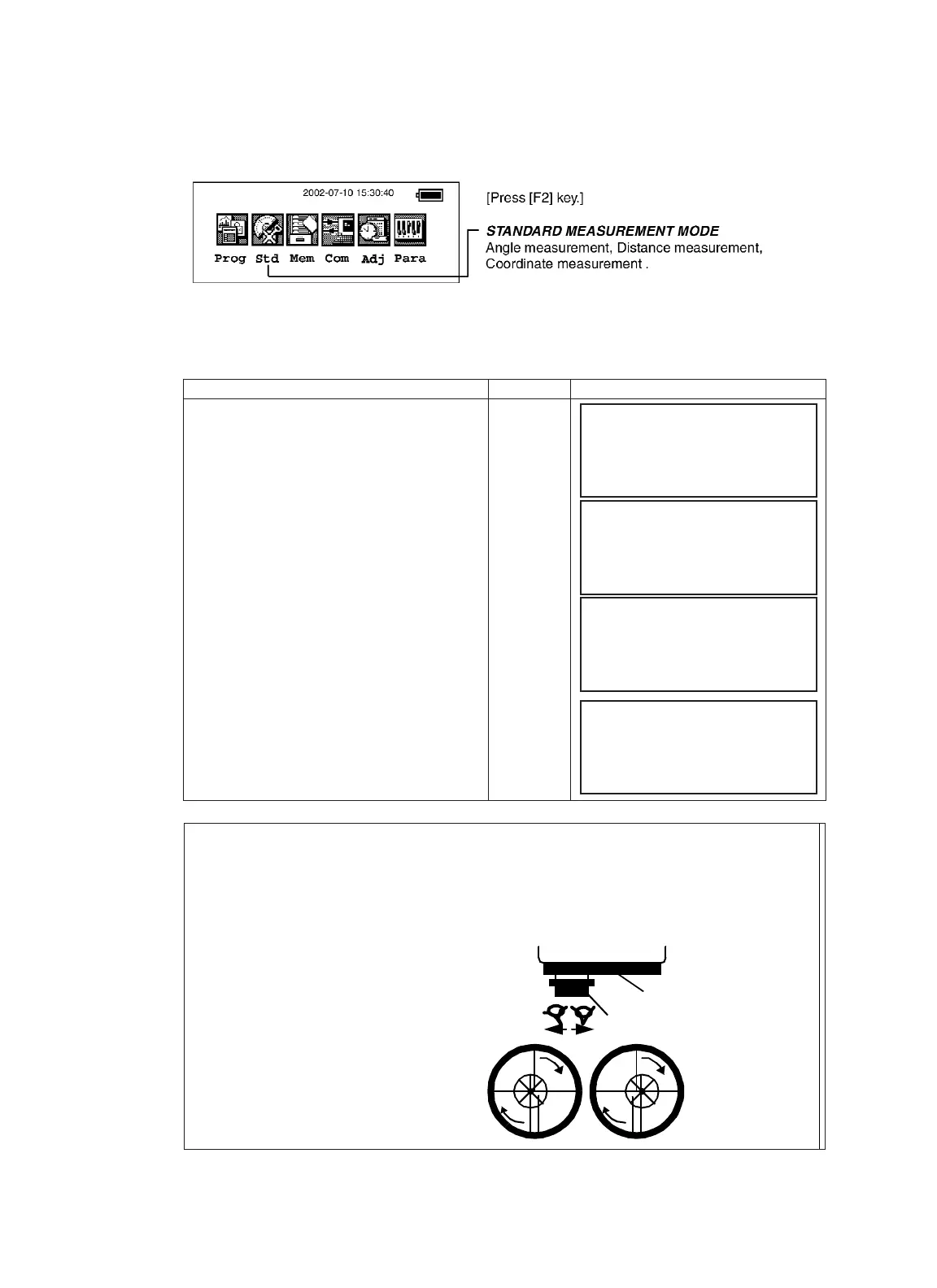

4 STANDARD MEASUREMENT MODE
4-1
4.1 Angle Measurement
4.1.1 Measuring Horizontal Angle Right and Vertical Angle
Make sure the mode is in Angle measurement.
4 STANDARD MEASUREMENT MODE
Operating procedure Operation Display
1
Collimate the 1st target (A).
Collimate
A
2
Set horizontal angle of target A at 0
°
00' 00".
Press [F4](0 set) key and [F6](SET) key.
[F4]
[F6]
3 Collimate the 2nd target (B).
The required H/V angle to target B will be
displayed.
Collimate
B
V : 87°55'45"
HR: 180°44'12"
SD HD NEZ 0SET HOLD P1
↓
H-0SET
HR: 00°00'00"
ESC SET
V : 87°55'45"
HR: 00°00'00"
SD HD NEZ 0SET HOLD P1
↓
V : 87°55'45"
HR: 123°45'50"
SD HD NEZ 0SET HOLD P1
↓
Reference : How to Collimate
1Point the telescope toward the light. Tu rn the diopter ring and adjust the diopter so that the cross
hairs are clearly observed.
(Turn the
diopter ring toward you first and then backward to focus.)
2
Aim the target at the peak of the triangle mark of the sighting collimator. Allow a certain space
between the sighting collimator and yourself for collimating.
3
Focus the target with the focusing knob.
*If parallax is created between the cross
hairs and the target when viewing
vertically or horizontally while looking
into the telescope, focusing is incorrect
or diopter adjustment is poor.
This adversely affects precision in
measurement or survey. Eliminate the
parallax by carefully focusing and using
diopter adjustment.
Focusing knob
Te l e s co pe eyepiece (Diopter ri )
Åá
Åá
Åá
Åá
