Topcon GPT-8003A User Manual

5 PROGRAM MODES
5-19
5.6.3 Plane Offset Measurement
Measuring will be taken for the place where direct measuring can not be done, for example distance
or coordinate measuring for a edge of a plane.

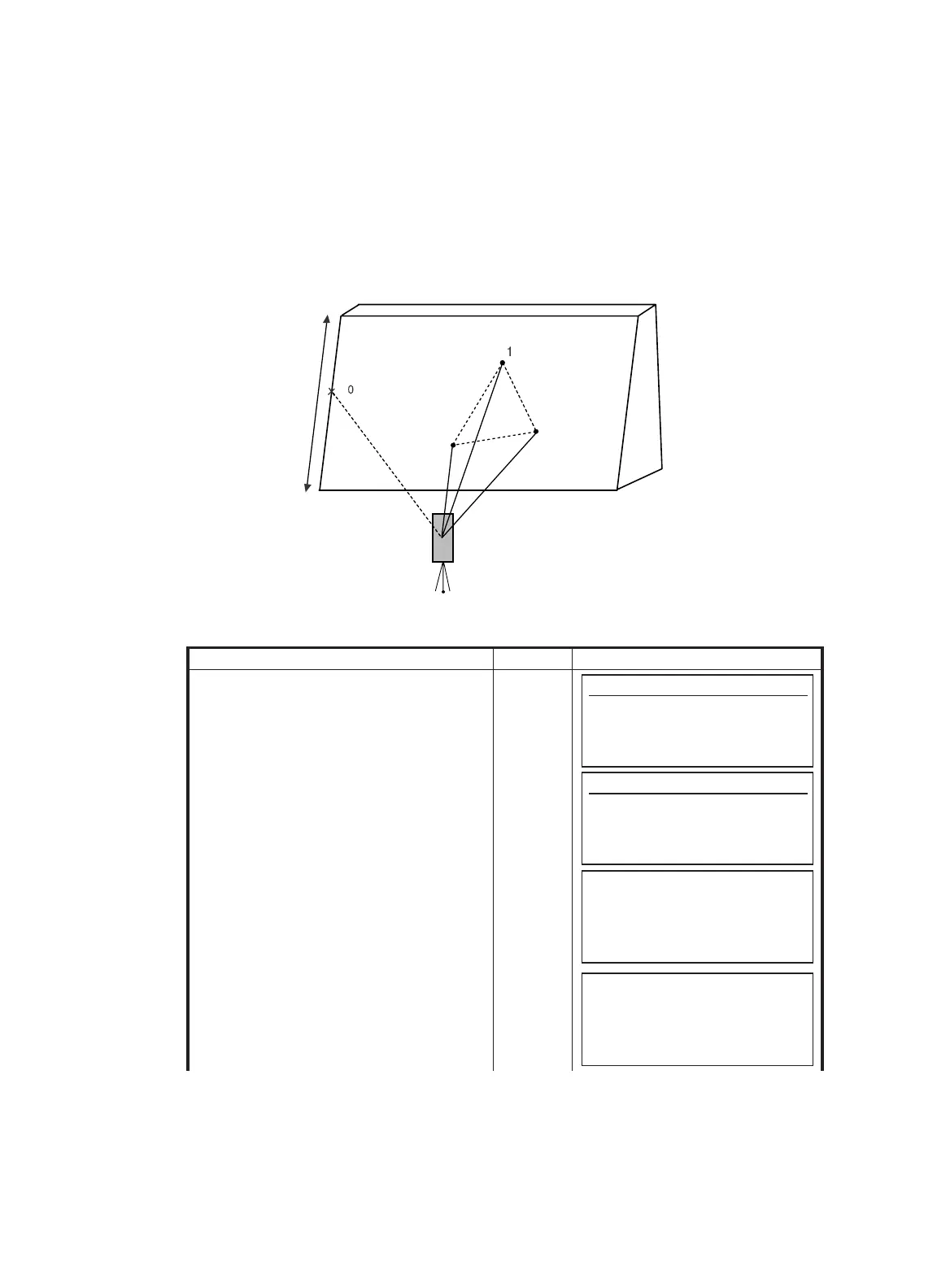

Three random target points (P1, P2, P3) on a plane will be measured at first in the plane offset meas-
urement to determine the measured plane. Collimate the measuring target point (P0) then the instru-
ment calculates and displays coordinate and distance value of cross point between collimation axis
and of the plane.
Operating procedure Operation Display
1
Press [F6](MORE) key from programs menu
to get to the next page of programs.
[F6]
2 Press [F2](OFFSET) key.
[F2]
3
Press [F3](PLANE OFFSET) key.
Measurement screen of three points on a
plane will be shown.
[F3]
P
P
P
2
3
P
Tar get h eights of P1 to P3 is set to zero automatically.
Edge
(Prism)
(Prism)
(Prism)
(Point without prism)
Programs
F1 BS p 4/7
F2 STORE p
F3 REM p
F4 MLM p MORE
Programs
F1 LINE
p 7/7
F2 OFFSET p
F3 EXT.LINK p
MORE
OFFSET MEASUREMENT
1.ANGLE OFFSET
2.DIST. OFFSET
3.PLANE OFFSET
4.COLUMN OFFSET
PLANE
OFFSET
N001#
SD : m
MEAS HT
