• During auto rotation, don't disturb the instrument.(Stopping the rotation with a touch of the

hand). Such action may cause trouble or harm to instrument or operator.

See Section 1.5 “Star key mode” for further instructions.

1.8.3 Rotating automatically to a required Horizontal and Vertical angle

In Standard Measurement Modes, the instrument can be rotated automatically by input a required

horizontal and/or vertical angle.

For further instructions, see Section 4.1.5 “Automatic Rotation to a Required Horizontal and Vertical

Absolute Angle” .

• Attaching Precaution Label

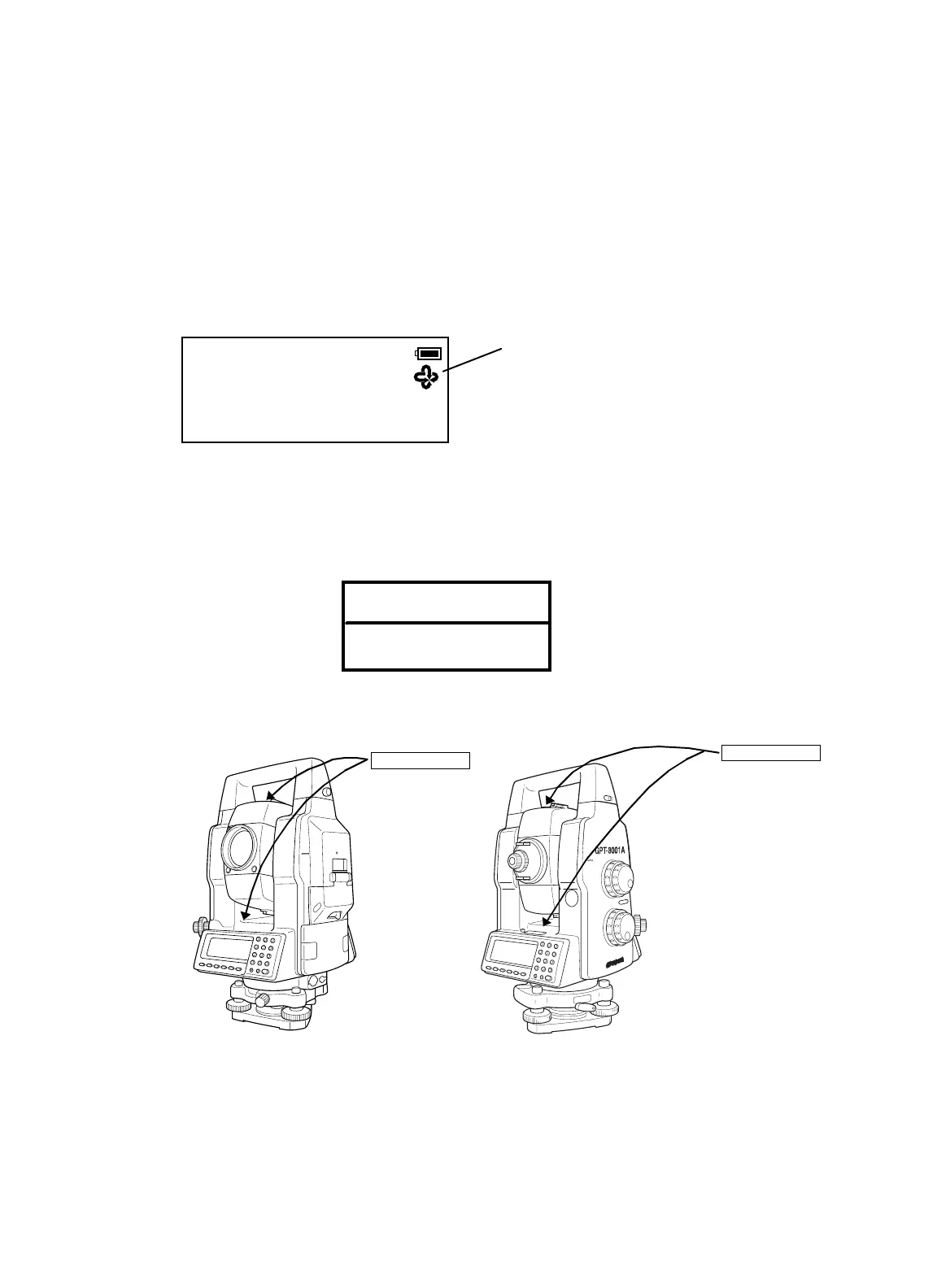

Attach 4 precaution labels to the instrument in specified places to avoid the unexpected

accident such as pinching fingers between telescope and body of instrument or telescope

and hand grip during automatic rotation.

This mark will appear while the

instrument is rotating automatically.

V : 87°55'45"5

HR: 180°44'12"5

SD HD NEZ 0SET HOLD P1

↓

Do not place fingers near

telescope during rotation.

Caution label

CAUTION

● Attach upper side of telescope and near the plate level

Caution label

• Attach upper side of telescope and near the plate level.

Topcon GPT-8003A User Manual
