MAINTENANCE AND INSPECTION
3 Loosen the connector hook screw with a Phillips screwdriver. Then, turn the connector hook.
4 Remove the connector from the xenon lamp.
5 Pull the locking hook toward you and remove the xenon lamp.
6 Mount a new xenon lamp and then push the locking hook until the lamp is locked.
When a xenon lamp is mounted, turn the xenon lamp a little at a time while pushing the locking
hook into it. This will cause the xenon lamp to be mounted smoothly.
7 Set the connector.
8 Push the connector hook and affix it with the screw.
9 Mount the lamp house cover.

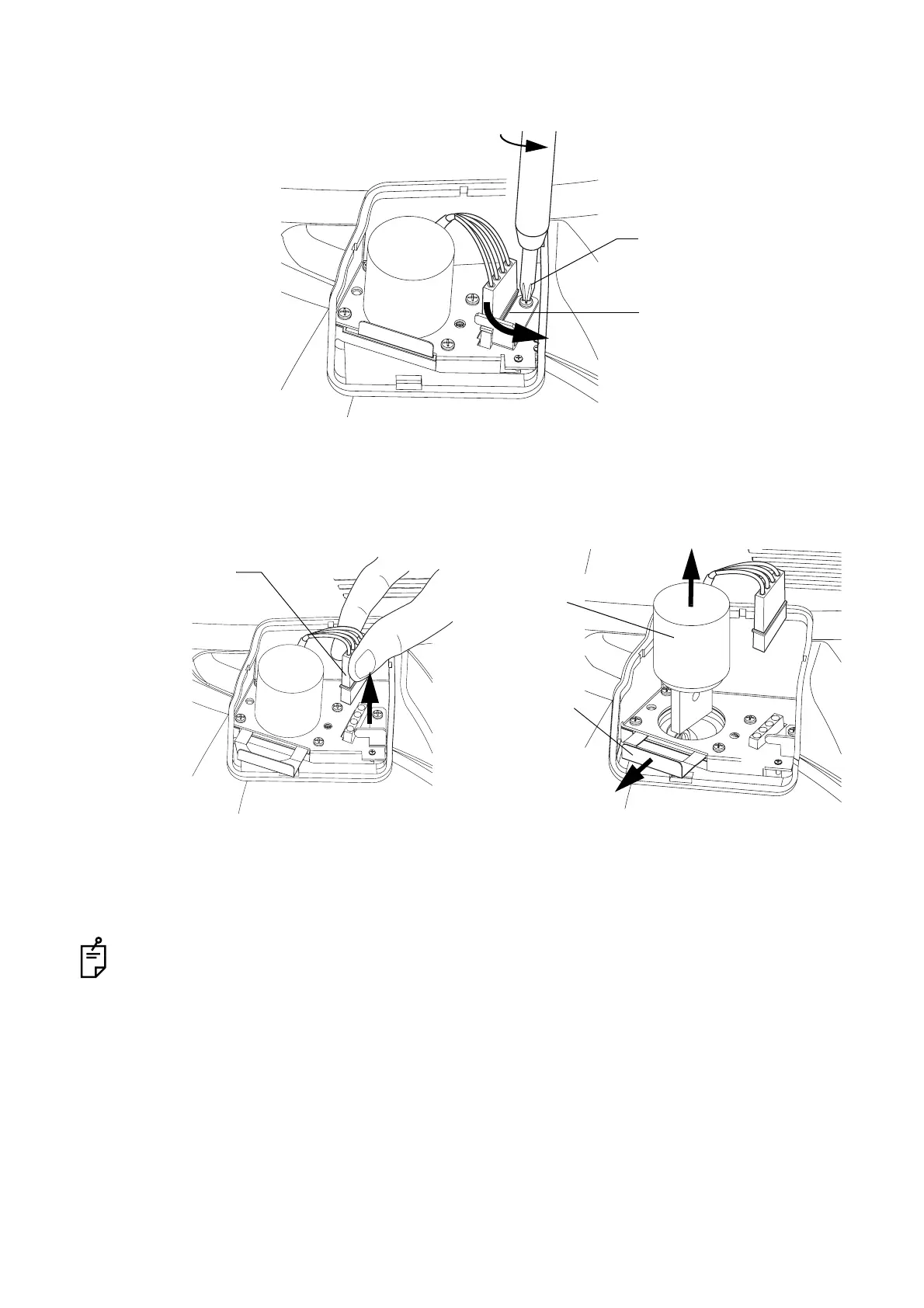

Screw
Connector hook
Removing the connector
Locking hook
Removing the xenon lamp
Xenon lamp
Connector
