MAINTENANCE AND INSPECTION
MAINTENANCE AND INSPECTION
MAINTAINING ACCURACY
Photography window
When the lens of the photography window is dirty, the monitor screen may be hard to view or a clear
image may not be obtained. Make sure that the photography window is not dirty before using the
instrument. If the photography window is dirty, clean it.
Adjusting the monitor screen
For this instrument, the optimum screen adjustment is made prior to shipping. However, screen adjust-
ment may be necessary due to vibrations during transportation.
Adjust luminance by turning the brightness volume.
Replacing the xenon lamp
1 Make sure that the power of the instrument is turned OFF and that the power cord is removed
from the outlet.
2 Remove the lamp house cover.

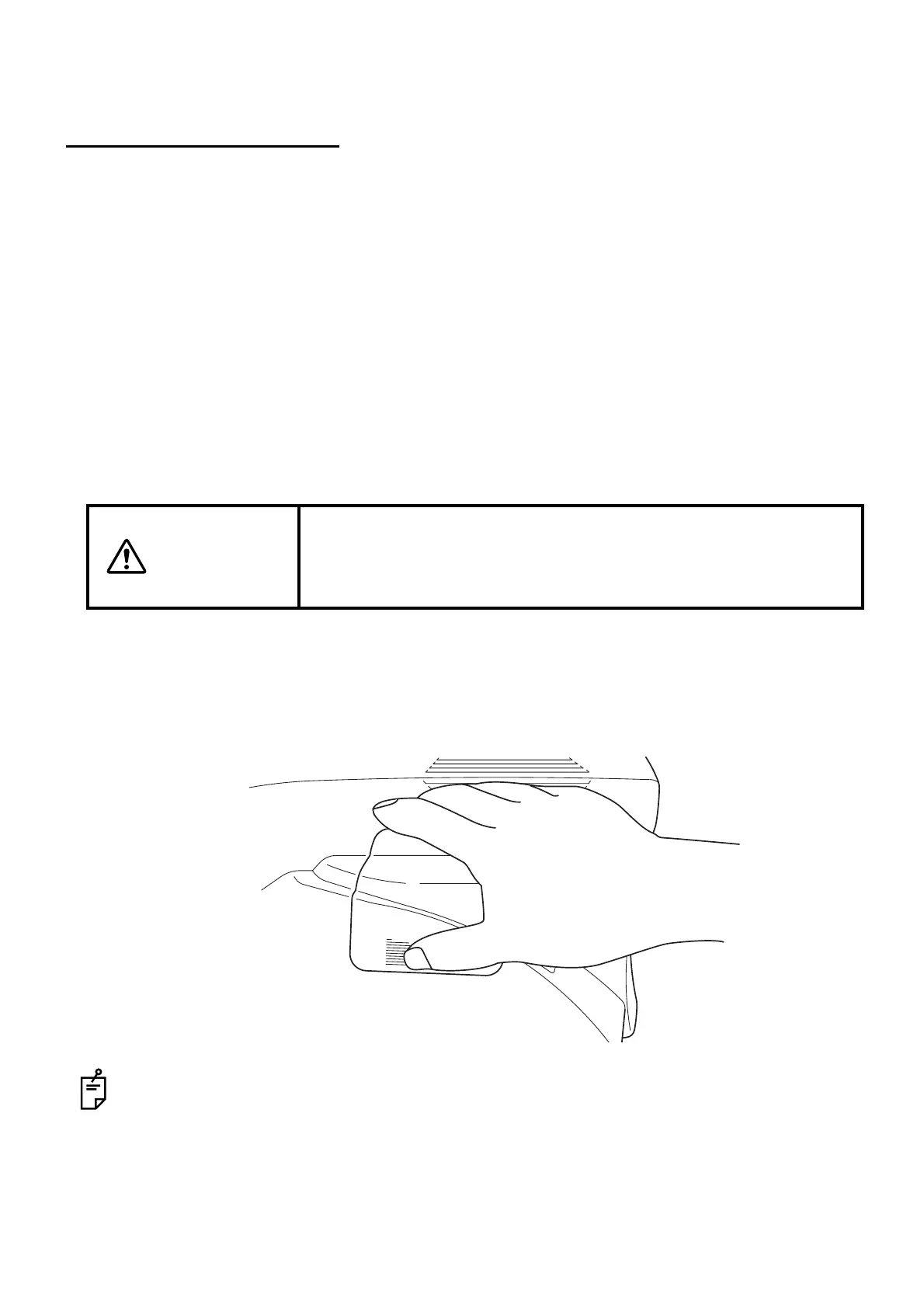

There is a slotted section (striped section) on the side of the lamp house cover. While pushing this
section with your finger tip, pull the lamp house cover up and remove it.
CAUTION
To avoid damage to the instrument or electric shock, turn the power
switch OFF and unplug the power cord before replacing the xenon lamp.
Do not use any other types of xenon lamp except the type that is speci-
fied in this manual.
