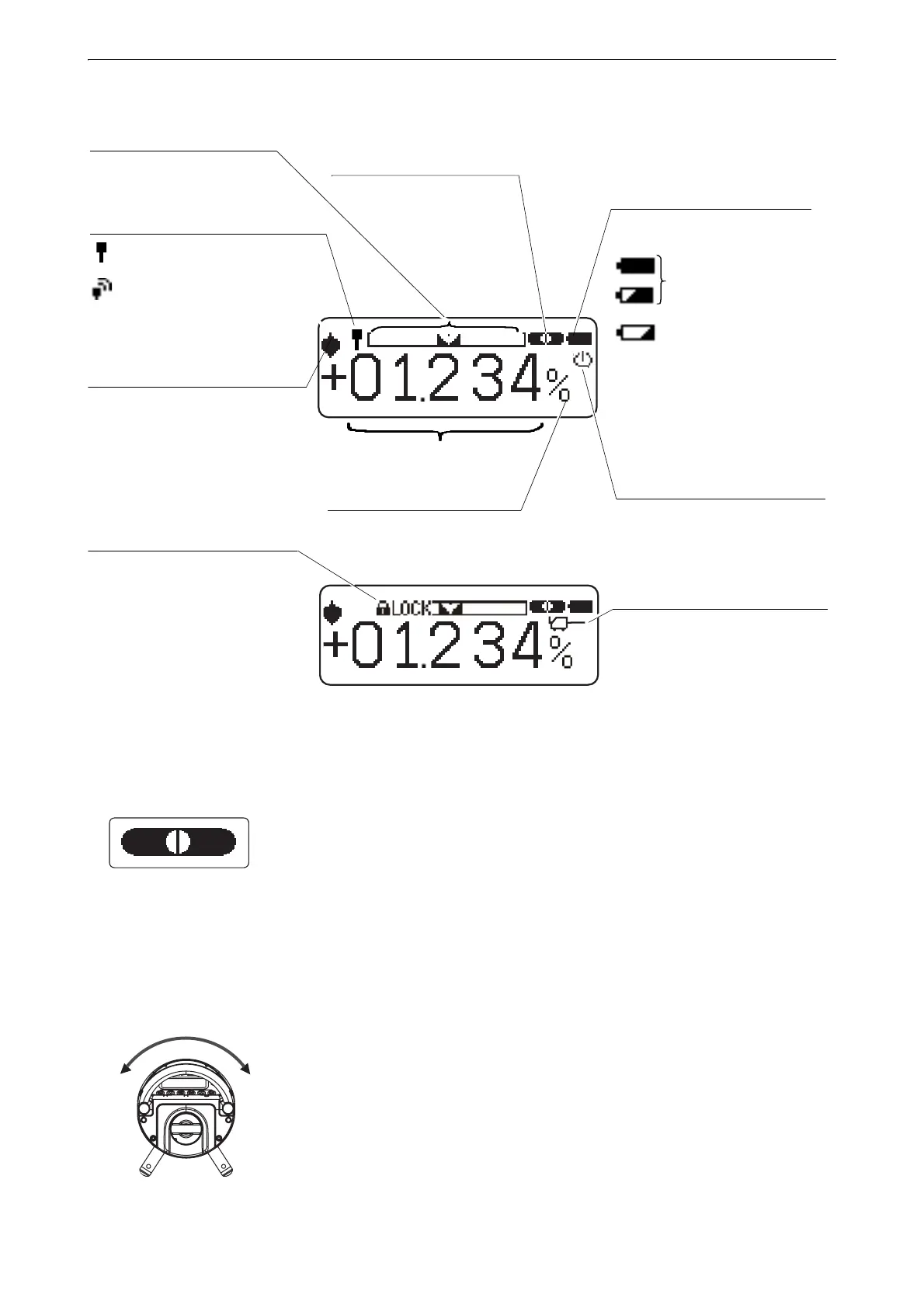

4. PRODUCT OUTLINE
Laser line indicator
Indicates the direction of the
laser line.
Upper/Lower laser indication /
Digital level vial, rotate
instrument until centered
Battery warning indication
Remaining battery capacity is
shown in 3 steps.
Grade indication
Lock indication
Indicates when the instrument
is locked.
Percent or Permil symbol
Laser mode indication
Auto leveling indication
(Flashing)
Flashes when the instrument is auto
leveled. After auto leveling is
finished, the display changes laser
mode.
Indicates the laser mode.
"6.4 Setting Centerline LED/
Setting Laser" (p.26)
Power remaining for
operation
Operating time is limited.
Recharging or an alternate
battery will be required
soon.
Bluetooth indication
The Bluetooth power supply
is ON.
Bluetooth is already connected.
Centerline LED indication
“Permil” is not indicated in some of
the regions where the customers
purchased the instruments.
Sometimes the indicated matter is dimly seen according to the seeing angle.
This is a characteristic of the display unit being used.
Level vial display indicates instrument rotation status
When the instrument is titled sideways or the unit is first turned on, the small level
vial indicator on the display enlarges to fill the entire display to aid the user in
accurate instrument setup.
"6.5 Setting Display Method" (p.29)
