6. BASIC OPERATION
Setting ON/OFF of Upper/Lower laser and Centerline LED
• Set ON/OFF of Upper/Lower laser. (TP-L6WGV/WAV only): "V-LD" is indicated on the screen.
• Set ON/OFF of Centerline LED. (TP-L6WG/WBG/WA/WB only): "V-LED" is indicated on the screen.
Factory setting : [OFF]
* 1: Press [Menu mode] key, and the instrument returns to the “Basic screen” status.
* 2: Press [Menu mode] key, and the instrument returns to the “Procedure 1” status.
* 3: The menu number is changed according to models.
When operating through RC-500
1. Make sure that the basic screen is indicated on the TP-L6W.
2. Press [
Upper-Lower laser]/[Centerline LED] key.
Upper/Lower laser or Centerline LED is ON.
Each time you press the key, ON and OFF are changed to each other.
For the details of RC-500, "8.2 Remote Controller (RC-500 )" (p.43)
6.4 Setting Centerline LED/Setting Laser

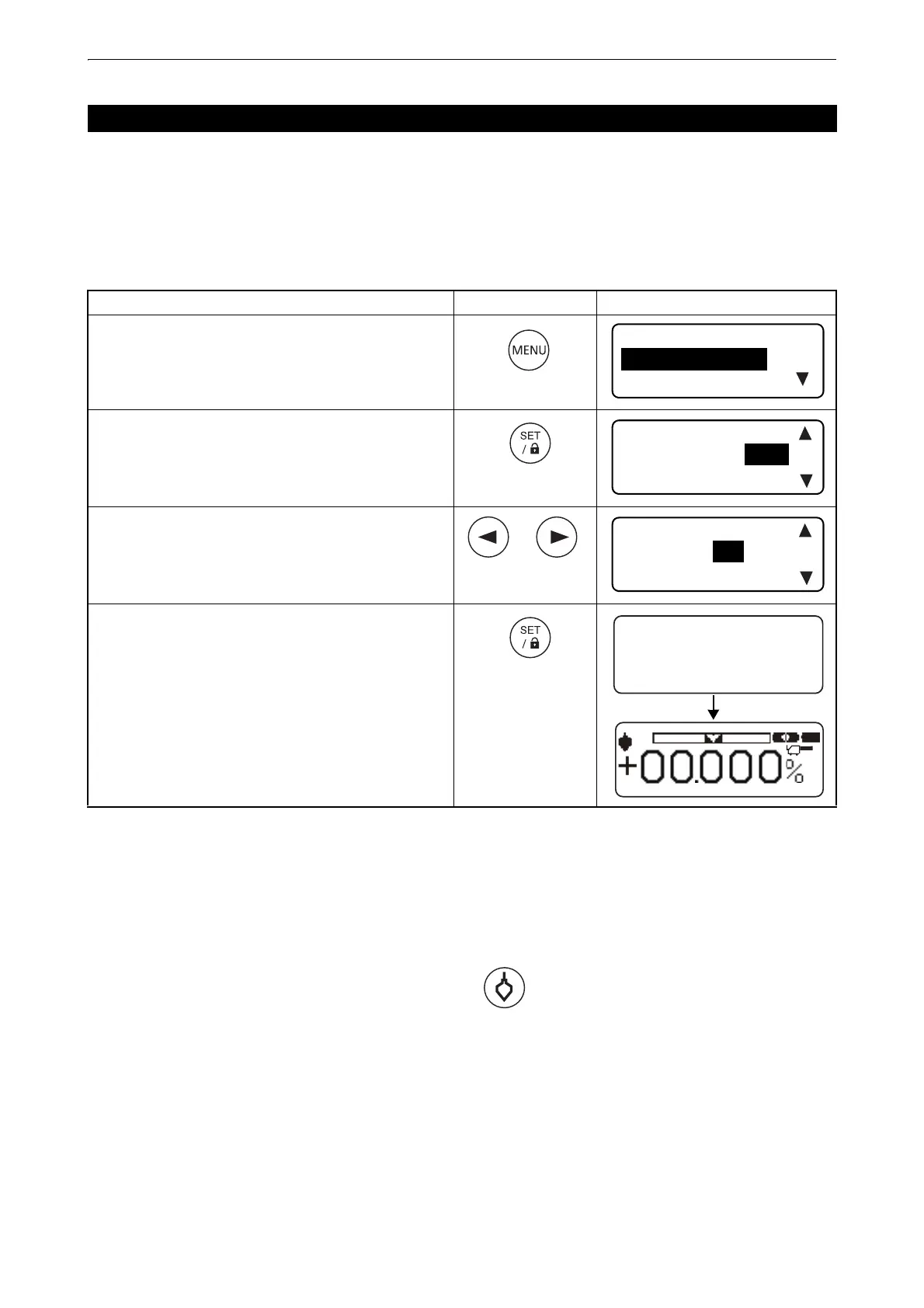

Procedure Key operation Display
1. Press [Menu mode] key. *1
2. Press [Set/Lock] key. *2
3. Press [Right] key or [Left] key to highlight
[ON]. *2
4. Press [Set/Lock] key.
Setting is completed.
Upper-Lower laser / Centerline LED key
To Next Page
