Topcon TP-L6 Series User Manual

42
8. STANDARD ACCESSORIES
Four sets of centering feet are provided with the TP-L6W. The feet provided with TP-L6W will center the laser
beam inside the following diameters of pipe:
150mm (6"), 200mm (8"), 250mm (10") and 300mm (12")
They can also be used to set laser on top of the pipe or on a flat surface.

How to install the instrument to a pipe whose diameter is not 150mm (6"), 200mm (8"), 250mm (10") and
300mm (12") or on top of pipe

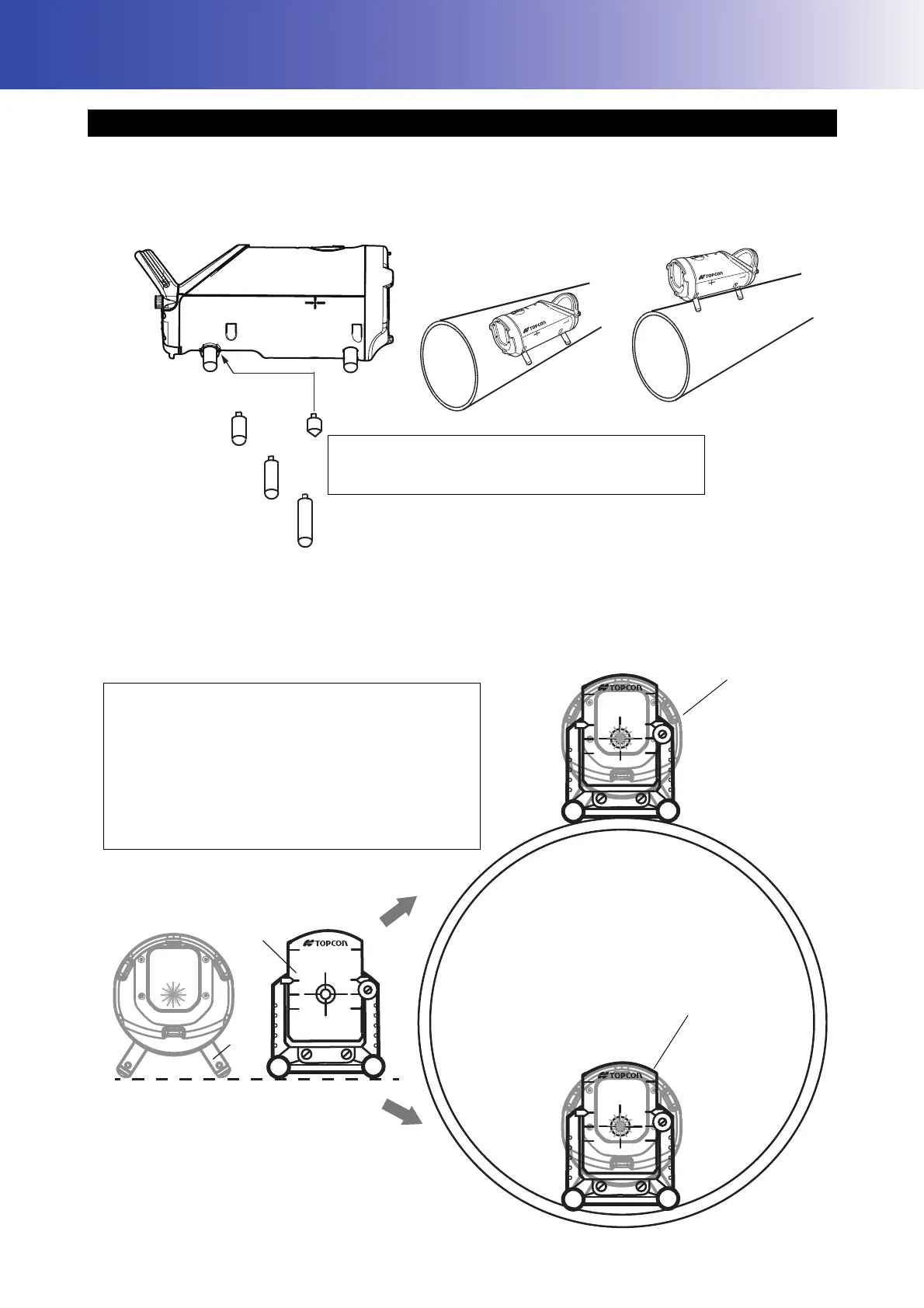

As shown below, use the self-centering feet for 200mm (8") on the TP-L6W and align the target (small) height
with 200mm. Only under this condition, the laser center is set at the same height as the target center.
8.1 Self-centering Feet
150mm / 6"
200mm / 8"
250mm / 10"
300mm / 12"
When the TP-L6W is unstable under the condition that the four
self-centering feet are used for installing, it can be installed
securely by using the single point foot.
200mm
200mm
200
225
250
150
mm
200
225
250
150
mm
200
225
250
150
mm
200
225
250
150
mm
200
225
250
150
mm
200
225
250
150
mm
Installing to a pipe whose diameter
is not 150mm (6"), 200mm (8"),
250mm (10") and 300mm (12")
Installing on
top of pipe

• To prevent the laser center from being deviated from
the target center, position the bubbles of the digital
level vial on the TP-L6W and those of the circular
level vial on the target at the center.
• When the pipe diameter is one of 150mm (6"),
200mm (8"), 250mm (10") and 300mm (12"), use a
self-centering feet exclusively for each diameter.
