泰智科技
Shenzhen Topwisdom Technology Co., Ltd
9
TH TL WP GND
1 3 4 5 62
Laser
Power
Supply
Active Low
LPWM L-ON WP GND
IN
5V
Water
Potect
+5V

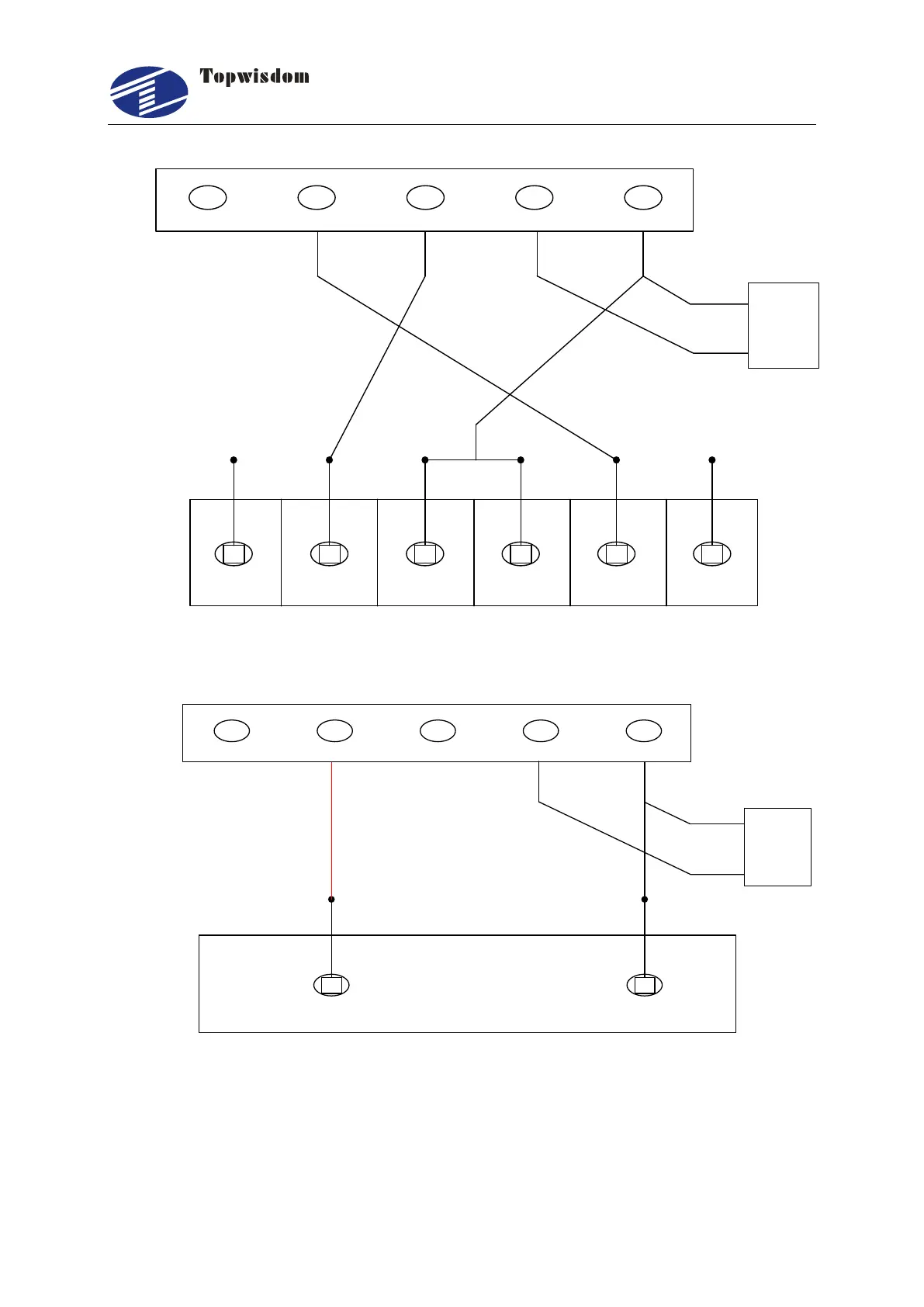

2. RF Laser Wiring
Power
Laser
Power
Supply
GND
Water
Potect
LPWM L-ON WP GND+5V
Note：When "RF or RF (Pre-ignition)" is selected, please set the PWM Frequency
according to the data sheet of the laser. Generally, PWM Frequency is 5000Hz. And set
the Laser Max parameter not larger than 95%, especially not to set as 100%, otherwise
it works improperly.
