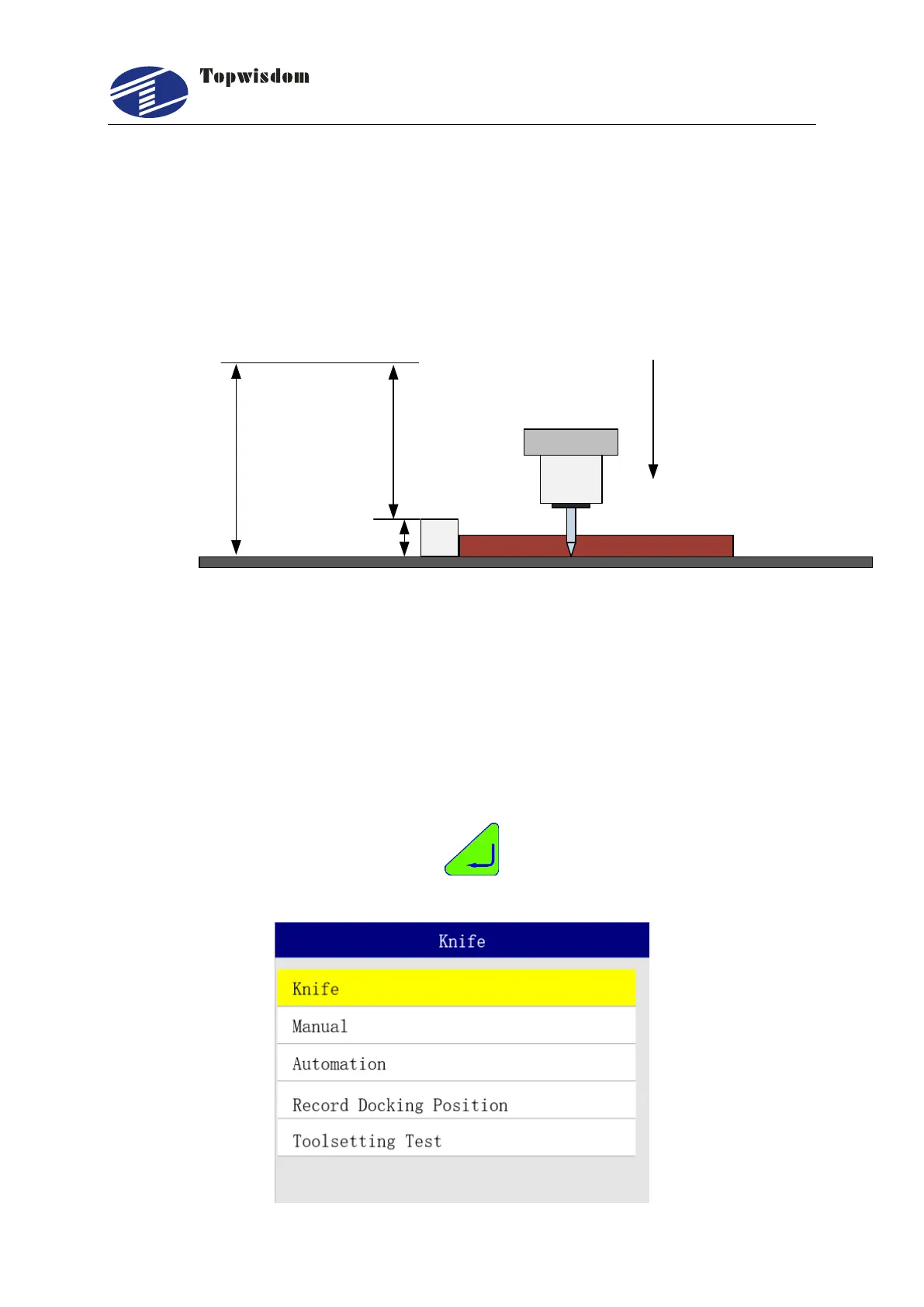

6. Assume that the height of the presetting block is H = 10 mm, then the head presetting
position is SZ = S1 + H = 50 + 10 = 60 mm. The presetting position is range from the
bottom of the material to the Set Point. When working, the rotary cutting heads
automatically drop to a position of 60mm to perform the cutting. As shown:
Presetting
Block
Work Table
Origin
S1 = 50mm
Material
Cutting
Head
Block Height
H = 10mm
Presetting
Position
SZ = S1+H =
50+10 = 60mm
Working
7. After the head presetting is completed, select "Knife / Toolsettings Test" to test whether it
is correct (same as step 4 of Manual Head Presetting).
Note that when testing, remove the cutting heads away from the presetting blocks,
otherwise they will hit onto the blocks.
4.4 Spindle and Pressure Feeding Roller Control
In the standby interface, press "Enter" key , and select "Knife” to enter the control
interface.
