Presetting
Block
Work Table
Origin
S1 = 50mm
Material
Cutting Head
Presetting Block
Height H = 10mm

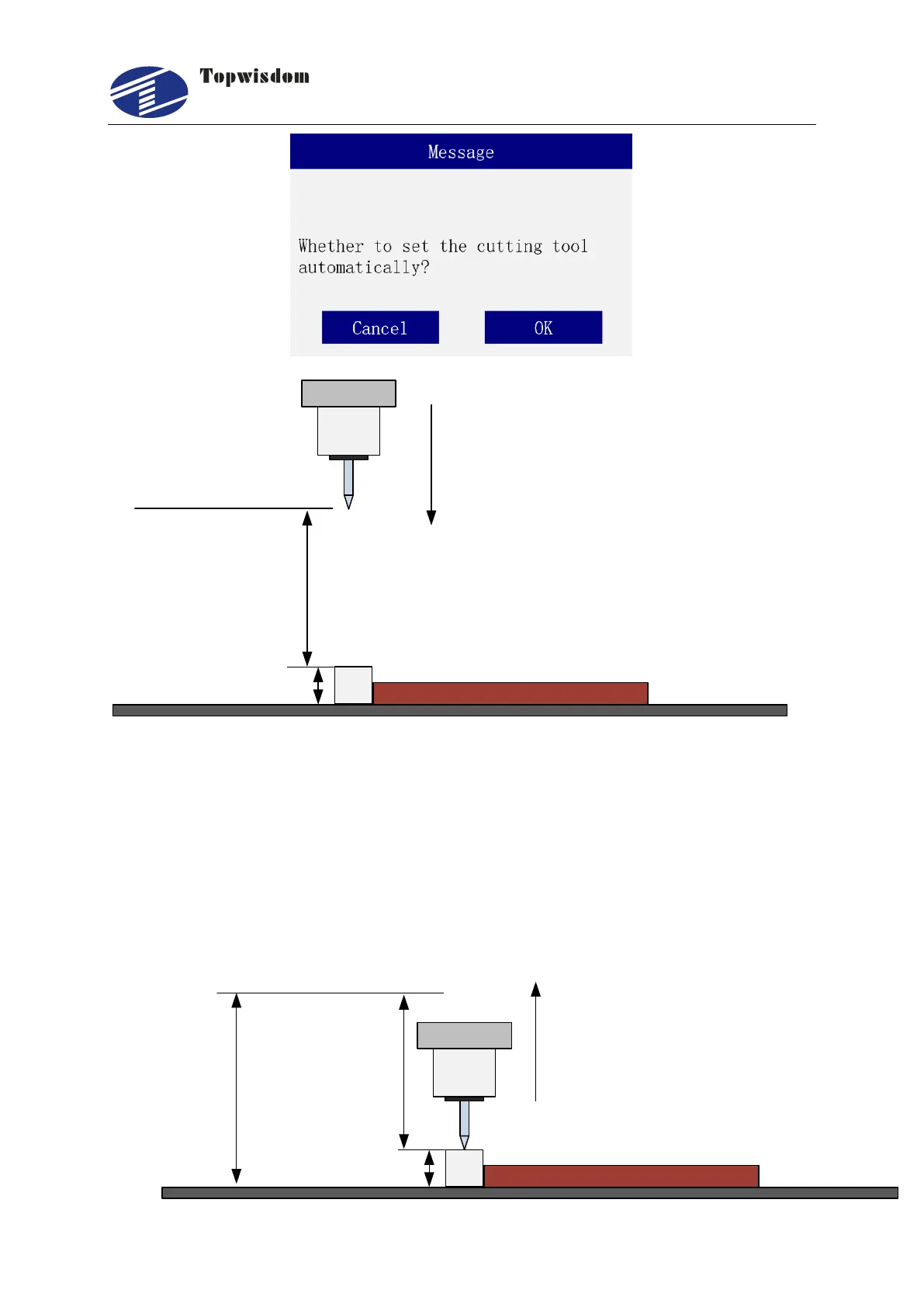

5. When the cutting head touches the presetting block, it stops and records the current
coordinate of Z axis, as shown in the figure, S1 = 50mm. At this time, the actual head
presetting position SZ = S1 + H (the position where hitting the presetting block + the
height of the presetting block) Record and save. In the end, the rotary cutting heads return
to the Set Point. So, the automatic head presetting is completed.
Presetting
Block
Work Table
Origin
Material
Cutting Head
Block Height
H = 10mm
S1 = 50mm
Presetting
Position
SZ = S1+H =
50+10 = 60mm
