mode is positive electrode, the laser power will slowly increase as the Y axis moves away
from the origin. When compensated as negative electrode, the laser power will slowly
decrease as the Y axis moves away from the origin.
9. Y Compensation (%): set the power intensity to be compensated for the laser head to
move from the origin position to the Y-direction maximum width.
10. On Delay (ms): The delay time for laser on at the beginning. If the opening delay
parameter is set too large, the starting segment will not be closed.
11. Off Delay (ms): The delay time of laser turn-off at the end. Setting appropriate off-light
delay parameters can remove the non-closing phenomenon when cutting is finished.
12. Focus Length (mm): change the focus length for AutoFocus. When this parameter is set,
press "Enter" in standby interface and select "Focus", a message box will pop up showing
that whether reset focus length. If press “Enter”, the laser head will go down and be
controlled by U Axis. When sensors are close to the material surface and reach the
designated position, a signal is output to controller, and then it controls the laser head
move up to the focus position.
Attention: if laser type is RF or RF (Pre-ignition), set the PWM Frequency to 5000, Laser
Max Duty Ratio to 95%, not to 100%, otherwise the laser would always be on or off.

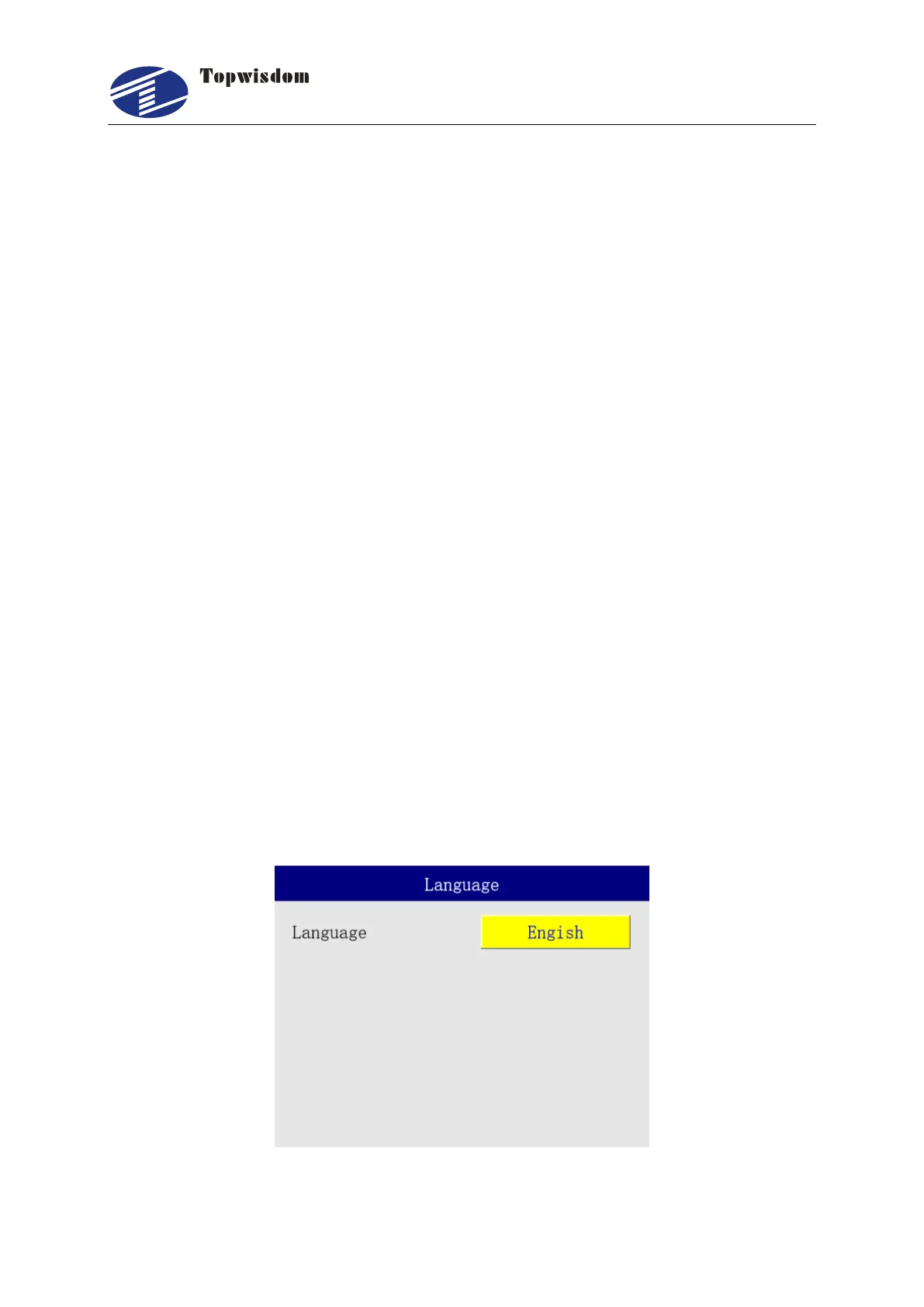

3.2.18 Language
In the Main Menu interface, select "Language": switch between the displayed languages:
Chinese, English, Traditional Chinese, Korean, Russian, Italian, Spanish, Portuguese,
Vietnamese and etc.
