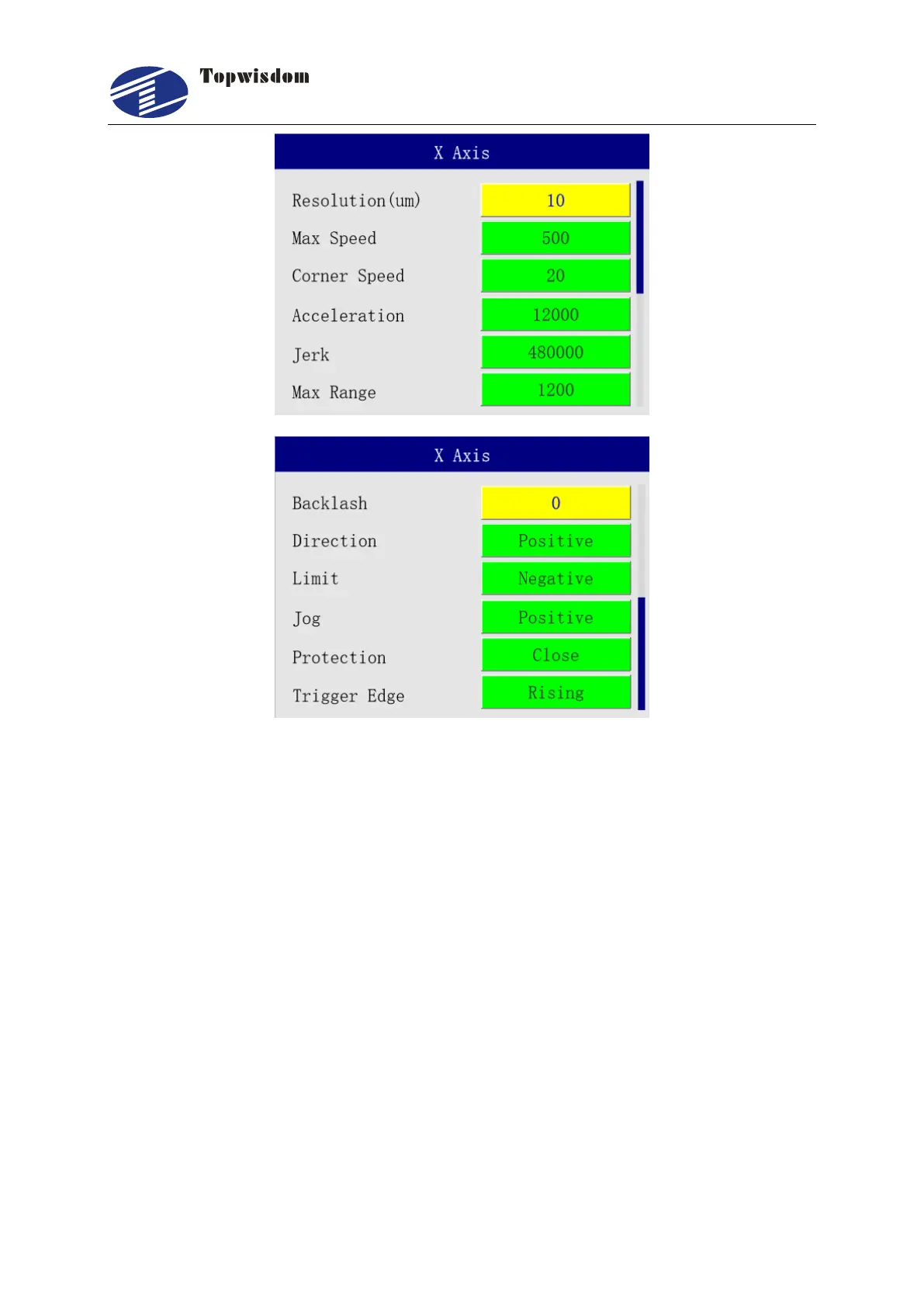

1. Resolution: Resolution = Length that the laser head moves when the motor rotates
for one cycle×1000 / Pulses that the driver output when the motor rotates for one
cycle. Press the “Menu” button here to leave the input box for Set Value and Actual
Value. The Set Value is displayed on the machine. The Actual Value needs to be
measured by the ruler. Press the key to move the laser head, input the corresponding
lengths into the options. Press "OK", the system automatically calculates the correct
resolution.
About measurement:
The user can draw a rectangle, so that the side length of the rectangle can be measured
to calculate the resolution, and the diagonal of the rectangle can also be measured to
check whether the beam is perpendicular to the trolley. When measuring, the width of
the laser beam should be considered, that is, the machine actually draws two rectangles
when drawing rectangles, and the user measures the lengths of the two rectangles
respectively when measuring, and the average value of the two lengths is the actual
To Next Page
