Tormatic B-1200 - Installation and Assembly; Safety information for installation and assembly; Drive and accessories

46-EN
3 Product description
3.1 General product overview
4
1
17
7
9
10
8
11
20
13
3
12
16b
16a

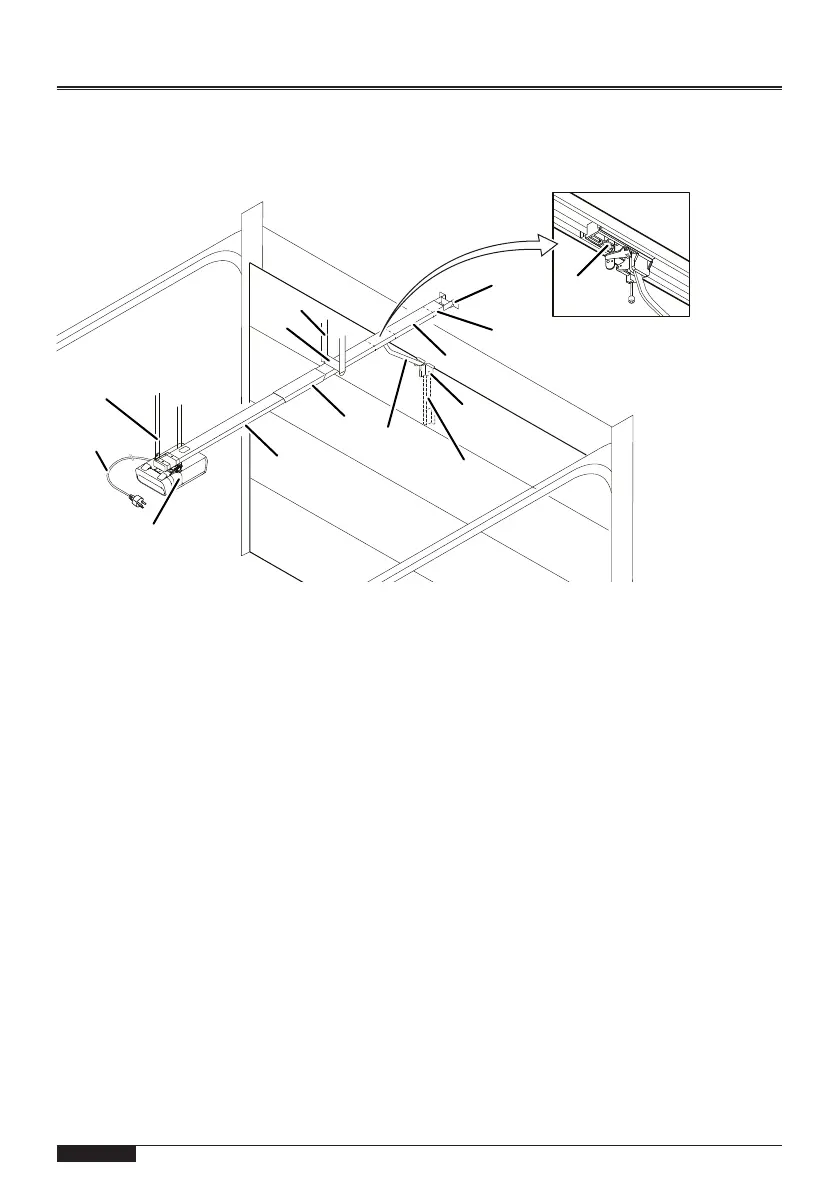

Fig.1: Product overview
1. Drive head including LED module 11. Door connector attachment
3. Rail (model example) drive side 12. Linking bar
4. Carriage 13. Central support
7. Rail connector (model example) 16a. Ceiling mountings on drive head
8. Rail (model example) door side 16b. Support straps track
9. Tensioner 17. Mains cable, 1.2 m
10. Wall bracket 20. Telescopic fitting for sectional doors
(accessory)
