4.3 Scope of delivery
The scope of delivery is determined by the product configuration. It usually com-
prises the following:
WARNUNG: Automatisches Tor - Nicht im Bewegungsbereich des
Tores aufhalten, da sich das Tor unerwartet in Bewegung setzen kann!
WARNING: Automatic door - The door may operate unexpectedly,
therefore do not allow anything/anyone to stay in the path of the door!
Automatic Door
4x
1x
2x
1x
1x
1x1x
1x
1x
1x
1x
1
12
18
6
4
5
2
9
3
7
8
16
14
17
15
19
11 13 10

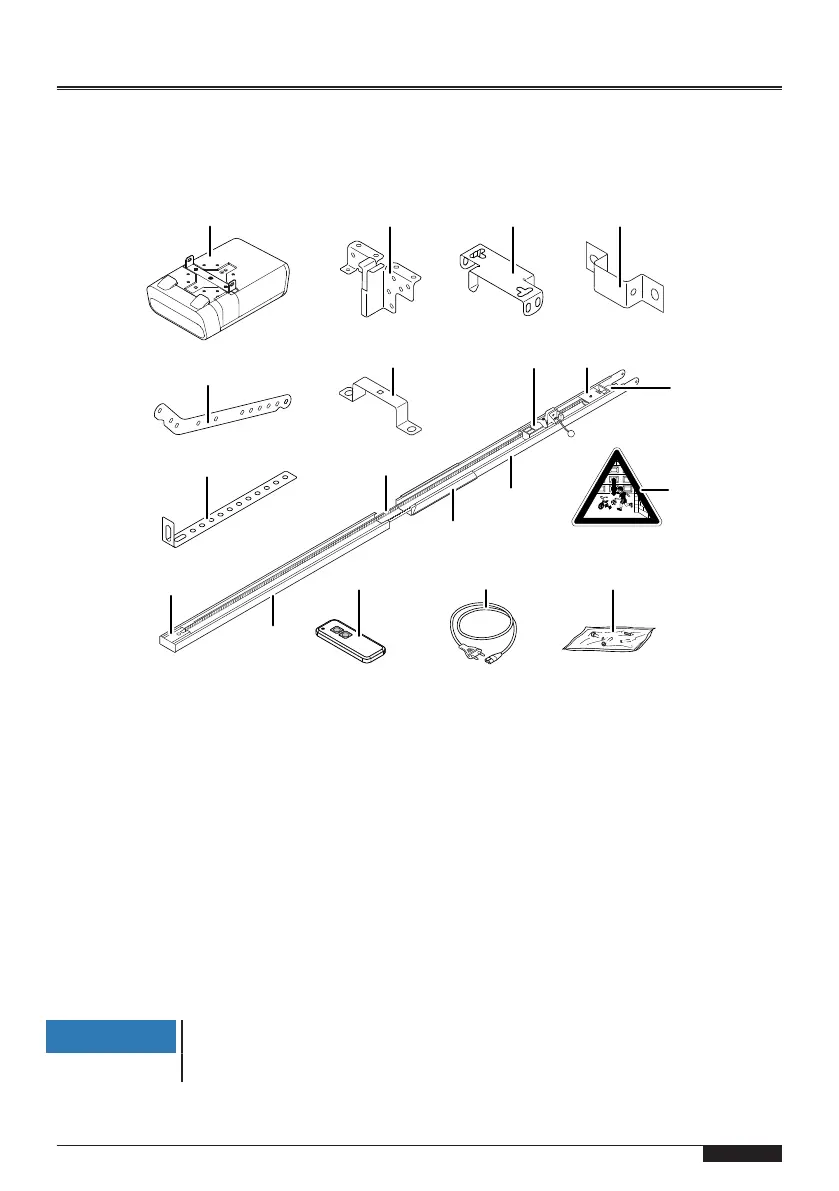

Fig.4: Scope of delivery
1. Drive head including LED module 11. Door connector attachment
2. Pinion* 12. Linking bar
3. Rail (model example) drive side 13. Central support
4. Carriage* 14. Bag of screws
5. Toothed belt or chain* 15. Handheld transmitter (depending on the
model)*
6. Deflection roller* 16. Ceiling mounting
7. Rail connector (model example)* 17. Mains cable, 1.2 m length
8. Rail (model example) door side* 18. Mounting bracket
9. Tensioner* 19. Warning label
10. Wall bracket*
*Optional
NOTICE
Check the supplied screws and wall plugs to make sure that they
are suitable for the structural condition on the installation site.
