Tormatic B-1200 - Scope of delivery

EN-47
3.2 Technical data
General
Max. cyclestotal:
50000
Max. door size: 17 m
2
Lighting LED:
1.6 W
Max. weight: 200kg(sectional door)/
280kg
Safety according to EN13849-1
Model specifications
Input STOPA:
Cat. 2 / PLC
Control unit: B-1200
Input STOPB:
Cat. 2 / PLC
Operating mode: Pulsed operation,
remote-controlled
Temperature range:
-20 °C
+60 °C
Drive type: B-1200
Rated load capacity: 300 N
Max. load capacity: 1000 N
Protection class:
IP20, for dry rooms only
Power supply: 230 V / 50Hz
Sound level:
< 70 dBA
Power input
Manufacturer:
Novoferm tormatic GmbH
Standby: < 4 W Eisenhüttenweg 6
Max. operation: 410 W 44145 Dortmund
Max. cycles/ hours: 3 Germany
Max. cycles/ day: 30 www.tormatic.de
3.3 Rating plate
The rating plate is located at the drive head. Observe the power supply specifica-
tions.
3.4 Control elements
1
15
A
D
B
C
A1

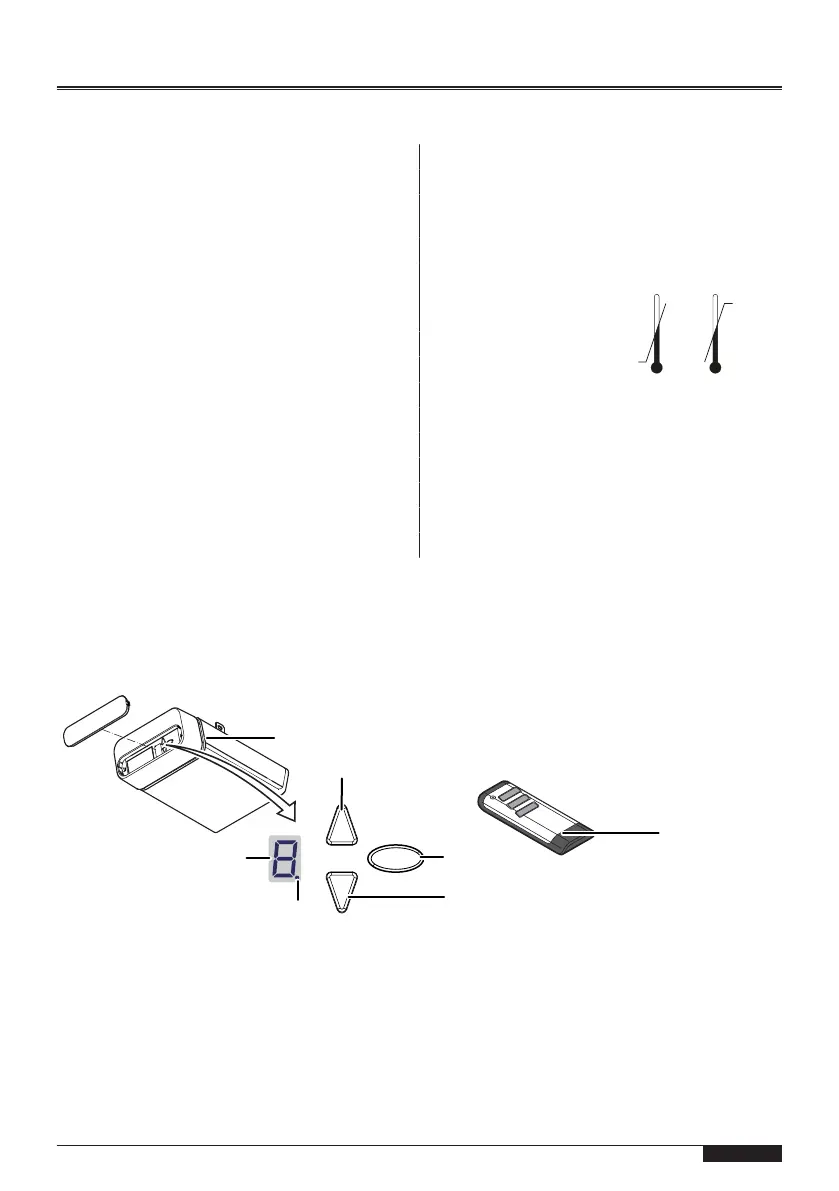

Fig.2: Control elements
A. Numerical display (A1 digital point) B. OPEN / Start button
C. CLOSE button D. Program button (PROG button)
1. Drive head 15. Hand transmitter
