11

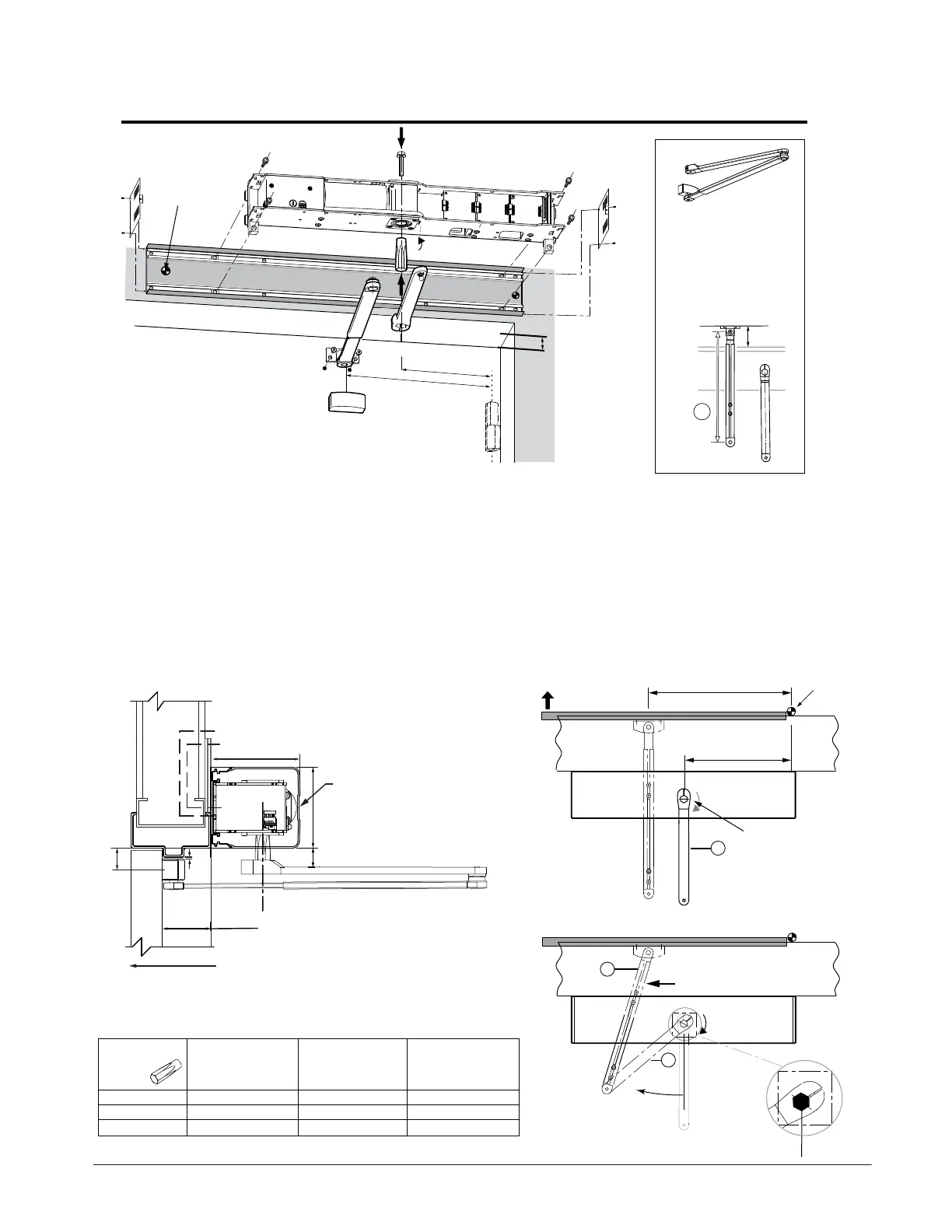

Outswing - Low Energy 8 - 10 lbs Spring Holding Force
1) Determine the handing of the operator according to
the door. Note that arrow on operator indicates
opening direction of rotation.
2) Locate & mark output shaft location 12-3/16” from
CL of hinge onto door frame
3) Align header at the bottom of the door frame as shown
below.
4) Secure header to the wall with appropriate hardware.
5) For Stainless Steel Arm refer to illustration on page 13
for mounting dimensions.
6) Locate and mount door arm attachment bracket to the
door at Y dimension for shaft used and 14-1/4” from CL of
hinge as shown below.
7) Insert shaft/ drive arm (6) into the operator perpendicular to the
door as shown below. Tighten shaft bolt to 25 ft/ lbs.
8) Manually rotate drive arm (8) as shown below 40°-45°, check
connection point of the two arms to determine how much of the
door portion arm (7) may need to be shortened and/ or cut
off to connect the two arms.
9) Proceed to page 12 to perform commissioning.
1 Push Arm P/N: 408368
0 - 4-
3/16” Reveal
11.41 in. (290 mm)
2 Push Arm P/N: 408369
4-
1/8” - 9-7/8” Reveal
13.77 in. (350 mm)
Part No.
141032 (STD)
141106 (D.E.)
141205
Shaft Length
3-
7/32” (82mm)
3-
15/16” (100mm)
4-
27/32” (123mm)
X
1-
1/16” (27mm)
1-25/32” (45mm)
2-
11/16” (68mm)
Y
1-
7/16” (36mm)
2-5/32” (55mm)
3-
1/16” (78mm)
X: Clearance required (distance bottom of header to top of arm)
Y: Distance between bottom of header back plate and centerline
of door mounting shoe
For extended reveals contact TORMAX
14-1/4” [362]
CL
Hinge
6
7
8
Header
Wall
Tighten shaft bolt
on top of operator
to 25 ft/lbs.
12-3/16” [310]
NOTE: The door portion arm may need to
be shortened and/ or cut off to
connect the two arms.
SWING
DOOR
SWING DIRECTION
TORMAX
1102, 1201
OPERATOR
Access Cover
Y
C
L
5" [127]
4 - 9/16" [116]
X
Electrical
Controls
Reveal distance is
from the face of the
to the rear of the
Operator 0” - 9-7/8”
(0 - 251)
1/8"
[3]
Standard Aluminum Arm
CL
Hinge
14-
1/4
” [362]
12-
3/16
” [310]
Mounting Height
Preferred
Primary
Power
Header
backplate
1,2
Reveal Dim.
Rotate Drive Arm
(8) 40° - 45°
To Next Page
