13

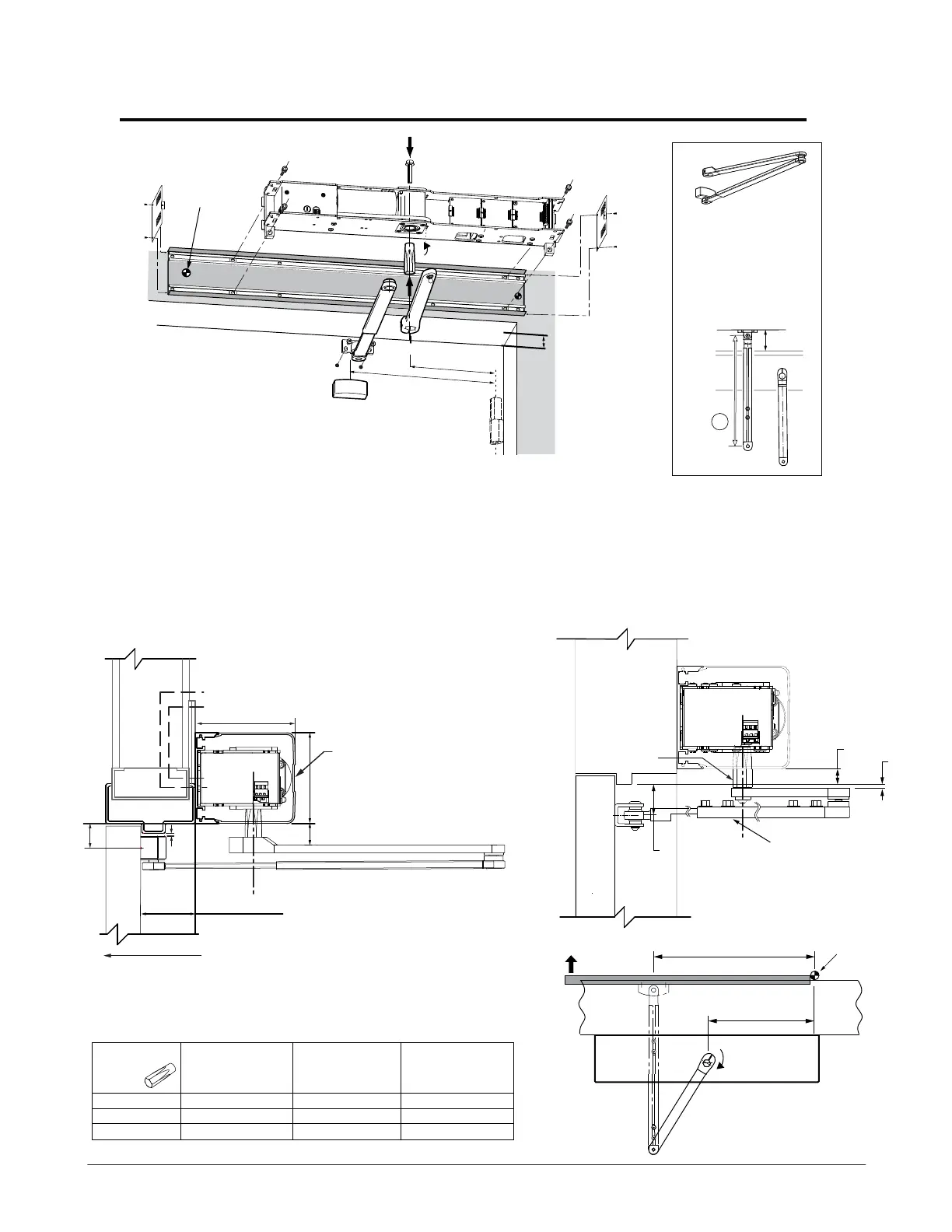

Outswing Full Pedestrian 18 - 20 lbs Spring Holding Force
1) Determine the handing of the operator according to
the door. Note that arrow on operator indicates
opening direction of rotation.
2) Locate & mark output shaft location 12-3/16” from
CL of hinge onto door frame
3) Align header at the bottom of the door frame and CL
of the shaft location as shown below.
4) Secure header to the wall with appropriate hardware.
5) Locate and mount door arm attachment bracket to the
door at Y dimension for shaft used and 16-1/8” from CL of
hinge as shown below.
6) Insert shaft/ drive arm into the operator, leave shaft bolt loose
until appropriate step during commissioning procedure.
7) Proceed to page 14 to perform commissioning.
12-
3/16
” [310]
1 Push Arm P/N: 408368
0 - 4-
3/16” Reveal
11.41 in. (290 mm)
2 Push Arm P/N: 408369
4-
1/8” - 9-7/8” Reveal
13.77 in. (350 mm)
CL
Hinge
16-
1/8
” [410]
Mounting Height
16-1/8” [410]
CL
Hinge
Header
Wall
12-3/16” [310]
Preferred
Primary
Power
Part No.
141032 (STD)
141106 (D.E.)
141205
Shaft Length
3-
7/32” (82mm)
3-
15/16” (100mm)
4-
27/32” (123mm)
X
1-
1/16” (27mm)
1-
25/32” (45mm)
2-
11/16” (68mm)
Y
1-
7/16” (36mm)
2-
5/32” (55mm)
3-
1/16” (78mm)
X: Clearance required (distance bottom of header to top of arm)
Y: Distance between bottom of header back plate and centerline of door
mounting shoe
For extended reveals contact TORMAX
SWING
DOOR
SWING DIRECTION
TORMAX
1102, 1201
OPERATOR
Access Cover
Y
C
L
5" [127]
4 - 9/16" [116]
X
Electrical
Controls
Reveal distance is
from the face of the
to the rear of the
Operator 0” - 9-7/8”
(0 - 251)
1/8"
[3]
1-3/8" [35]
11/16" [17]
3/16" [5]
TORMAX
1102, 1201
OPERATOR
S.S. Shaft
PT# US801966
S.S. 0 - 4-3/16” Reveal
Outswing Arm PT# US801983
Standard Aluminum Arm
Stainless Steel Arm
SWING
DOOR
C
L
Header
backplate
1,2
Reveal Dim.
