Tormax 1201 Installation And Service Manual

Programming with the FCP - Overview
www.tormaxusa.com

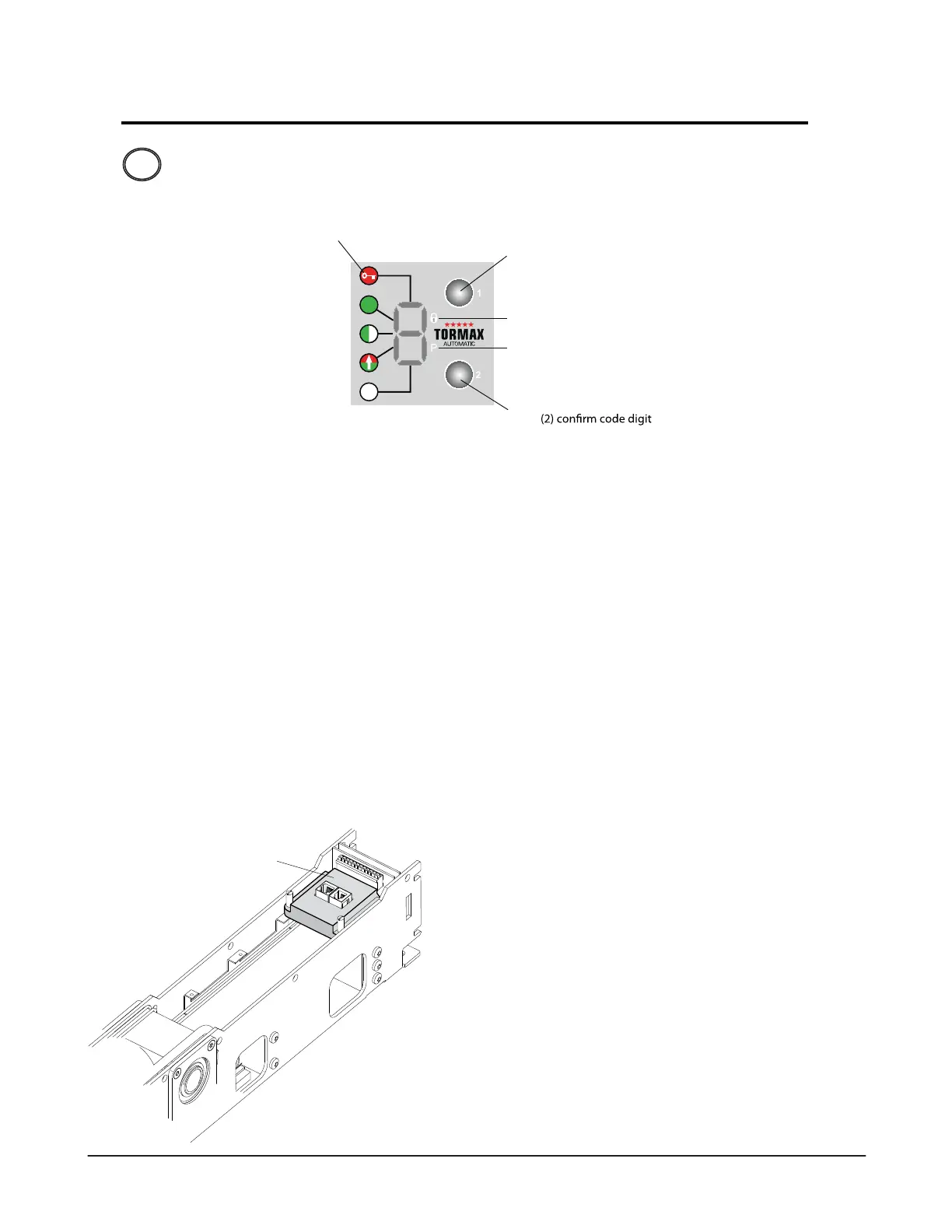

The Functional Control Panel (FCP) has 2 function levels:
Level 1 - End user
- Select operating modes
- Display three-digit fault codes.
- Access protected eliminates
unauthorized programming.
Symbols for
Operating Modes
Key (1) increase value
of code (0....9)
Key
OR
selects operating mode
Electric lock
output indicator
Mode P
Manual Operation
OFF
AUTOMATIC
REDUCED OPEN
OPEN
EXIT
OR
selects operating mode
Level 2 - AAADM Certified Technician
- “U” = User readable parameter - allows
technician to read specific parameters.
See programming chart for parameters.
- Access protection, access code (111)
- Programming door system to comply
with the current ANSI A156.10 or
ANSI A156.19 standard.
- Displays currently set parameter.
- 10 min time out after the last programming
entry is made. The technician will be required
to enter the access code (111) to make
further adjustments.
Programming with the Functional Control Panel (FCP) refer to T1757 in Technical Specification
section requires at least one of the following modules to be installed PIM shown below refer
to T1691 or EDM T1638.
!
26
PIM
MODULE
T1691_1
