30

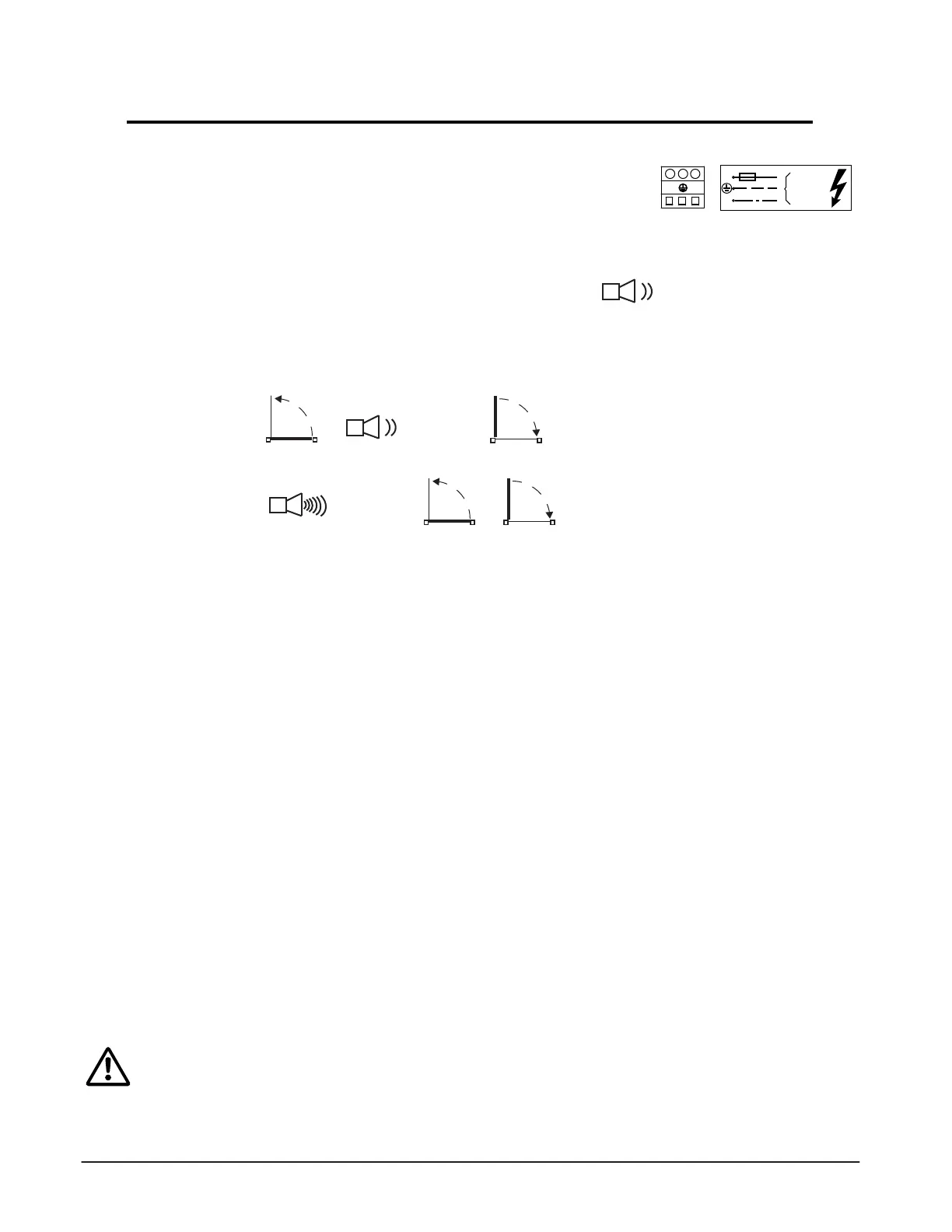

Commissioning with FCP
Commissioning
1. Apply primary power to the operator, for pair of doors apply power
to the Primary operator first, then to the Secondary operator.
2. Commissioning - Enter Code 021 Start commissioning, for pairs complete primary operator
sequence first.
3. Door will automatically open and hold open at 20 degrees.
4. Exit Preload - Enter Code 020 door closes.
5. Door will automatically begin opening until the open door stop is reached, door will
immediately close.(Checking door weight/ momentum)
6. Escalating 6 tones will occur before door begins opening. (Door mounted safety sensor
inhibiting)
7. For pair applications, repeat sequence for secondary operator, begin at step 2. Primary
operator will go to the open position until commissioning is completed.
Additional Adjustments
Additional adjustments may need to be made after commissioning. Listed below are the most
common adjustments. For additional adjustments refer to the Programming Charts.
*Hold open time = Code 10?
*Push-N-Go OFF = Code 860
*Close Check Force OFF = Code 320
**Power Close for Lock Release ON = Code 581
**Delay Time to Open = Code 591
Power Pulse when Opening = Code 43? Over come wind stack pressure
*Double egress/ simultanious pairs = Code 830
Turn OFF delayed activation of secondary operator for pair applications.
Detecting/ mask out safety functions details on page 31 = Code 023
Power Assist in AUTO ON = Code 862
Power Assist Hold open Time = Code 150
Repeat commissioning without system values details on page 31.
On-Board Button = Code 6
* Adjustments have been changed by entering Country code 7.
** Adjustment 591 needs to be made in conjunction with 581.
Testing
Test the door in accordance with ANSI A156.19 Power Assist and Low Energy Power Operated Doors or
ANSI A156.10 Power Operated Pedestrian Doors standards before putting the door into service and handing
it over to the End-User.
10AT
L1
N
115 V~
50/60 Hz
L1
N
2 Audible Tones
2 Audible Tones
6 Audible Tones This ends the programming step.
