Drive type TORMAX 1201 Swing Door Drive
Drive system Electro-mechanical drive with DC-motor, extensible with modules, spring activated
closing or opening.
Control System MCU42
Door leaf width and mass 28” – 56”, up to 551 lbs. according to diagram
Opening angle 70 ° … 110 ° max.
Speed 5 °… 60 °/s max.
Mains connection 230/115 V AC, 50/60 Hz
Dimensions 3-11/32” x 5-3/64” x 25-13/64”
2 leaves with mechanical door coordinator: 100 × 135 × door width
Power consumption 3 … 200 W
Automatic reset in the event of a
power failure
In the closing an
d opening direction; capable of an infinitely variable setting: 60–
100 % of maximum force according to DIN 1154 corresponds to closer parameter
4-6 with the linkage pushing and closer parameter 3 when the linkage is pulling.
Protective class IP 20
Ambient temperature – 68 … 122° F
Weight: 26 lbs
Emitted noise level < 70 dBA
Sensor supply 24 VDC (+0.5–1.5 V) Pmax. 36 W, Imax. 1.5 A
Inputs 24 VDC or potential-free (Multi Door Module MDM-A)
Outputs Holding magnet 24 VDC, < 0.25 A (Exterior Door Module EDM)
Bell 24 VDC, < 1 A, (Exterior Do
or Module EDM)
El. door opener 24 VDC, < 1 A, (Exterior Door Module EDM)
Potential-free 24 VDC, < 1 A, (Multi Door Module MDM-A)
Test-out 24 VDC, < 1 A, (Power Door Module PDM)
Interfaces CAN for double door and air lock (MDM-A/MDM-B)
RS232 for Skipper (EDM, Programming Interface Module PIM)
RS485 (MDM-A)
LIN-Bus (EDM, Programming Interface Module PIM))
Approvals and standards CE
EN 16005 (TÜV)
UL 325
UL 228
EN 61000-6-2, EN 61000-6-3, EN 60335-1
Durability DIN 18650 (TÜV) – 1 Million test cycles at
4000
cycles per day
573
529
485
440
396
352
308
264
220
176
132
88
44
0
28 32

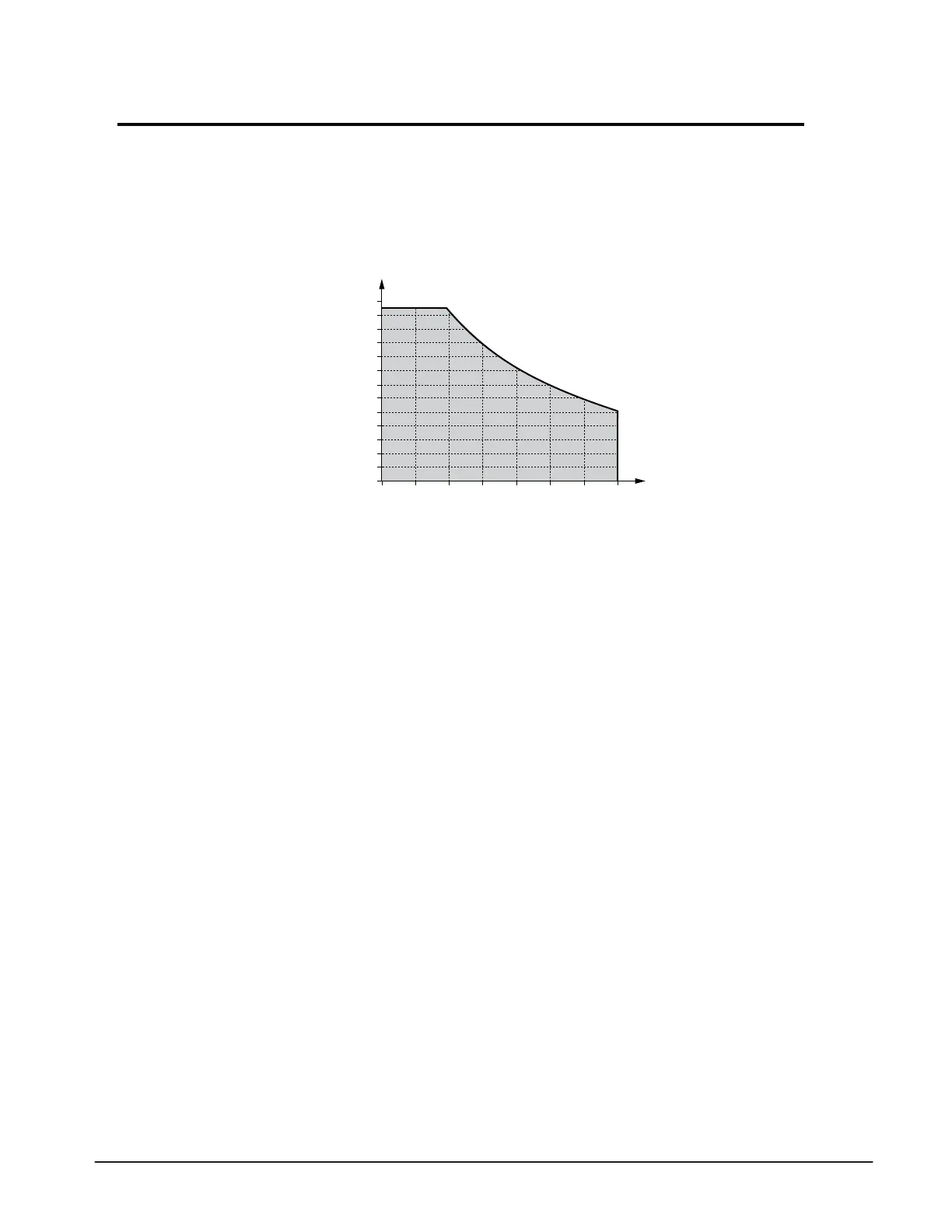

Door leaf width [inches]
Door leaf mass [lbs.]
36 40 44 5248 56
T1633_1e
TECHNICAL SPECIFICATIONS
T-1633e 1201 Technical Information
