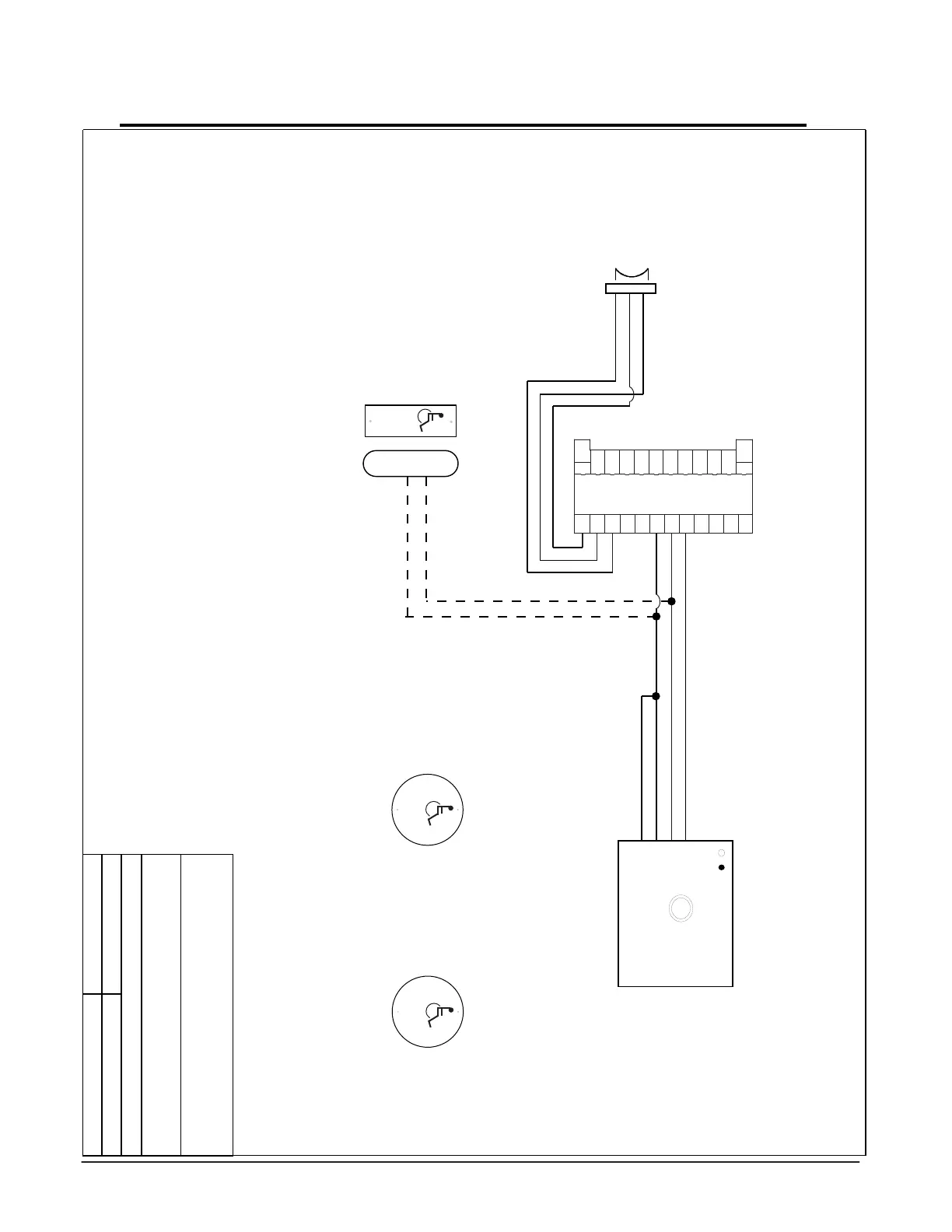

Connection Diagram
NOTE:
1) Enter the Country Code (OBC=7/1) or (FCP=031) as this will limit/ reduce your opening and closing speeds,
forces, turns Push n Go function OFF and sets Hold Open time to 5 seconds.
2) To make additional adjustments an FCP - Functional Control Panel will be needed.
3) Adjust operator to be in accordance with ANSI A156.19
4) Refer to Larco Ultra-Small Receiver Installation Guide for proper setup and adjustments.
Drawn by:
Jerry Morgan
Title:
1201/ 1102 Single with Larco 433 Activation
Date: 8/29/17
Drawing #: 1201002 Revision #: 02
Revised by: GDM
TORMAX USA Inc.
12859 Wetmore Rd. San Antonio, Tx 78247
Larco 433
Ultra Small Receiver
BLACK
BROWN / WHITE
RED
ORANGE
A
12
11
10
9
8
7
6
5
4
3
2
1
OFF
3 Position Switch
OFF / AUTO / HOLD OPEN
H/O
GND 12
GND
GND
GND 1
IN1
IN2
IN3
IN4
24V
24V
24V
OUT1
PUSH
TO OPEN
PUSH
TO OPEN
Interior
Transmitter
Exterior
Transmitter
1102/ 1201 Basic
Board (BDM)
RED
WHITE
BLUE
OPTIONAL
Jamb
Switch
Common
NO
PUSH
TO
OPEN
PUSH
TO
OPEN
To Next Page
