21

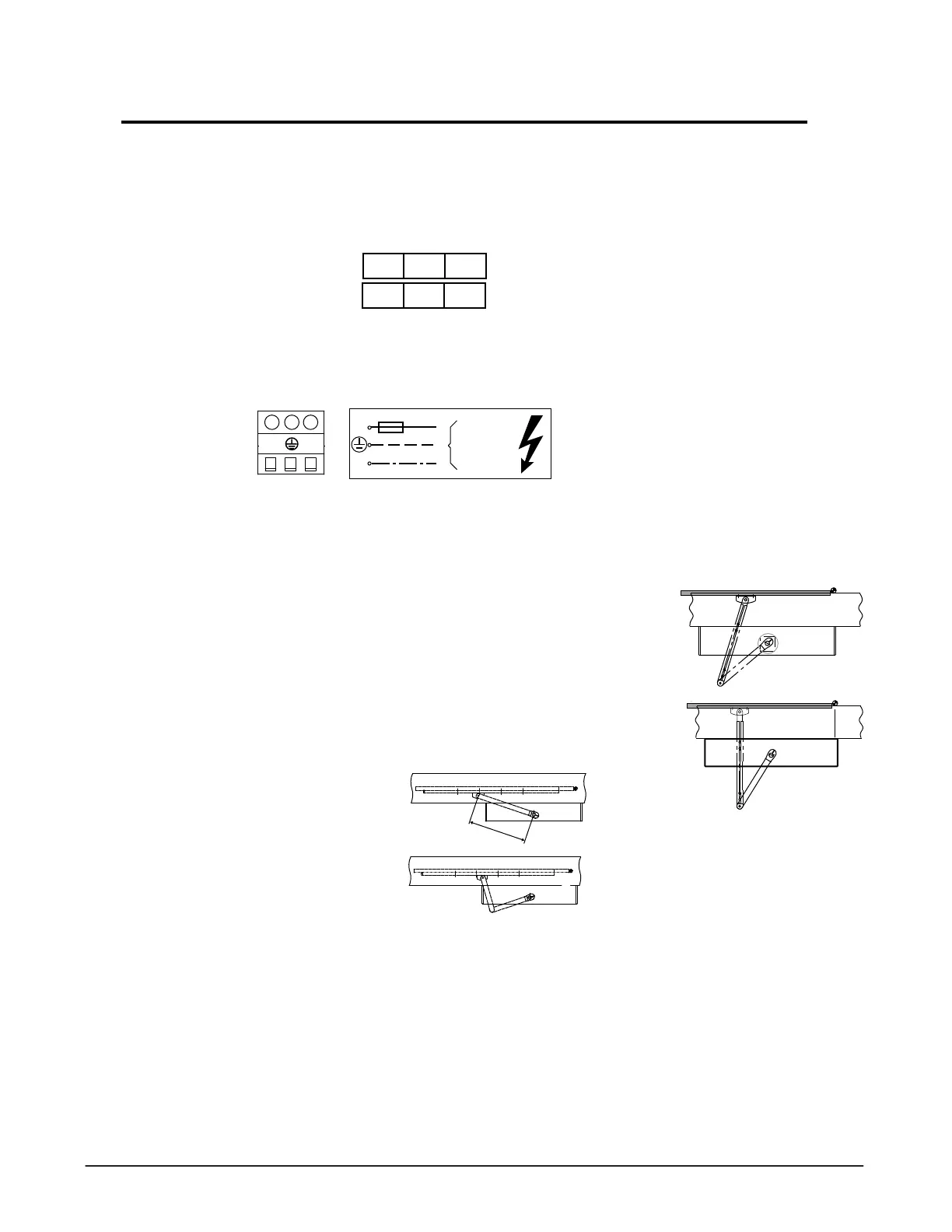

Pair & Double Egress Application Commissioning
Requirements for Both Operator
1. An MDM module Installed in both operators along with optional modules (PIM, EDM, PDM)
prior to start-up. Refer to Technical Specifications section.
2. Refer to application’s commissioning page to determine shaft condition. (loose or secured)
3. Determine system values based on the illustrations on page 10.
Commissioning
2. Commissioning sequence - Perform Commissioning of Primary operator first,
then perform Commissioning of Secondary operator.
3. Refer to the applications Commissioning page:
Outswing 8-10 lbs. Spring Holding force (Low Energy) -
Refer to page 11 for securing the Shaft & Arm position,
Page 12 for commissioning
Outswing 14- 15 lbs. Spring Holding Force (Full Power) - Page14
Inswing 0” Reveal - Page 16
Inswing 0-6” Reveal - Page 18
4. Adjustments:
Double egress/ simultanious pairs - Turn OFF delayed activation of secondary operator =
Code 830
Frequently used adjustments are listed on page 23
1. Connect primary power 120vAC to Primary operator first, then the Secondary
operator this will configure the operators (Primary/ Secondary).
10AT
L1
N
115 V~
50/60 Hz
L1
N
Primary
Secondary
A
B
To Next Page
