Page 8 – 19
(Rev. B)

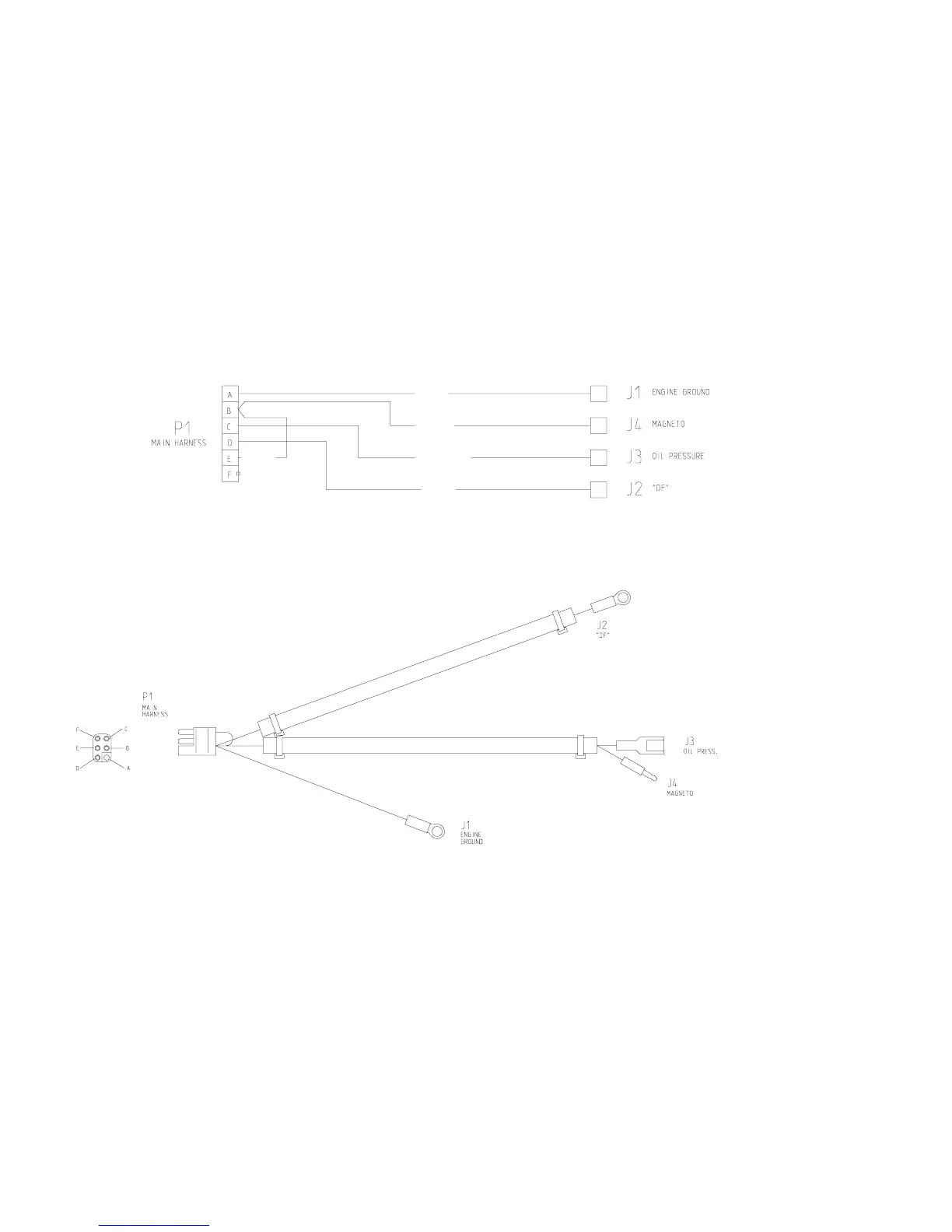

Engine Electrical Harness Drawing
Workman 1100
and Wiring Diagram
BROWN
BROWN
WHITE/BLUE
BLACK
GREEN
(Serial Number From 220000001 To 230999999)
