Page 8 – 20
(Rev. B)

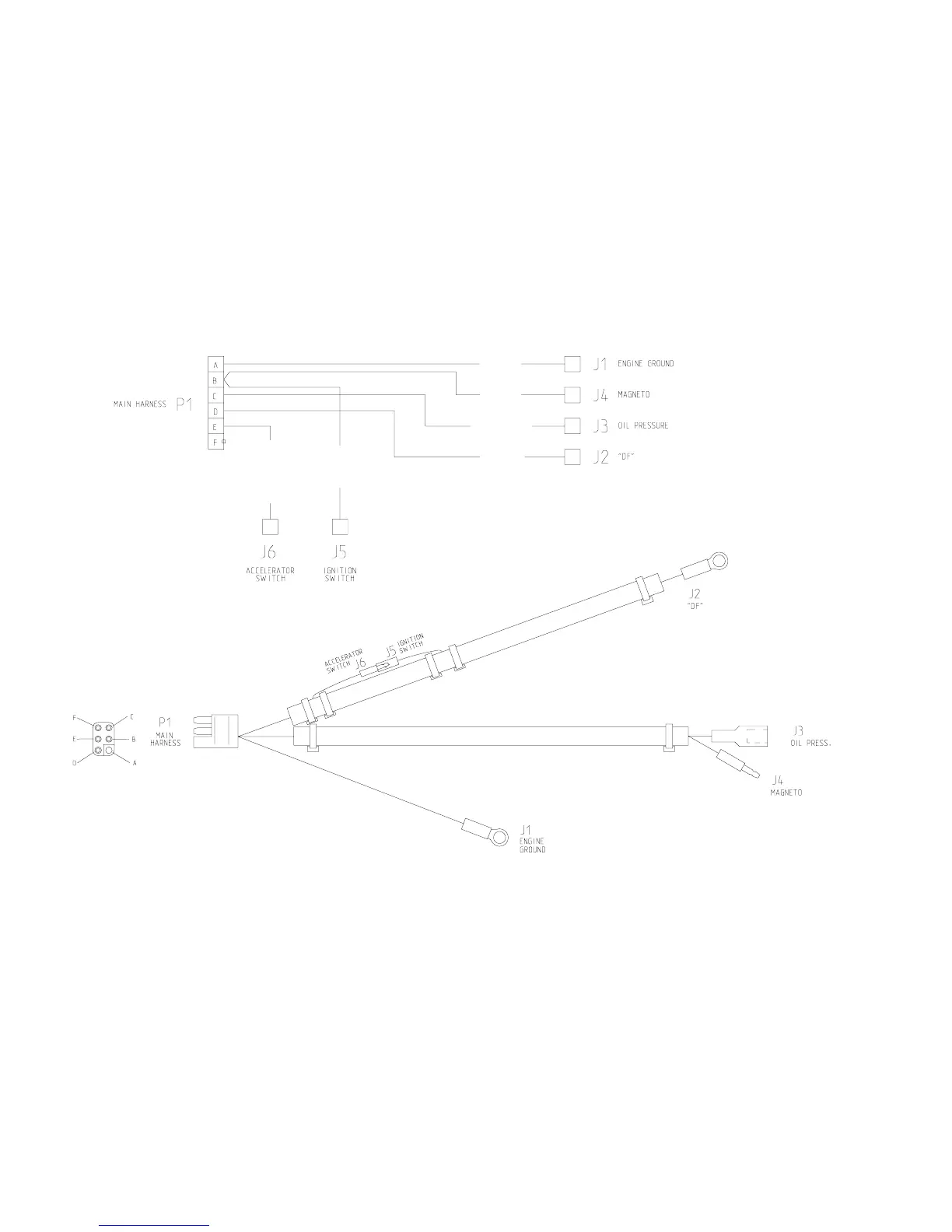

Engine Electrical Harness Drawing
Workman 1100 and 1110
and Wiring Diagram
(Serial Number Over 240000000)
BROWN
BROWN
WHITE/BLUE
BLACK
GREEN
BROWN/WHITE
