Workman 1100/2100/2110
Drive Train
Page 5 – 30

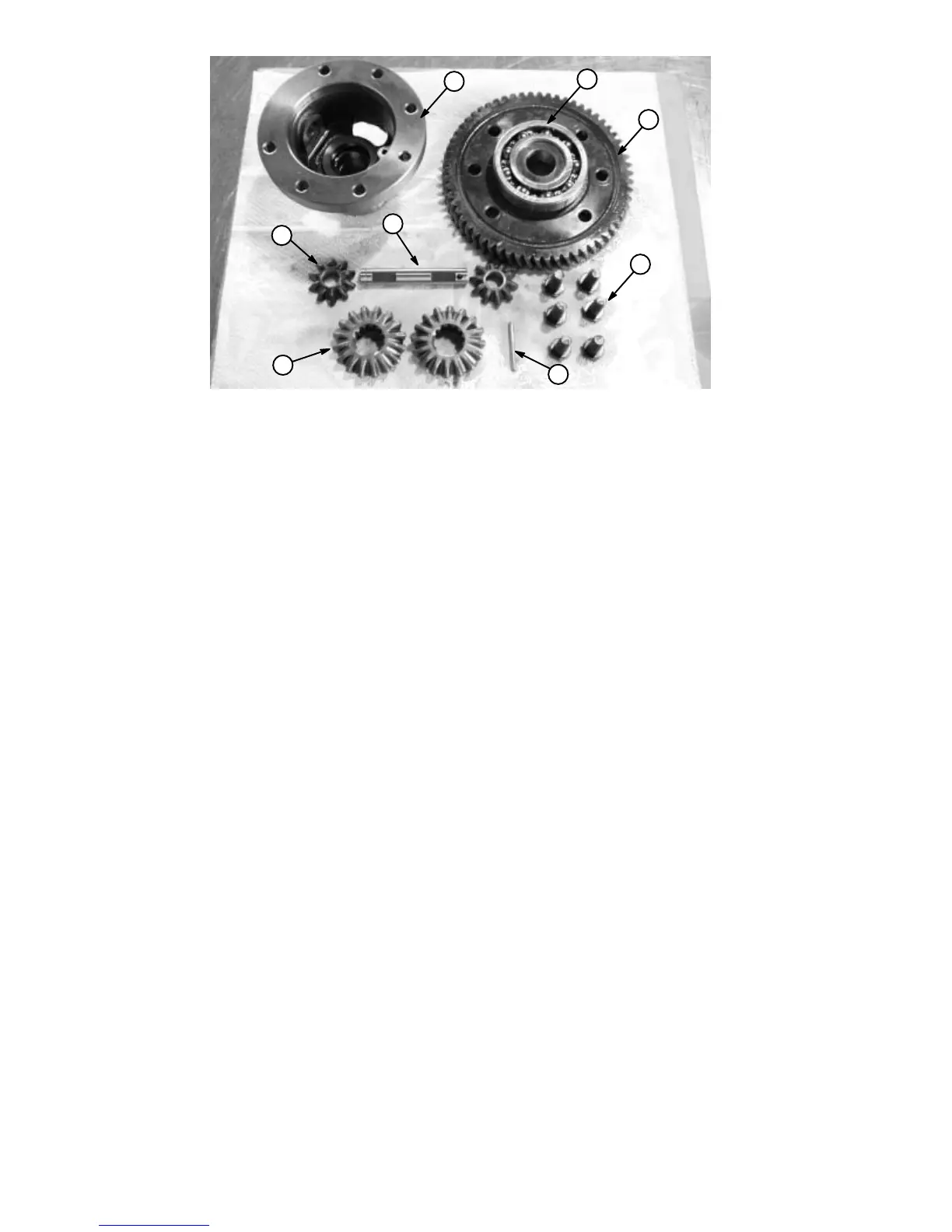

1. Side gear
2. Pinion gear
3. Gear 34
4. Ball bearing
5. Differential case
6. Pinion shaft
7. Spring pin
8. Bolt
Figure 47
3
8
7
4
5
6
2
1
D. Replace gears if worn or damaged. Cracked, bro-
ken, missing, or chipped gear teeth are not accept-
able.
E. Ball bearing roller balls must be free of deforma-
tion and scoring. Ball bearing must spin freely and
have minimum axial play. Replace ball bearing as
necessary.
F. Replace case if machined areas where the side
and pinion gears mesh are scored or if the pinion
shaft fits loosely in its bore.
G. Replace pinion shaft if cracked or bent.
H. Replace oil seal if cracked, nicked, or distorted
such that it would not hold a proper seal.
